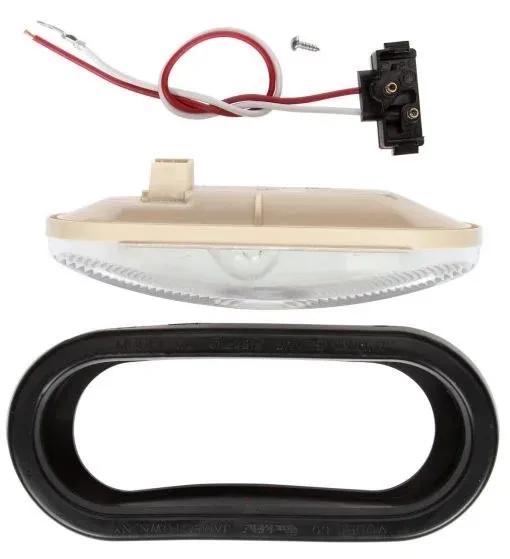

Back-Up Light, Clear, Oval, Le: 6-3/8 in
#TRL60092C
Product Overview
60 Series, Economy, Incandescent, Clear Oval, 1 Bulb, Back-Up Light, Black Grommet Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Sonically sealed lens and housing
- Shock-mounted bulb to extend life
- Legal mounted horizontally or vertically
- Only one lamp required to meet federal lighting regulations
- Not recommended for dome lamp use
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 2.1 amp |
| Color | White |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp Kit |
| Depth | 2-1/8 in (5.41 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94992 |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 2 |
| Lamp Type | Sealed |
| Length | 6-3/8 in (16.21 cm) |
| Lens Height | 2-17/64 in (5.77 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 6-1/2 in (16.51 cm) |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Back-Up Light |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-003-074 |
| Volt | 12V |
| Weight | 0.4 lb (0.18 kg) |
| Width | 6-3/8 in (16.21 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 60092C |
| 813435 |
| 841360092C |
| TL60092C |
| TLD60092C |
| TRU60092C |
| 130853400 |
| 215 |
| 60092 |
| 60092CTLT |
| 8413-60092C |
| LIT60092C |
| TL 60092C |
| TL 60092C |
| KT3260W |
