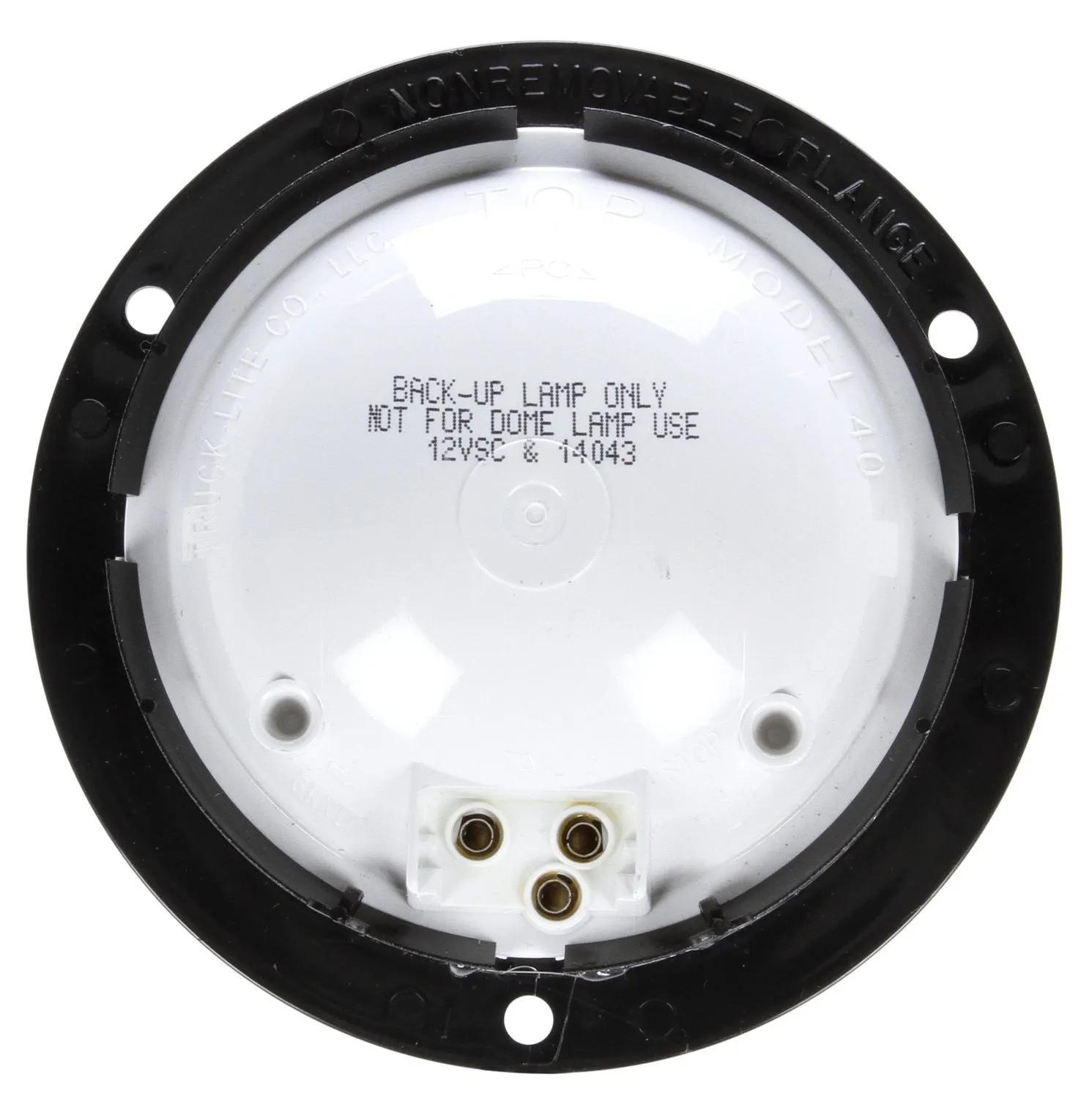

Back-Up Light, Clear, Round, Le: 5-1/2 in
#TRL40262
Product Overview
40 Series, Incandescent, Clear Round, 1 Bulb, Back-Up Light, Black Flange Mount, PL-2, 12V
Features & Benefits
- Polycarbonate lens and housing are sonically sealed
- Bulb is shock mounted for extended life
- Legal only for back-up function
- Not recommended for dome lamp use
- Replaces Signal-Stat 4041W and 4047W
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 2.1 amp |
| Color | White |
| Common Size | 4 in (10.16 cm) |
| Contents | Lamp |
| Depth | 2-5/32 in (5.49 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94992 |
| Height | 5-9/32 in (13.41 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| # Lamp Prongs | 2 |
| Lamp Type | Sealed |
| Length | 5-1/2 in (13.97 cm) |
| Lens Height | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 4-5/16 in (10.95 cm) |
| Material | ABS |
| Mount Type | Flange Mount |
| Plug Side Two | No Plug |
| Product Type | Back-Up Light |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-003-074 |
| Volt | 12V |
| Weight | 0.2 lb (0.09 kg) |
| Width | 5-9/32 in (13.41 cm) |
Interchanges & Equivalent parts:
| HT50602475 |
| TL402624 |
| TLD40262 |
| 16512666 |
| 16513757 |
| 40262 |
| 8413-40262 |
| LIT40262 |
| TL 40262 |
| TL 40262 |
| TL40262 |
| 62421 |
| SEF4000W-1 |
