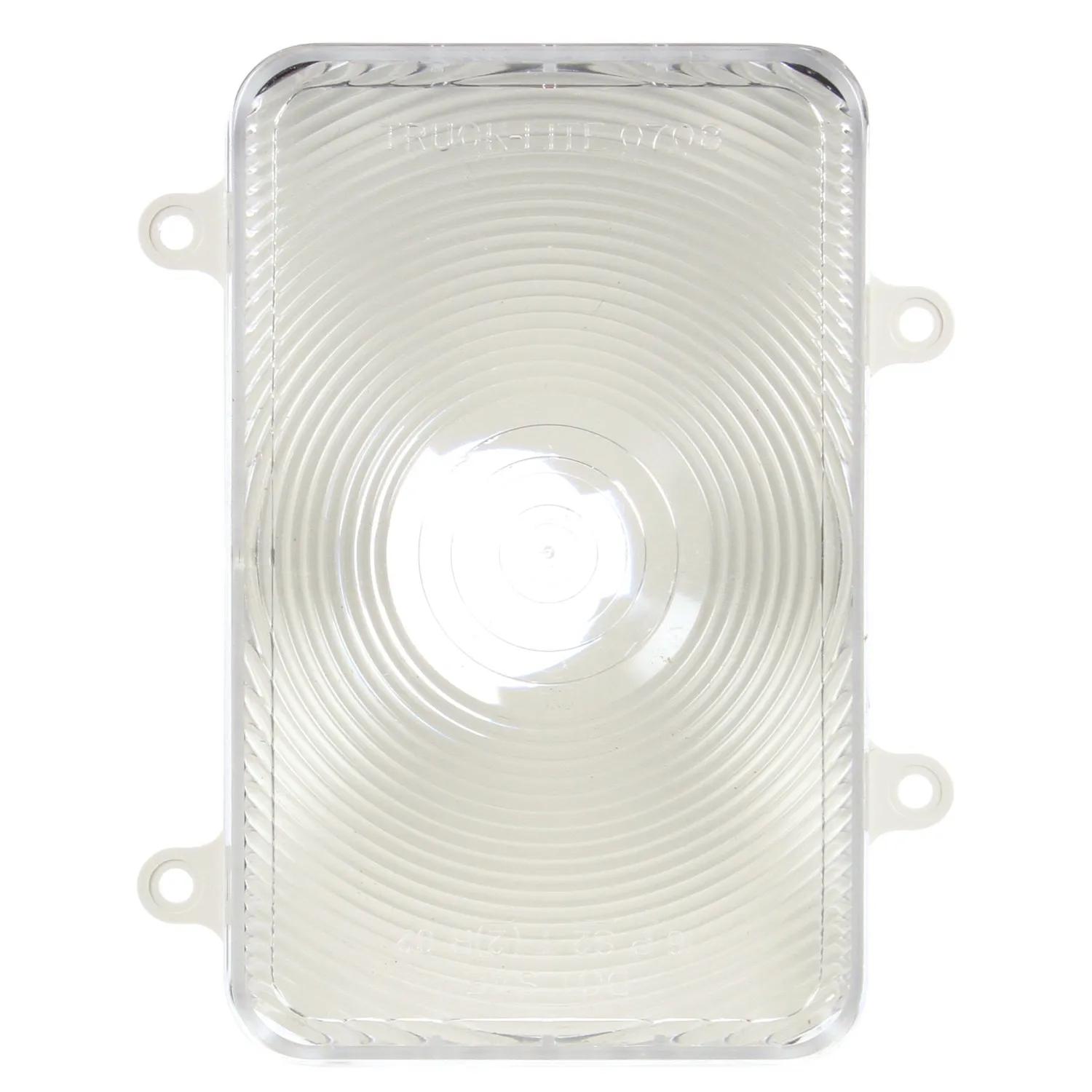

Back-Up Light, Rectangular, Le: 6-31/64 in
#TRL07096C
Product Overview
Incandescent, Clear Rectangular, 1 Bulb, Back-Up Light, 4 Screw Bracket Mount, Socket Assembly
Features & Benefits
- Recess Mounts Using 2 Screws at 3.0" Centers & 2 at 4.2" Centers.
- Designed at 12.8 Volts, 2.10 Amp & 32 Candlepower.
- Recess mounts using two screws at 30"
- centers and two screws at 42"
- centers
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Color | White |
| Common Size | 4 in (10.16 cm) |
| Contents | Lamp |
| Depth | 2-1/32 in (5.16 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-7/32 in (13.26 cm) |
| Housing Color | White |
| Incandescent Lamp(s) Available | 07082C (Sealed) |
| Kit (Y/N) | No |
| # Lamp Prongs | 2 |
| Lamp Type | Bulb Replaceable |
| Length | 6-31/64 in (16.46 cm) |
| Lens Height | 4-1/16 in (10.31 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 6-7/16 in (16.36 cm) |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Plug Side Two | No Plug |
| Product Type | Back-Up Light |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-003-074 |
| Volt | 12V |
| Weight | 2 lb (0.91 kg) |
| Width | 6-29/64 in (16.38 cm) |
Interchanges & Equivalent parts:
| 07096C |
| TL07096 |
| 7096 |
| 07096 |
| 8413-07096C |
| LIT07096C |
| TL 07096C |
| TL 07096C |
| TL07096C |
| TLD07096C |
| 190120 |
