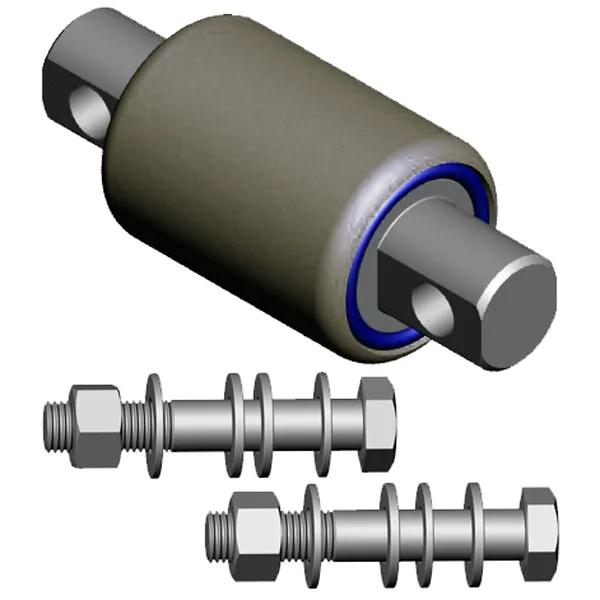

Bar Pin Bushing Kit, 4-3/8 in Outer Diameter, For RS, RT, HN, HAULMAAX® Suspension
#ATREB50-21013
Features & Benefits
- Polyurethane - resistant to chemicals
- Rotating inner pin for easy install
- Automatically zeroes out to ride height
- Remove old bushing from beam
- Press new bushing into beam with PT50-21013 installation tool (or equivalent)
- Install beam, using 4 spacer washers (thick) for spacing and/or alignment between bar pin bracket as needed
- Use 4 flat washers (thin) outside of bracket for bracket to bolt head and bracket to nut
- Includes: (1) bar pin bushing, (2) bolts, (2) nuts, (4) shims, (4) washers
Specifications
| Application | Gaff 13607, Dayton Parts 334-830, Dayton Parts 334-830U, Dayton Parts 334-831, Dayton Parts 334-831UHendrickson 34013-087L, Mack 34013-088, Hendrickson 34013-088L, Hendrickson 34013-87, Hendrickson 3401388, Hendrickson 50150000, Hendrickson 50160000, Gaff 83596, Batco 9-2258, Batco 9-5529, Automann BP198, Automann BP198HE, Automann BP198UB, Flagg BP87, Flagg BP88, Dyco D-407, Dyco D407, Euclid E-9325, Euclid E-9326, International HD50150000, Freightliner HDR 50150 000, International HUD50150000, Arvin Meritor R309325, Arvin Meritor R309326, International ZAK50150, Suspension |
| Height | 7-19/64 in |
| Install Tool | PT50-21013 |
| Large Outer Diameter (in.) | 4-3/8 in (11.13 cm) |
| Length | 5-45/64 in |
| Material | Polyurethane |
| Qty Per Vehicle | 4 |
| Type | Bar Pin |
| UPC | 751354027020 |
| Weight | 23.17 lb (10.51 kg) |
| Width | 12-13/32 in |
| Fits Models | RS, RT, HN, HAULMAAX® |
| Function | Rotating inner pin for easy install |
| Mounting Type | Press fit |
| Outer Diameter | 4-3/8 in |
| Product Category | Bushing Kit |
| Quantity | 4 |
Interchanges & Equivalent parts:
| 334-831U |
| 34013-087L |
| 34013-088L |
| 334-1957 |
| 334-830 |
| 334-830U |
| 334-831 |
| 34013-088 |
| 83596 |
| 9-2258 |
| 9-5529 |
| BP87 |
| BP88 |
| D-407 |
| D407 |
| E-9325 |
| E-9326 |
| HD50150000 |
| HDR 50150 000 |
| HUD50150000 |
| R309325 |
| R309326 |
| ZAK50150 |
| 34013-87 |
| 3401388 |
| 44103 |
| 50150000 |
| 50160000 |
| GAFF13607 |
| GAFF83596 |
| EB50-21013 |
