Battery Cable, SGR Type, 3/0 Gauge, 50 Ft Spool, Black, 100% Copper, 60V Rated
#GRO82-5715
Product Overview

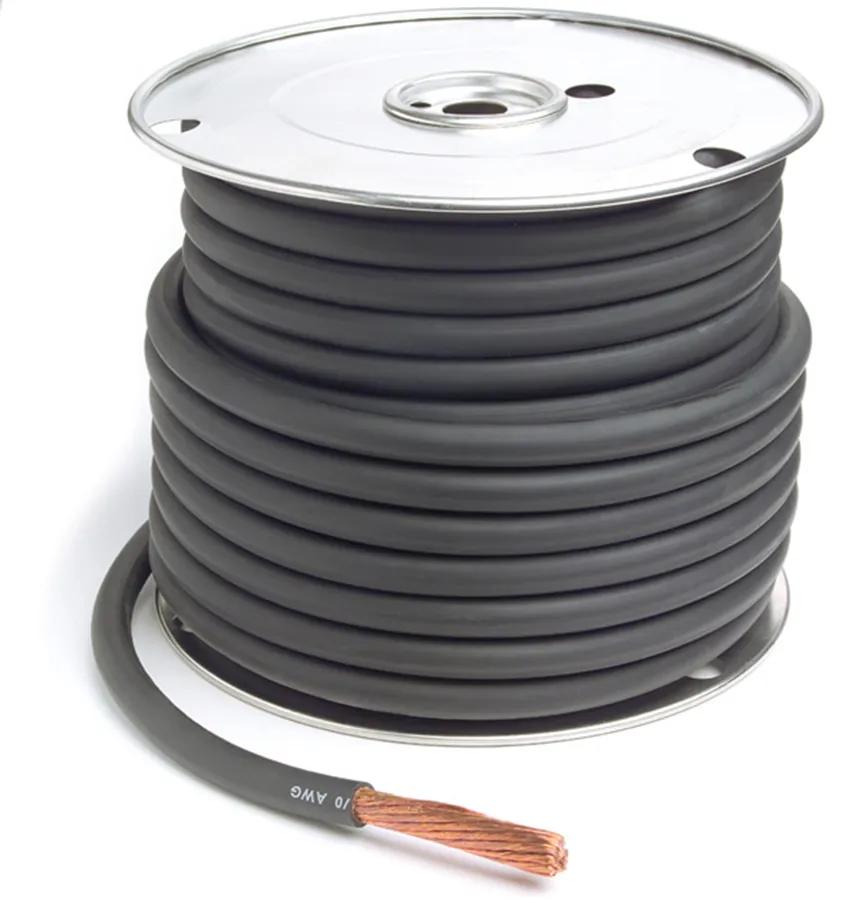

Our Type SGR Bulk Battery Cable is stranded with 100% copper conductor and jacketed in chlorinated polyethylene (CPE). It meets all SAE J1127 specifications and is rated at 60 V. The cable features black insulation with a diameter of 0.700 inches and consists of 1615 strands, providing excellent conductivity and durability.Battery Cable, SGR, Black Insulation, Copper Conductor, EPR Insulation, 3/0 GA Conductor, 0.700 in Dia, SAE J1127 Standards, 1615 Strands, -40 to 105 °C Temperature Rating, 60 V, 50 ft Length
Features & Benefits
- Rated @ 60V
- 100% Copper Cable
- All Battery Cable is spooled
- Meets all SAE code J1127 specifications
- General Purpose Ground Rubber jacket rated at -40°C (-40°F) to 90°C (194°F)
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- 1,000 Foot Custom Sized Spools Also Available by Special Order.
- We Also Offer a Full Line of Lugs, Terminals, Solder Slugs, Heat Shrink, Cutters, Crimpers, and Tie Straps to Custom Make Battery Cables at Your Service Facility.
Specifications
| Application | Battery Cable |
| Length | 50 ft |
| Type | Battery Cables - Type SGR |
| Conductor Material | Copper |
| Conductor Size | 3/0 Gauge |
| Diameter | 0.700 in |
| Insulation Color | Black |
| Insulation Material | Chlorinated Polyethylene (CPE) |
| Number of Conductors | 1 |
| Standards | SAE J1127 |
| Strands | 1615 |
| Temperature Rating | -40°C (-40°F) to 90°C (194°F) |
| Voltage Rating | 60 V |
| Product Category | Battery Cable |
Interchanges & Equivalent parts:
| 3-514 |
| 82-5723 |
| 7376-825715 |
| 82-5715GR0 |
| GRO 82 5715 |
| GRO825715 |
| ZBJ825715 |
| ZBJD825715 |
| 736155 |
| 825715 |
| 825715FT |
| 8098-B |
| 82-5715 |
