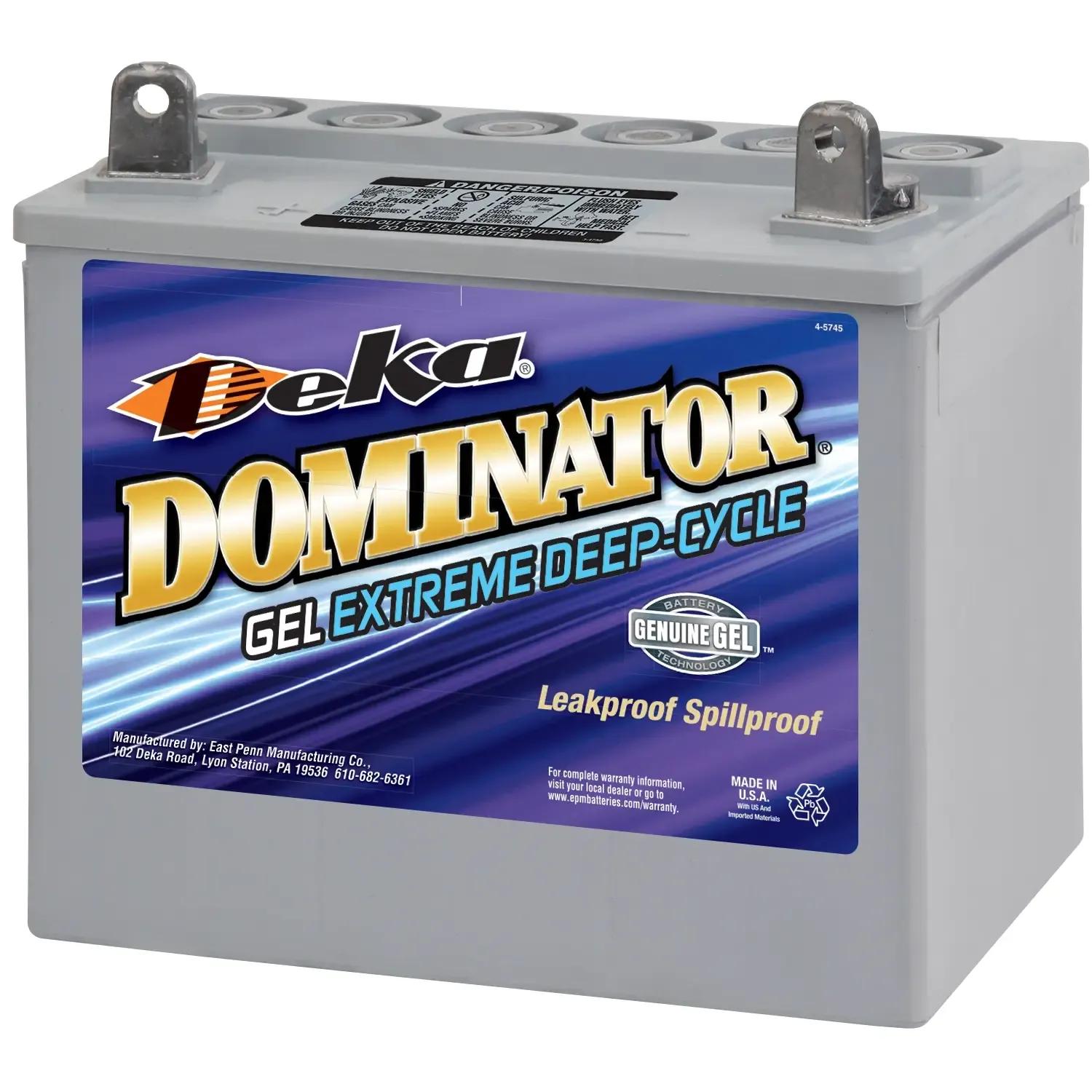

Battery Group U1, Top Post, V: 12, CCA: 200, RC: 44
#HBA8GU1
Product Overview
This 12V gel battery delivers 200 cold cranking amps (CCA) with a sealed, maintenance-free design. It resists vibration and prevents spills, making it ideal for small equipment and renewable energy systems.
Features & Benefits
- Sealed, valve-regulated gelled electrolyte batteries can be transported by air without special containers and have a non-Spillable rating by US Department of Transportation.
- Sealed gel construction prevents dangerous spills, gassing and terminal corrosion for safe use.
- 100% maintenance-free design eliminates the need to check liquid levels or add water.
- Thick consistency of gel and tight-packed plates prevent damaging effects of vibration.
- Small L-terminals have round holes fits one-forth inch bolts.
- Gelled electrolyte construction provides leakproof and spillproof protection for installation in virtually any position.
Specifications
| 100 Amp Hour Rate | 36 |
| 1 Amp Hour Rate | 21 |
| 20 Amp Hour Rate | 31.6 |
| 3 Amp Hour Rate | 25.5 |
| 5 Amp Hour Rate | 26.8 |
| 6 Amp Hour Rate | 28 |
| Battery Application | Starting Lighting Ignition (SLI) |
| Battery BCI # | Group U1 |
| Battery Electrolyte Composition | Gel |
| Battery Posts Type | Top Post |
| Battery Reserve Capacity (Minutes) | 44 |
| Cold Cranking Amps | 200 |
| Contents | (1) Battery Assembly |
| Cranking Amps | 290 |
| Dimensions | 7-3/4 x 5-1/8 x 7-1/4 in |
| Freight Class | 65 |
| Hazardous Material | Yes |
| Height | 7-1/4 in (18.4 cm) |
| Length | 7-3/4 in (19.7 cm) |
| Polarity | Left Positive |
| Post Type | T874 |
| VMRS Code | 032-001-001 |
| Volt | 12V |
| Weight | 51.7 kg (23.5 lbs) |
| Width | 5-1/8 in (13 cm) |
Interchanges & Equivalent parts:
| 8GU1 |
| 8GU1L |
| DB8GU1 |
| SLIGU1 |
| PVU1 |
| GU1 |
| GU16 |
| AGC2 |
| 6VAGM |
| AGM6V |
| ABPA8GU1L |
| GELU1 |
| 6V-AGM |
| 8228 |
| 8228EX |
| AGM 6V |
| EP8GU1 |
| GU1-175 |
| GU1-6 |
| MP-U1GEL |
| PV-U1 |
