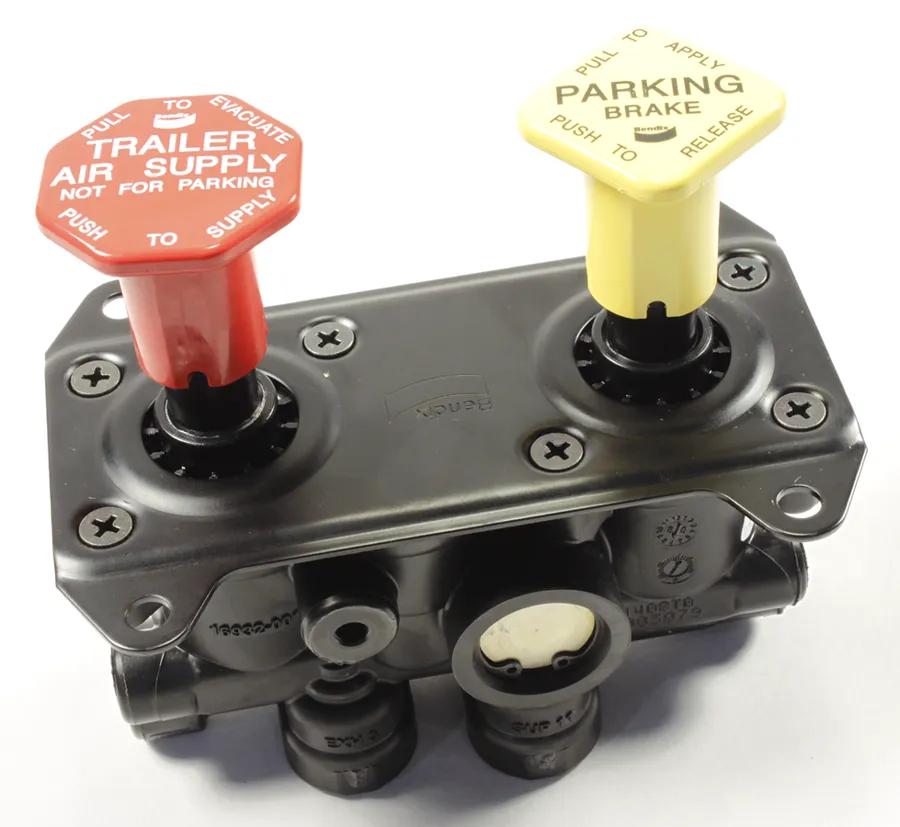

Bendix MV-3 New Control Module Valve with 1/4-18 NPT Ports and 1/8-27 NPT Auxiliary Port
#BEN800518
Product Overview
Dash Valve, 1/4-18 NPT x 1/4-18 NPT Inlet, 1/4-18 NPT x 1/4-18 NPT Outlet, 1/8-27 NPT Port, -40 °F Temperature Rating, 131.6 mm Height, 136.1 mm Length, 92 mm Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Repair Kits Also Available to Alleviate Changing the Entire Manifold Valve Assembly.
- Bendix Has Been A Trusted Manufacturer & Supplier to Most Truck & Trailer O.E.M.s for Decades.
Specifications
| Taille de l'orifice auxiliaire | 1/8-27 NPT |
| Diamètre du trou de boulon | 9/32 po |
| Distance entre les trous de montage | 4,21 po. |
| Taille de l'orifice d'échappement | 1/4-18 NPT |
| Hauteur | 131,6 mm |
| Longueur | 136,1 mm |
| Model | MV-3 |
| Mounting Hole Sizes | (4) trous de 0,27 po. |
| Mounting Orientation | Horizontale |
| New or Remanufactured | Neuf |
| Package Contents | (1) soupape de collecteur par boîte |
| Primary Supply Port (in.) | 1/4-18 NPT |
| Repair Kit # | BEN107216 ou BEN5002741 (kit d'entretien), BEN107217 ou BEN5002742 (kit de navette) |
| Secondary Supply Port | 1/4-18 NPT |
| Tractor Delivery Port Size | 1/4-18 NPT |
| Tractor Trip Pressure | 20-40 psi |
| Trailer Delivery Port Size | 1/4-18 NPT |
| Trailer Override Pressure | 20-30 psi |
| Trailer Trip Pressure | 20-45 psi |
| VMRS Code | 013-010-050 |
| Weight | 1,57 lb (0,71 kg) |
| Width | 92 mm |
| Inlet Size | 1/4-18 NPT x 1/4-18 NPT |
| Outlet Size | 1/4-18 NPT x 1/4-18 NPT |
| Port Size | 1/8-27 NPT |
| Temperature Rating | -40 °F |
| Type | Soupape de module de commande |
| Product Category | Soupape de tableau de bord |
Interchanges & Equivalent parts:
| H800518X |
| 065160 |
| 3098641 |
| 401825 |
| 745-800518 |
| 800518BXW |
| BAN800518 |
| BEN800518 |
| BW 800518 |
| BW 800518 |
| BX800518 |
| TLA800518 |
| TWDBEN800518 |
| TWDH800518X |
| K065157 |
| S-16988 |
| ZAC800518 |
