Low Pressure, ID: 1 in
#GAT85947
Product Overview
Recommended for Low-Pressure Hydraulic Oil Return Lines for General Purpose Water, Glycol Antifreeze Solutions, Conveying Diesel Fuel, Gasoline or Air.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C); Up to +160 Deg F (+ 71 Deg C) for Air.
- Recommended Couplings: GLP, GLX (Sizes 12 & 16), MegaCrimp & Power Crimp (Size 3 Only).
- Meets SAE 30R2 Performance Requirements of Both Type 1 & Type 2 for Fuel & B20 Constant Contact Up to +125 Deg F Biodiesel Fuel Transfer Applications. Meets Flame Resistance Acceptance Designation MSHA 2G.
Specifications
| Color | Black |
| Coupling Recommendation | GLX, MegaCrimp |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 16 |
| Industrial Description | 16RLAX25FT |
| Inside Diameter | 1 in (2.54 cm) |
| Inside Diameter 1 (in) | 1 in (2.54 cm) |
| Length | 25 ft (7.62 m) |
| Maximum Pressure | 160 psi (11.03 bar) |
| Minimum Burst Pressure (PSI) | 640 psi (44.13 bar) |
| Outside Diameter | 1-11/32 in (3.4 cm) |

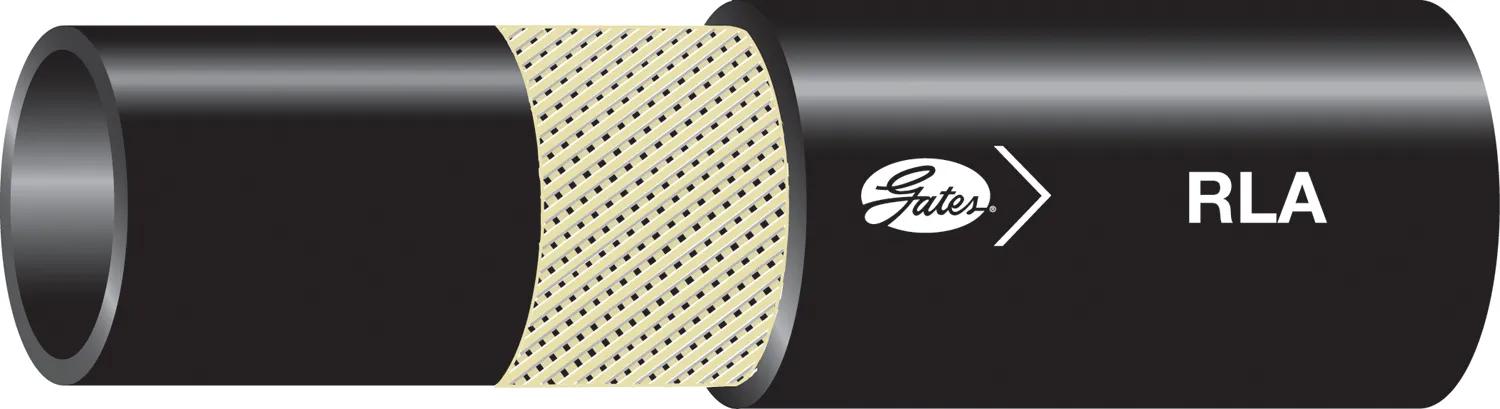

| Product Type | RLA 1-Fiber Braid Return Line & Low Pressure Hose |
| Radius | 8 in (20.32 cm) |
| Reinforcement | Spiral Braid |
| Standard | SAE 30R2 |
| Temperature Range | -40°F @ 212°F, @ 160°F (Air) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Low Pressure |
| Vacuum Rating | 10 inhg (4.92 psi) |
Interchanges & Equivalent parts:
| 011716 |
| 11716 |
| 85947 |
| 16RLAX25FT |
| 04030290 |
| 16RLA30R2X25FT |
| 32844181 |
