Low Pressure, ID: 3/8 in
#GAT85943
Product Overview
Recommended for Low-Pressure Hydraulic Oil Return Lines for General Purpose Water, Glycol Antifreeze Solutions, Conveying Diesel Fuel, Gasoline or Air.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C); Up to +160 Deg F (+ 71 Deg C) for Air.
- Recommended Couplings: GLP, GLX (Sizes 12 & 16), MegaCrimp & Power Crimp (Size 3 Only).
- Meets SAE 30R2 Performance Requirements of Both Type 1 & Type 2 for Fuel & B20 Constant Contact Up to +125 Deg F Biodiesel Fuel Transfer Applications. Meets Flame Resistance Acceptance Designation MSHA 2G.
Specifications
| Color | Black |
| Coupling Recommendation | GLP, MegaCrimp |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 6 |
| Industrial Description | 6RLAX25FT |
| Inside Diameter | 3/8 in (0.97 cm) |
| Inside Diameter 1 (in) | 3/8 in (0.97 cm) |
| Length | 25 ft (7.62 m) |
| Maximum Pressure | 250 psi (17.24 bar) |
| Minimum Burst Pressure (PSI) | 1000 psi (68.95 bar) |
| Outside Diameter | 21/32 in (1.68 cm) |

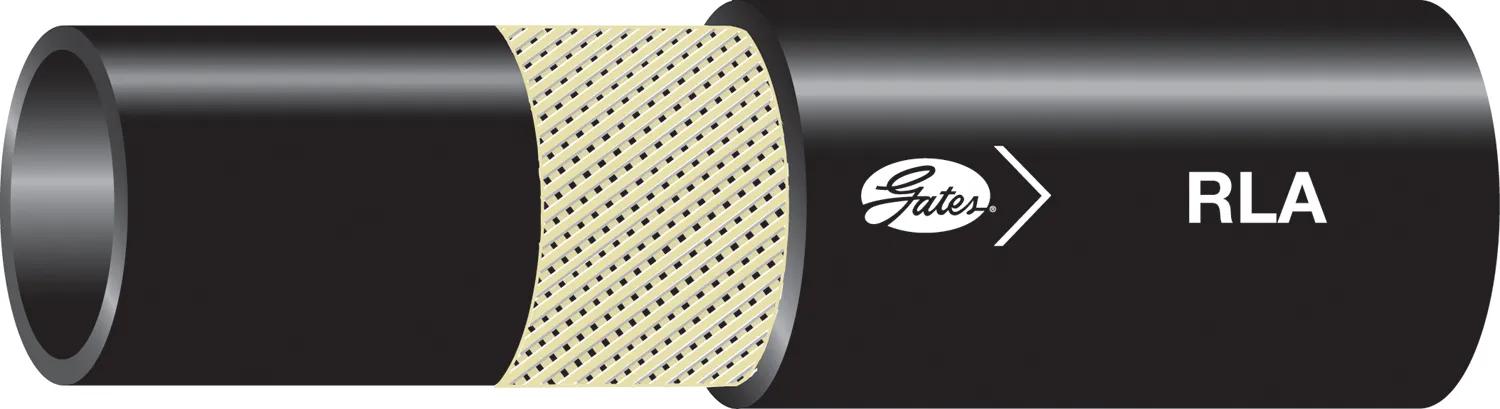

| Product Type | RLA 1-Fiber Braid Return Line & Low Pressure Hose |
| Radius | 4 in (10.16 cm) |
| Reinforcement | One Fiber Braid |
| Standard | SAE 30R2 |
| Temperature Range | -40°F @ 212°F, @ 160°F (Air) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Low Pressure |
| Vacuum Rating | 28 inhg (13.76 psi) |
Interchanges & Equivalent parts:
| H33206 |
| 011706 |
| 85943 |
| 6RLAX25FT |
| 04030286 |
| 32844031 |
