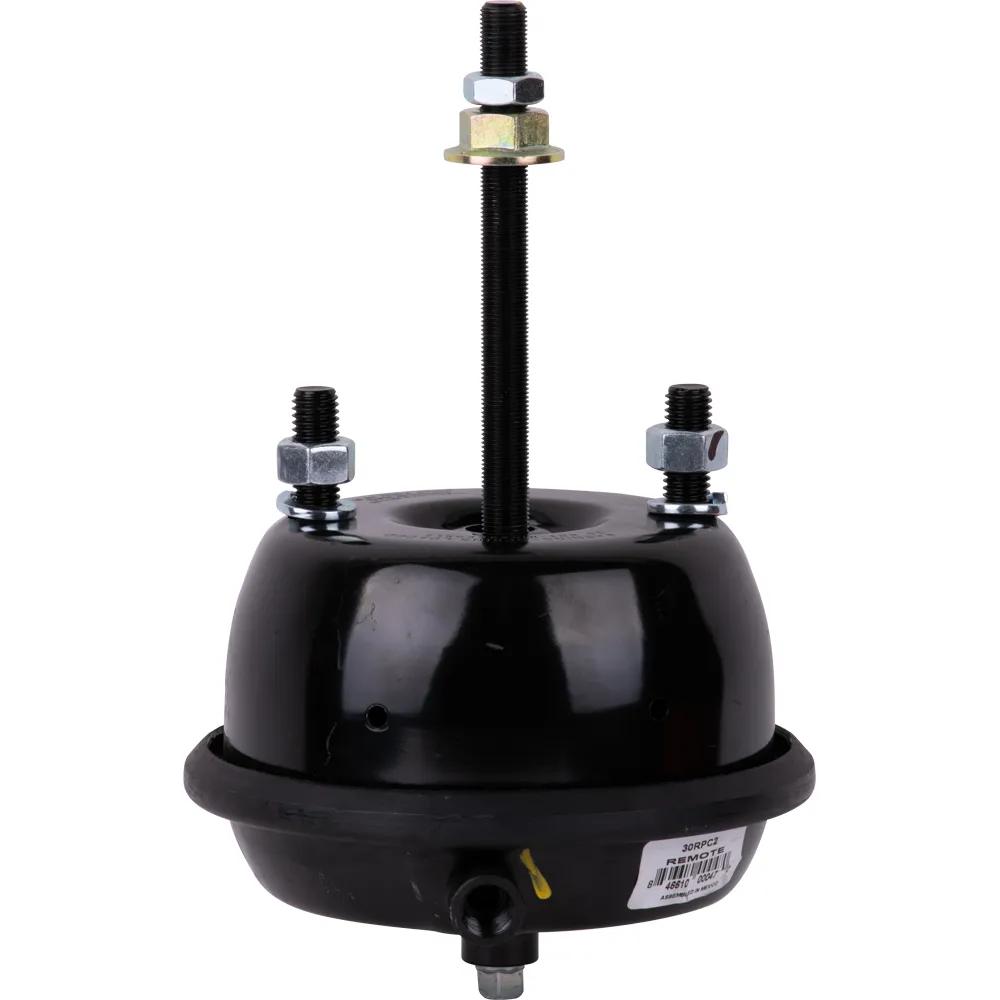

Brake Chamber, T30 Remote Pull to Lock, 2-1/2 in Stroke, Steel, for Trailer S-Cam Brakes
#TSE30RPC2
Product Overview
Brake Chamber, S-Cam Brake, 30 Chamber, Steel, 3/8-18 NPTF Inlet Port, 5/8-11 UNC Mounting Stud, 6.57 in Push Rod Length, 2-1/2 in Stroke Length, For Trailer
Features & Benefits
- Superior OEM Preferred Design
- Sets Industry Standard for Long Life & Corrosion Protection
- All Steel Design
- Full Immersion E-Coating for Excellent Corrosion Resistance
- OEM Premium First Fit & OEM Quality Replacement
- 4 Year Warranty Standard. 5 Years For Fleet Partners
- TSE's patented OmniBrake design is completely sealed and tamper-resistant
- Center sealed assembly with main spring made from chrome silicon pre-tempered wire, specially coated for premium life and durability
- Remote chambers available in 2.5 and 3 in stroke, with custom specifications available upon request
- OmniBrake remote chambers feature a 3-year warranty standard and 2 years for severe service applications
Specifications
| Contains | Brake Chamber |
| Material | Steel |
| Stroke Inch | 2-1/2 in |
| Type | Remote Pull to Lock Chamber |
| Weight | 12.91 lb |
| Application | Trailer |
| Brake Type | S-Cam |
| Chamber Type | 30 |
| Fits Models | T30 |
| Includes | Clevis |
| Inlet Port | 3/8-18 NPTF |
| Mounting Stud | 5/8-11 UNC |
| Position | Remote |
| Pressure Rating | Standard |
| Prop65 | No |
| Push Rod Length | 6-9/16 in |
| Stroke Type | Round Ports |
| Product Category | Brake Chamber |
Interchanges & Equivalent parts:
| HD13500S |
| U4030RPC2 |
| 30RPC |
