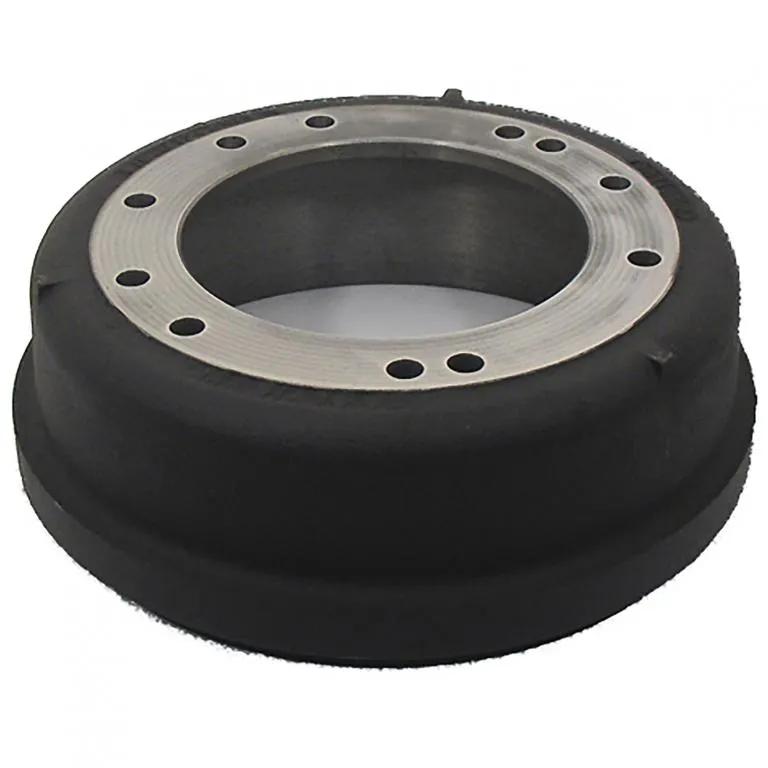

Brake Drum, 16-1/2 in x 5 in, 7 holes
#KIC54217-018
Specifications
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 7 |
| Brake Shoe Width | 5 in (12.7 cm) |
| Brake Size | 16-1/2 in x 5 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Drum Mounting | Inboard |
| Drum Type | AAA |
| Dust Shield Recess Depth (C) | 25/32 in (1.99 cm) |
| Dust Shield Recess Diameter (B) | 17-41/64 in (44.81 cm) |
| Hole Size | 25/32 in (1.99 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 8-7/32 in (20.88 cm) |
| Overall Diameter | 19-1/8 in (48.58 cm) |
| Pilot Diameter | 10-1/2 in (26.67 cm) |
| Sidewall Offset (N) | 13/16 in (2.06 cm) |
| Squealer Band Width (K) | 1-13/32 in (3.58 cm) |
| VMRS Code | 013-017-006 |
Interchanges & Equivalent parts:
| 3289X |
| 54217-018 |
