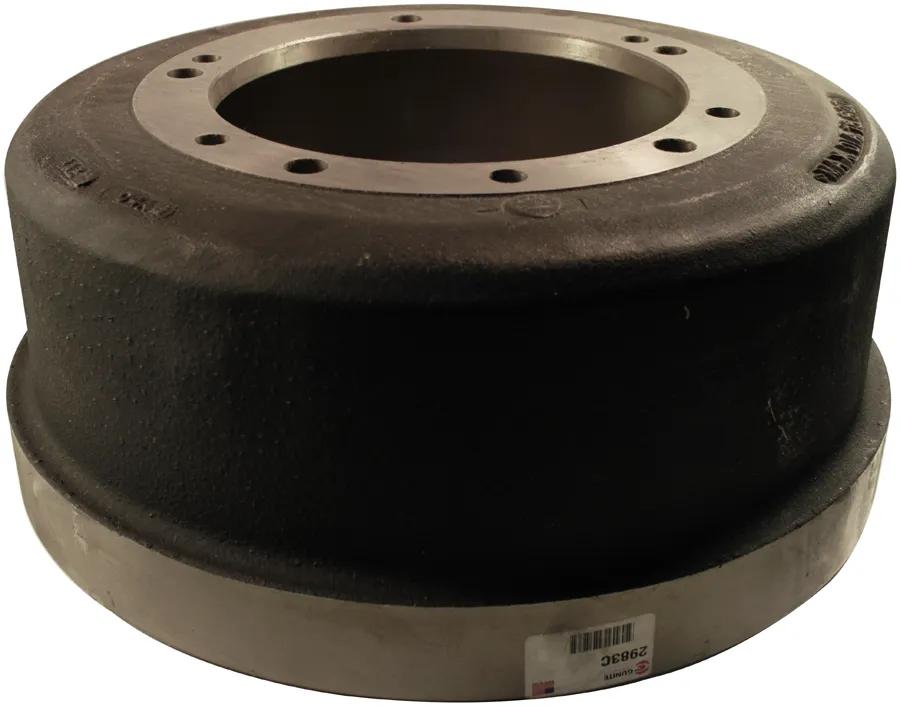

Brake Drum, 16-1/2 in x 7 in, 6 holes, (108 lb)
#GUN2983C
Product Overview
This 16.5 in x 7 in brake drum is designed for truck and trailer axles with a 22,500 lb axle capacity. It features 6 bolt holes, an inboard mounting, and a durable cast construction for reliable braking performance.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Axle Capacity (lb) | 49604 kg (22500 lbs) |
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 11 in |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 7 in |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 7-5/8 in |
| Bridge Width | 7 in |
| Drum Mounting | Inboard |
| Drum Mount Type | Inboard |
| Drum Type | ABA |
| Dust Shield Recess Depth (C) | 47/64 in |
| Dust Shield Recess Diameter (B) | 17-1/2 in |
| Flange Thickness | 33/64 in |
| Hole Size | 25/32 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 8-25/64 in |
| Overall Diameter | 18-7/8 in |
| Packaging | Individual / Bulk |
| Pilot Diameter | 9-7/16 in (23.98 cm) |
| Sidewall Offset (N) | 25/32 in |
| Squealer Band Width (K) | 2-1/16 in |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 106 to 110 lbs |
| Weight (lbs) | 49.57 kg (108 lb) |
| Wheel Type | Spoke |
| Width | 7 in |
Interchanges & Equivalent parts:
| 120017 |
| 02487965 |
| 03-122222 |
| 100209 |
| 1115068 |
| 2487965 |
| 2983C-GJ |
| 3122222002 |
| 91001-5001 |
| 52230-10 |
| 7-4-195 |
| 700-1-315B |
| 91001-5010 |
| DW-03-122222 |
| GUN2983C |
| MW87397B |
| TDA 03122222002 |
| V1111448 |
| V1115067 |
| V1115068 |
| WB-67518 |
| X-60114 |
| X-60553 |
| X-60606 |
| ZBR2983C |
| 1202400 |
| 2024A |
| 2024C |
| 2024G |
| 2025A |
| 2253C |
| 2353B |
| 2353C |
| 2467 |
| 2749 |
| 2983B |
| 52726-11 |
| 52759-12 |
| 62997 |
| 65593 |
| 66141B |
| 66518 |
| 67397 |
| 67397B |
| 67517 |
| 67518 |
| 8219164 |
| 85593 |
| 86141 |
| 86146 |
| 87397 |
| 87398 |
| 910015001 |
| 122222 |
| 5223010 |
| 6118 |
| GUN 2983C |
