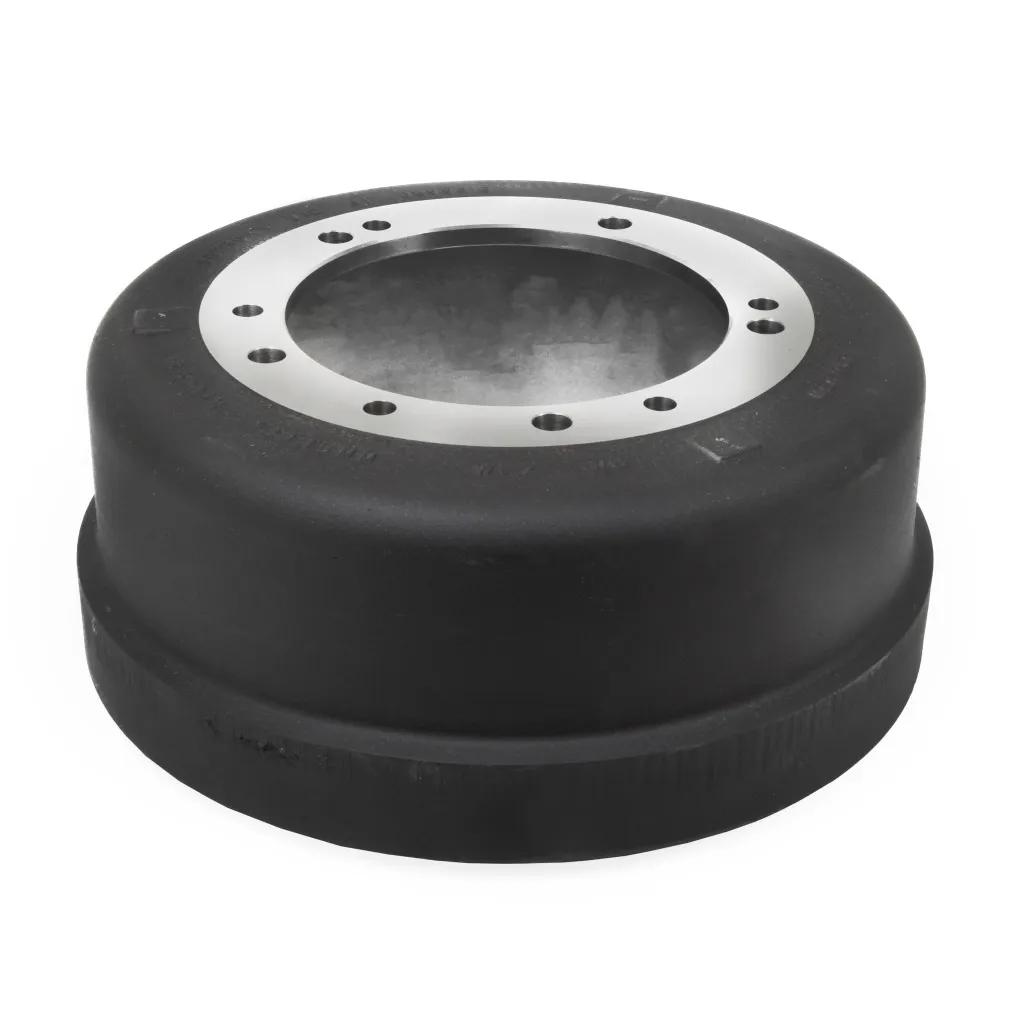

Brake Drum, 16-1/2 in x 7 in, 6 holes, (119,82 lb)
#ROC03122222002
Product Overview
The Meritor Automotive Brake Drum is a vital component in the braking system, providing a surface for the Brake Shoes to press against, creating friction to slow down the vehicle. It is designed to withstand high temperatures and constant contact with the Brake Shoes to ensure efficient braking performance. The smooth surface of the brake drum helps to maintain consistent braking and prevent juddering or vibration during braking.
Features & Benefits
- Direct fit for hassle-free installation
- Corrosion-resistant coating for extended longevity
- Precision-engineered for optimal braking efficiency
- Superior heat dissipation for reduced brake fade and wear
- Ensures consistent brake force for safe and reliable stops
- Longer-lasting braking performance with enhanced durability
- Minimizes vibration and noise for a quieter ride experience
- Enhances vehicle safety with improved braking responsiveness
Specifications
| Axle Capacity (lb) | 49604 kg (22500 lbs) |
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 11 in |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 7 in |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 7-5/8 in |
| Bridge Width | 7 in |
| Drum Mounting | Inboard |
| Drum Mount Type | Inboard |
| Drum Type | ABA |
| Dust Shield Recess Depth (C) | 47/64 in |
| Dust Shield Recess Diameter (B) | 17-1/2 in |
| Flange Thickness | 33/64 in |
| Hole Size | 25/32 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 8-3/8 in |
| Overall Diameter | 18-7/8 in |
| Pilot Diameter | 9-7/16 in (23.98 cm) |
| Sidewall Offset (N) | 25/32 in |
| Squealer Band Width (K) | 2-1/16 in |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 116 to 120 lbs |
| Weight (lbs) | 54.35 kg (119.82 lb) |
| Wheel Type | Spoke |
| Width | 7 in |
Interchanges & Equivalent parts:
| EUC03122222002 |
| EUC03-122222-002 |
| 03122222002 |
| 03-122222-002 |
| 3122222 |
| 52230-10 |
| 03-122222 |
| 03122222002-RI |
| 100209 |
| 151.2983C |
| 2738 |
| 29BD83CB |
| 3098913 |
| 35762222 |
| 62997 |
| 67518 |
| 8235-03122222002 |
| BD733 |
| BD7518U |
| DW-03-122222 |
| DW122222 |
| GUN 2983C |
| HD4 |
| ITBD20 |
| KIC52230-10 |
| RW03-122222-002 |
| TDA 03122222002 |
| TDA03122222 |
| TDA03122222002 |
| WEB67518F |
| 54270018 |
