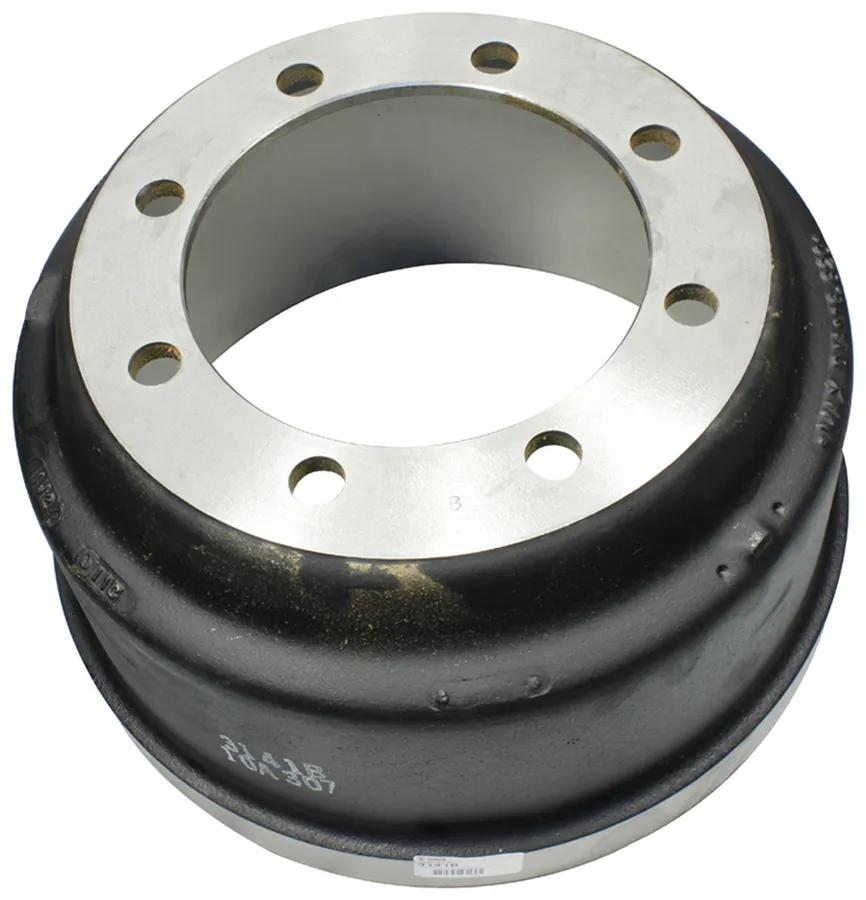

Brake Drum, 16-1/2 in x 7 in, 8 holes, (105 lb)
#GUN3141B
Product Overview
This 16.5 in x 7 in brake drum is designed for truck and trailer axles. It features 8 bolt holes, an outboard mounting, and a durable cast construction for reliable braking performance.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Back Plate Thickness | 1/2 in (1.27 cm) |
| Bolt Circle Diameter | 10-53/64 in (27.51 cm) |
| Bolt Hole (Number) | 8 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-3/4 in (19.69 cm) |
| Drum Mounting | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 9/16 in (1.44 cm) |
| Dust Shield Recess Diameter (B) | 17-7/16 in (44.3 cm) |
| Flange Thickness | 1/2 in (1.27 cm) |
| Hole Size | 1 in (2.54 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 10-19/32 in (26.91 cm) |
| Overall Diameter | 18-3/4 in (47.63 cm) |
| Packaging | Individual / Bulk |
| Pilot Diameter | 9 in (22.86 cm) |
| Sidewall Offset (N) | 14-3/8 in (36.53 cm) |
| Squealer Band Width (K) | 1-51/64 in (4.57 cm) |
| VMRS Code | 013-017-006 |
| Weight | 101 to 105 lbs |
| Weight (lbs) | 48.19 kg (105 lb) |
| Wheel Type | Disc |
| Width | 7 in (17.78 cm) |
Interchanges & Equivalent parts:
| 3141B |
| AW97145 |
