Brake Drum, 16-1/2 in x 8 in, 10 holes, (118,39 lb)
#ROC03123520002

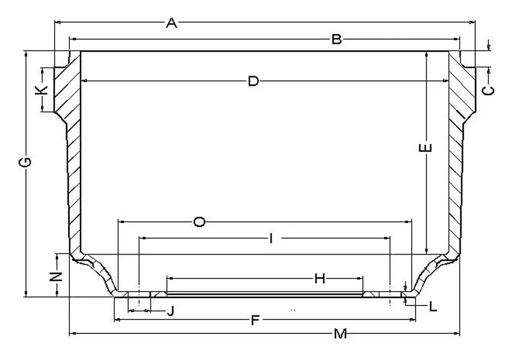

Specifications
| Axle Capacity (lb) | 50707 kg (23000 lbs) |
| Back Plate Thickness | 9/16 in (1.44 cm) |
| Balanced or Unbalanced | Unbalanced |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 8 in (20.32 cm) |
| Brake Size | 16-1/2 in x 8 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 8-29/32 in (22.63 cm) |
| Bridge Width | 8 in (20.32 cm) |
| Drum Mounting | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 11/16 in (1.75 cm) |
| Dust Shield Recess Diameter (B) | 17-1/2 in (44.45 cm) |
| Height | 12 in (30.48 cm) |
| Hole Size | 1 in (2.54 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 11-3/32 in (28.18 cm) |
| Overall Diameter | 18-29/32 in (48.03 cm) |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 2-1/2 in (6.35 cm) |
| Squealer Band Width (K) | 2-13/64 in (5.6 cm) |
| Type | Cast Unbalanced |
| VMRS Code | 013-017-006 |
| Weight | 116 to 120 lbs |
| Weight (lbs) | 53.71 kg (118.39 lb) |
| Wheel Type | Disc |
| Width | 8 in (20.32 cm) |
Interchanges & Equivalent parts:
| 03-123520 |
| 03-123520-002 |
| 03123520002-AUT |
| 151.3782 |
| 3123520 |
| 3782GUN |
| 54269-01 |
| 8235-03123520002 |
| DB1658B |
| DW123520 |
| GUN 3782 |
| TDA 03 123520 002 |
| TDA03123520002 |
| TWD 03123520002 |
| 3123520002 |
