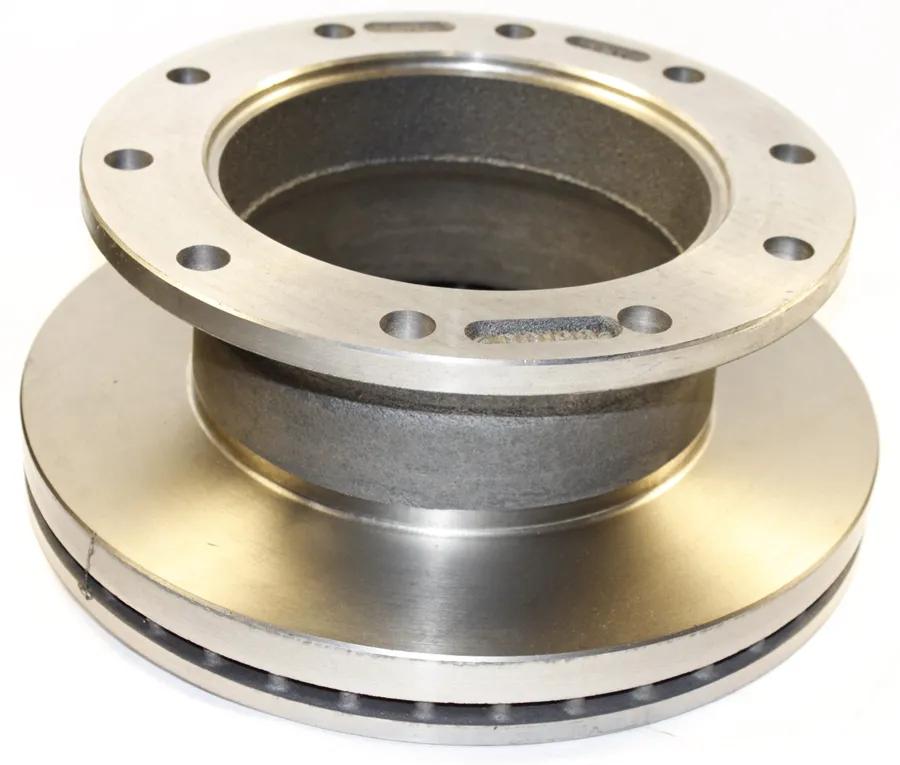

Brake Rotor, Dia: 15-1/4 in, Thi: 1-3/4 in, U-Shaped
#GUNR6198
Features & Benefits
- All Gunite Brake Drums and Disc Brake Rotors Are Fully Protected By One of the Industry's Most Comprehensive Warranties on Materials & Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Gunite Brake Drums and Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors, and Various O.E.M. Dealer Networks.
- Gunite Brake Drums and Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers The Industry's Most Complete Line of Brake Drums and Disc Brake Rotors.
Specifications
| Bolt Circle Diameter | 11-1/4 in |
| Brake Surface Width | 1-3/4 in |
| Diameter | 15-1/4 in |
| Diameter Range | 15 to 15.99 in |
| Discard Thickness (in.) | 1-5/8 in |
| Flange Thickness | 9/16 in |
| Height | 8-1/2 in |
| Hole Size | 13/16 in |
| Length | 16-1/2 in |
| Material | Iron |
| Model | ADB1560 |
| New Disc Thickness | 1-3/4 in |
| Number of Bolt Holes | 10 |
| Overall Depth | 5-25/32 in |
| Pilot Diameter | 8-3/4 in |
| Type | U-Shaped |
| Weight | 66 lbs |
| Wheel Type | Disc |
Interchanges & Equivalent parts:
| GUNR6199 |
