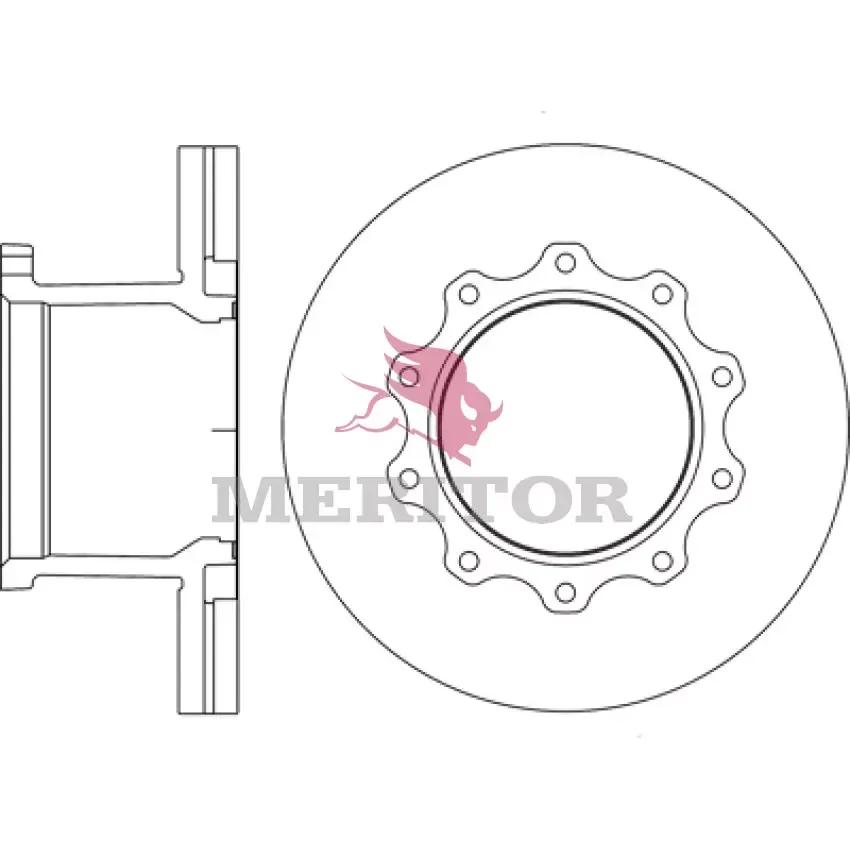

Brake Rotor, Thi: 1-49/64 in, U-Shaped
#ROCM44D71601
Specifications
| Application | Wabco Pan 19 |
| Bolt Circle Diameter | 9-13/16 in (24.92 cm) |
| Diameter | 14-55/64 in (37.75 cm) |
| Diameter Range | 14 to 14.99 in |
| Discard Thickness (in.) | 1-9/16 in (3.97 cm) |
| Finish | Full Cast |
| Flange Thickness | 1-1/8 in (2,86 cm) |
| Height | 5-29/32 in (15.01 cm) |
| Hole Size | M16 X 2.0 |
| Length | 19-29/32 in (50.57 cm) |
| Material | Iron |
| Model | Pan 19 |
| New Disc Thickness | 1-49/64 in (4.5 cm) |
| Number of Bolt Holes | 10 |
| Overall Depth | 6-13/32 in (16.28 cm) |
| Pilot Diameter | 8-11/16 in (22.07 cm) |
| Teeth | Cast Teeth |
| Type | U-Shaped |
| UPC | 884879817736 |
| Vented or Non-Vented | Vented |
| VMRS Code | 013-017-001 |
| Weight | 66.36 lb (30.1 kg) |
Interchanges & Equivalent parts:
| 125702 |
| 71AR601G |
| 8235-M44D71601 |
| ADR180719 |
| G0791601000 |
| SSR931 |
| TWD M44D71601 |
