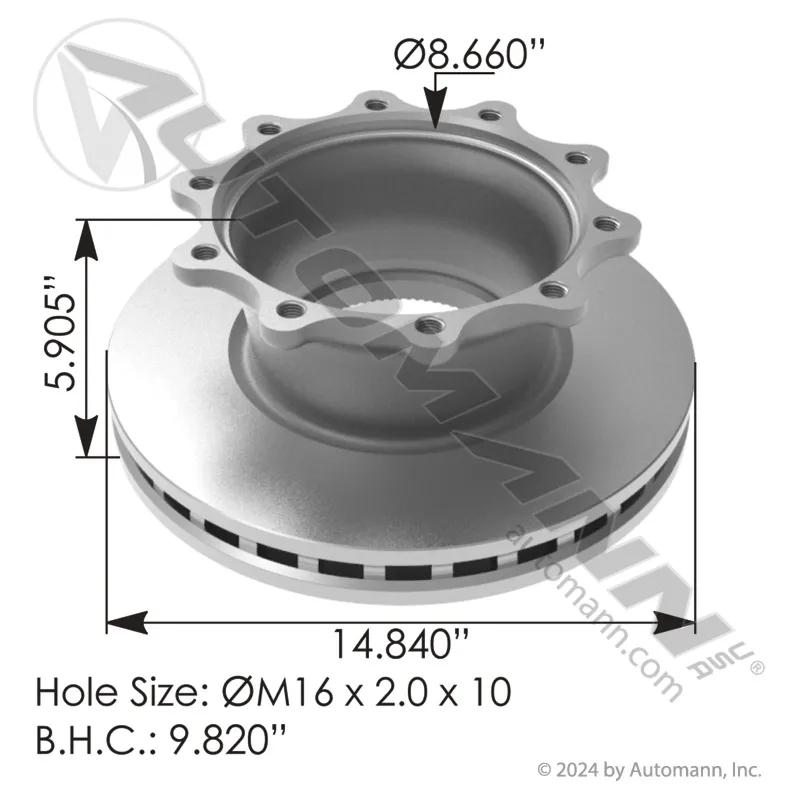

Rotor, Air Disc Brake, 9.82 in Bolt Circle Dia, 14.84 in Dia, 5.905 in Height, M16 x 2 Hole, 10 Holes, For PAN 19, Wabco
#MZA153.171601
Product Overview
Rotor, Air Disc Brake, 9.82 in Bolt Circle Dia, 14.84 in Dia, 5.905 in Height, M16 x 2 Hole, 10 Holes, For PAN 19, For Wabco
Features & Benefits
- 8.66 in pilot diameter
- Notes: threaded bolt holes
- U shape disc brake
Specifications
| Application | Wabco |
| Bolt Circle Diameter | 9.82 in |
| Brake Type | Air Disc |
| Diameter | 14.84 in |
| Discard Thickness (in.) | 1-9/16 in (3.97 cm) |
| Finish | Full Cast |
| Flange Thickness | 1-1/8 in (2,86 cm) |
| Height | 5.905 in |
| Hole Size | M16 x 2 |
| Length | 19-29/32 in (50.57 cm) |
| Material | Iron |
| Overall Depth | 6-13/32 in (16.28 cm) |
| Teeth | Cast Teeth |
| UPC | 889626268731 |
| Vented or Non-Vented | Vented |
| Weight | 64.95 lb |
| Fits Models | PAN 19 |
| Number of Holes | 10 |
| Manufacturer Part Number | 153.171601 |
| Product Category | Rotor |
Interchanges & Equivalent parts:
| M44D71601 |
| 153.171601 |
