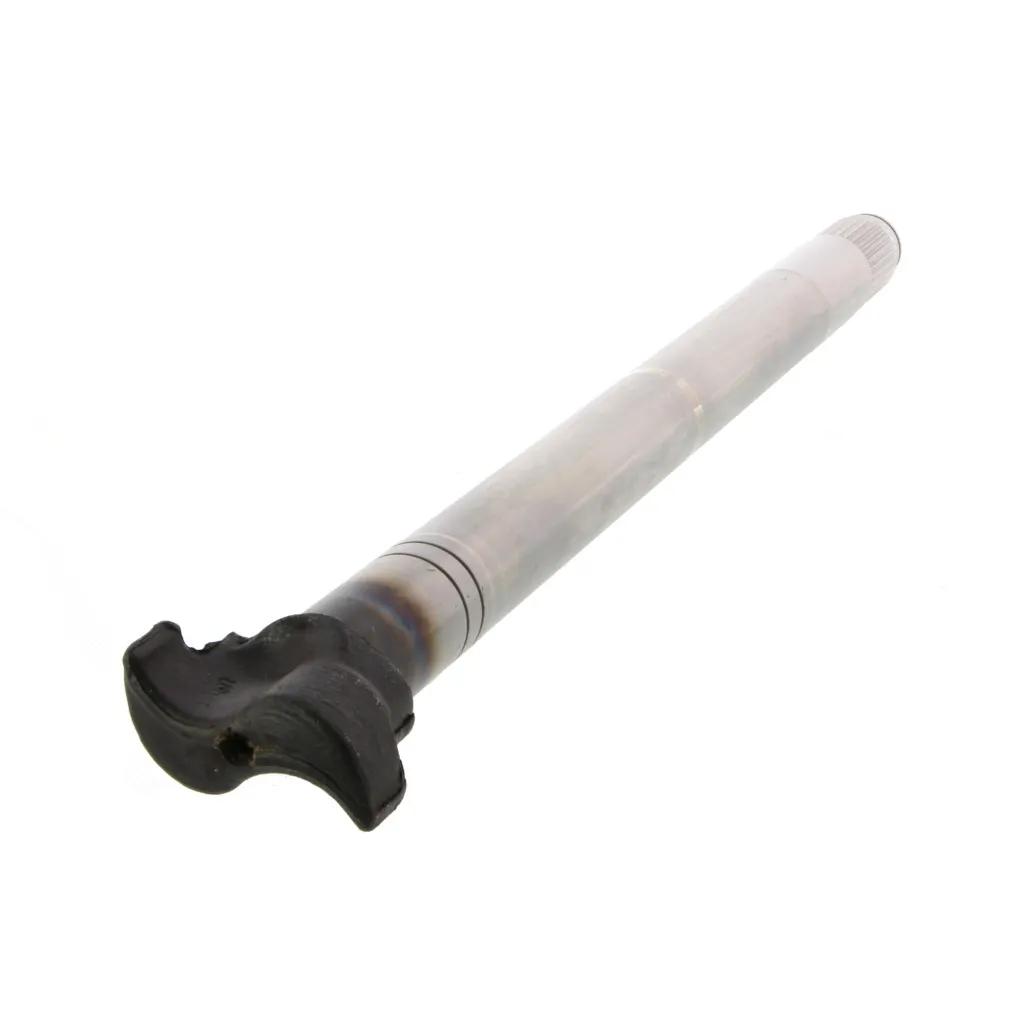

CAMSHAFT LH
#EUCE-9755
Features & Benefits
- WARNING: These camshafts are for use with fabricated brakes shoes only! DO NOT use these new camshafts with cast brake shoe or fabricated closed roller-end brake shoes.
- WARNING: E-586. 1-1/2 in. Diameters. Brake Shoe Rollers must be used with this new head design. E-586 rollers are now available in Brake Repair Kits E-9281. E-9282 and E-9283.
- WARNING: These camshafts should not be used in conjunction with old Fast-Rise camshafts on the same axle. The rate of brake application is different between the two head designs.
Specifications
| Brake Surface Diameter | 12-1/4 in (31.12 cm) |
| Brake Type | High-Lift |
| Bushing Journal Length (in.) | 2-7/32 in (5.64 cm) |
| Camshaft Length | 21-5/16 in (54.14 cm) |
| Height | 2-13/32 in (6.12 cm) |
| Mfg. Part | Dana-Spicer M12WKL20-214 |
| Notes | 0794L/R Head Fast-Rise. Euclid fabricated open roller end brake shoe numbers are: E-2393A. E-2394A. and E-5303A |
| OE Mfg. | Dana-Spicer |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 21 to 21.99 in |
| VMRS Code | 013-017-004 |
| Weight | 11.55 lb (5.24 kg) |
| Width | 4-45/64 in (11.95 cm) |
Interchanges & Equivalent parts:
| 04-713 |
| 04713 |
| 17-787 |
| 4642132 |
| CS41358 |
| DE9755 |
| H-10482L |
| H10482L |
| L-3261 |
| M-3792L |
| M12WKL20-214 |
| MERR607249 |
| E-9755 |
