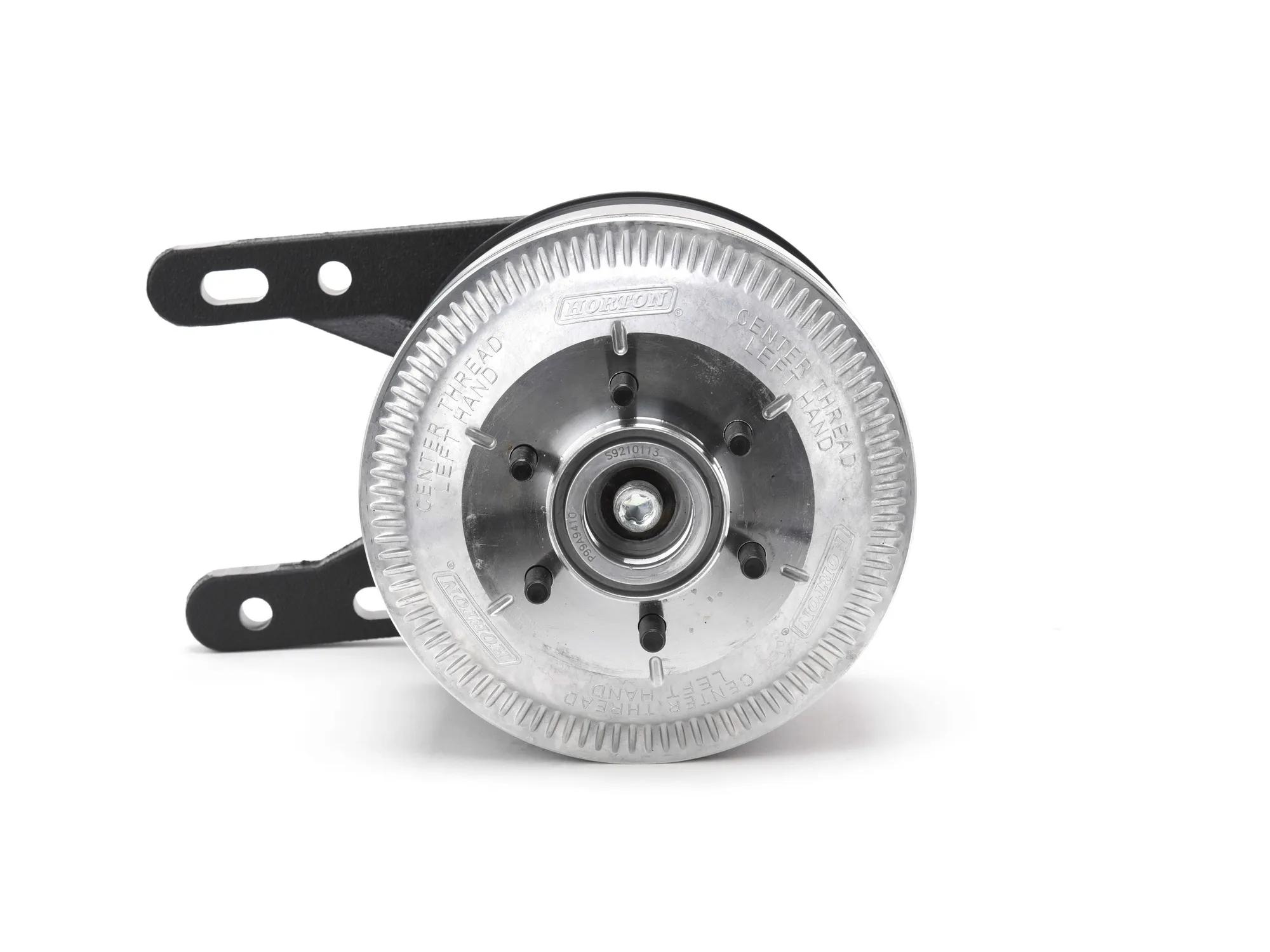

CLUTCH DMA SE 21 REMAN 10-PK
#HOR79A9410
Specifications
| Application | Western star |
| Back Pulley Diameter (A) | 7-1/2 in (19.05 cm) |
| Belt Groove Location (C) | 2-35/64 in (6.48 cm) |
| Center Of JB To Top Right Mounting Hole (J) | 6-27/64 in (16.31 cm) |
| Clutch Type | DM Advantage On/Off |
| Drive Ratio | 1.2 |
| Engine MFR | Detroit Diesel |
| Engine Model(S) | Series 60 |
| Fan Blade Stud Length (F) | 0.81 |
| Horizontal Mounting Distance (H) | 5-5/16 in (13.49 cm) |
| Kit Includes | Journal Bracket, Sheave Bearing, Sheave, Bearing Nut, Air Chamber Cap, O-Ring Seal, Fan Mounting Disc/Studs, Button Head Screws, Air Chamber Seal, Face Seal, Retaining Ring, Air Cartridge Assembly, Friction Liner, Bearing Spacers, Clutch Pack - Spring Housing/Piston |
| Length | 7-19/32 in (19.28 cm) |
| OEM # | 98A9410 |
| Pilot Diameter | 2-9/16 in (6.5 cm) |
| Vehicle Model(s) | All Vehicle Models |
| Vehicle Years | 2002-2009 |
| Vertical Mounting Distance (G) | 7-5/32 in (18.19 cm) |
Interchanges & Equivalent parts:
| 999410 |
| HOR999410 |
