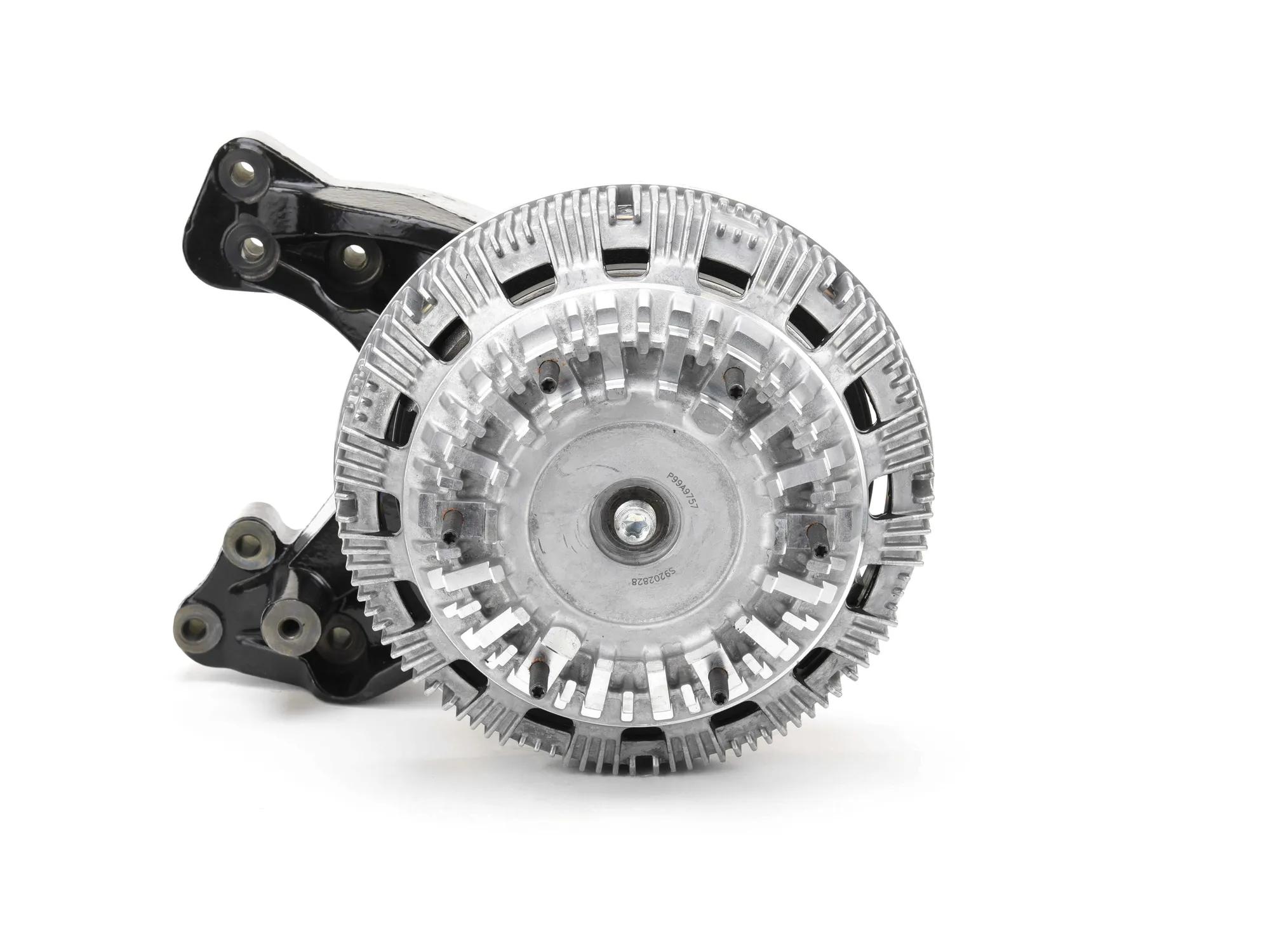

CLUTCH DMA2S REMAN 8PK INT
#HOR79A9757
Specifications
| Application | International |
| Back Pulley Diameter (A) | 8-57/64 in (22.58 cm) |
| Belt Groove Location (C) | 3-61/64 in (10.03 cm) |
| Center Of JB To Top Right Mounting Hole (J) | 5-11/32 in (13.56 cm) |
| Clutch Type | DM Advantage Two-Speed |
| Drive Ratio | 1.3 |
| Engine MFR | International |
| Engine Model(S) | MaxxForce 11, MaxxForce 13, N13 |
| Fan Blade Stud Length (F) | 1.05 |
| Horizontal Mounting Distance (H) | 9-1/64 in (22.91 cm) |
| Kit Includes | Journal Bracket, Sheave Bearing, Includes Bearing Install Tool , Sheave, Bearing Nut, Air Chamber Cap, O-Ring Seal, Fan Mounted Friction Disc (Fmfd) , Button Head Screws, Air Chamber Seal, Face Seal, Bearing Retaining Ring, Air Cartridge Assembly, Air Cartridge Retaining Ring, Fan Mtg Stud, Friction Liner, Bearing Spacers, Clutch Pack - Spring Housing/Piston, Magnet Assembly |
| Length | 7-21/64 in (18.62 cm) |
| OEM # | 98A9757 |
| Pilot Diameter | 5 in (12.7 cm) |
| Vehicle Model(s) | 7600, 7700, Work Star |
| Vehicle Years | 2010-2013 |
| Vertical Mounting Distance (G) | 8-3/16 in (20.8 cm) |
Interchanges & Equivalent parts:
| 3834443C91 |
| 3834443C92 |
