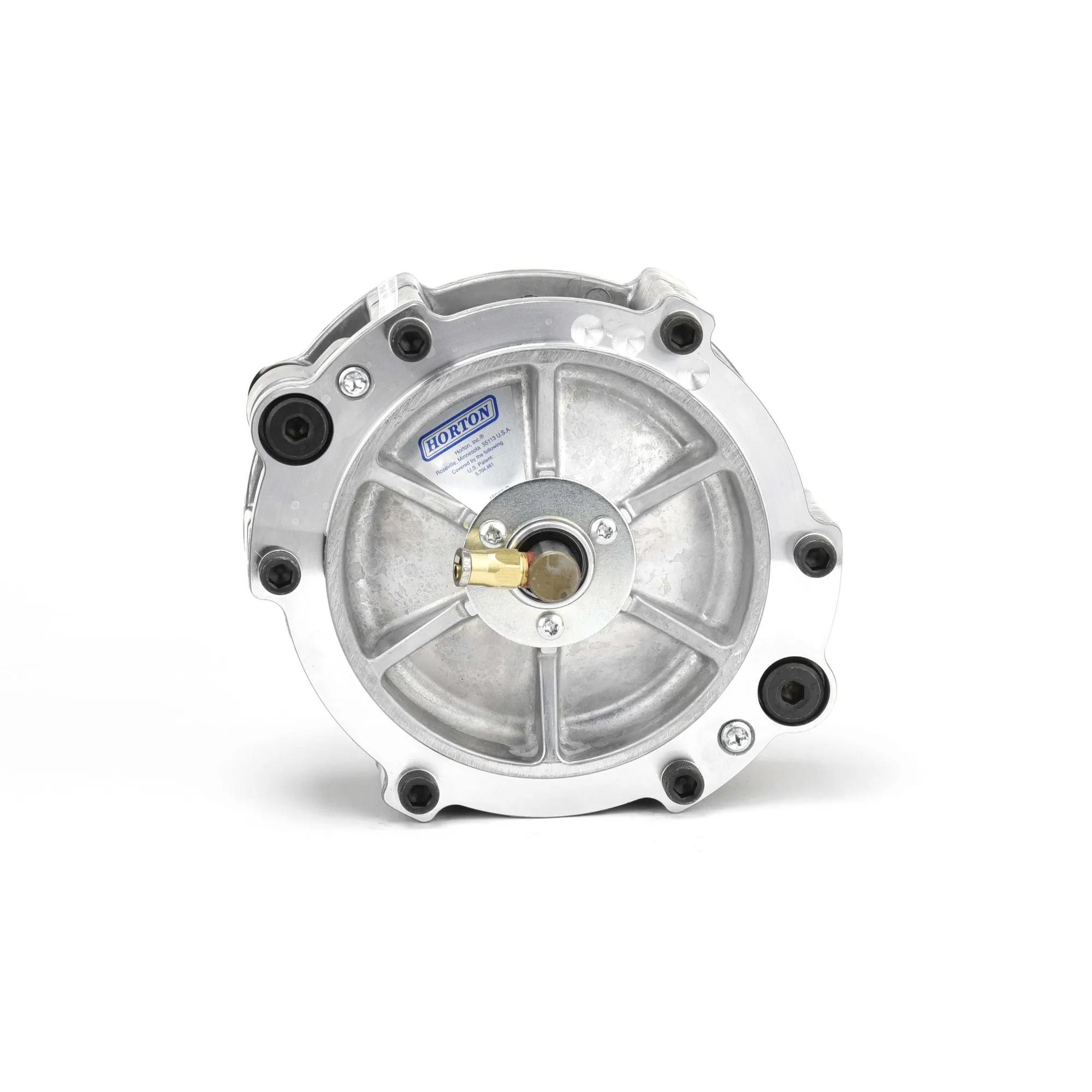

CLUTCH HT650 MER 152.4 BC
#HOR991450
Specifications
| Application | Freightliner, Sterling |
| Clutch To Fan Mounting Surface (C) | 3-25/32 in (9.6 cm) |
| Clutch To Fan Mounting Surface (G) | 3-25/32 in (9.6 cm) |
| Clutch Type | HT650 |
| Engine MFR | Mercedes |
| Engine Model(S) | MBE 900 |
| Flange Bolt Circle (D) | 3-45/64 in (9.4 cm) |
| Flange Thickness (E) | 19/64 in (0.76 cm) |
| Hub Pilot Diameter | 2-13/64 in (5.59 cm) |
| Kit Includes | Mounting Bracket, Drive Sleeve Assembly, Friction Disc, Silicone Sleeve, Piston Assembly (Incl. Friction Facing & Bshng), Compression Spring, O-Ring Seal, Air Chamber Assembly, Cap Screw, Set Screw, Washer, Retaining Washer, Pan Head Screw, Shoulder Screw, Locking, Rotary Air Union, O-Ring |
| Length | 6-7/8 in (17.48 cm) |
| Number of Slots/Holes (G) | 4 |
| Number of Studs | 6 |
| OEM # | 3219964-1/64 ft (981445 m) |
| Pilot Depth Diameter (A1) | 13/32 in (1.04 cm) |
| Pilot Diameter | 5 in (12.7 cm) |
| Slot Width/Thread (F) | 0.35 |
| Stud Bolt Circle (C) | 6 |
| Vehicle Model(s) | M2, FLN, M2 106-V, Acterra |
| Vehicle Years | 2002-2007, 2002-2003 |
Interchanges & Equivalent parts:
| 8010N |
