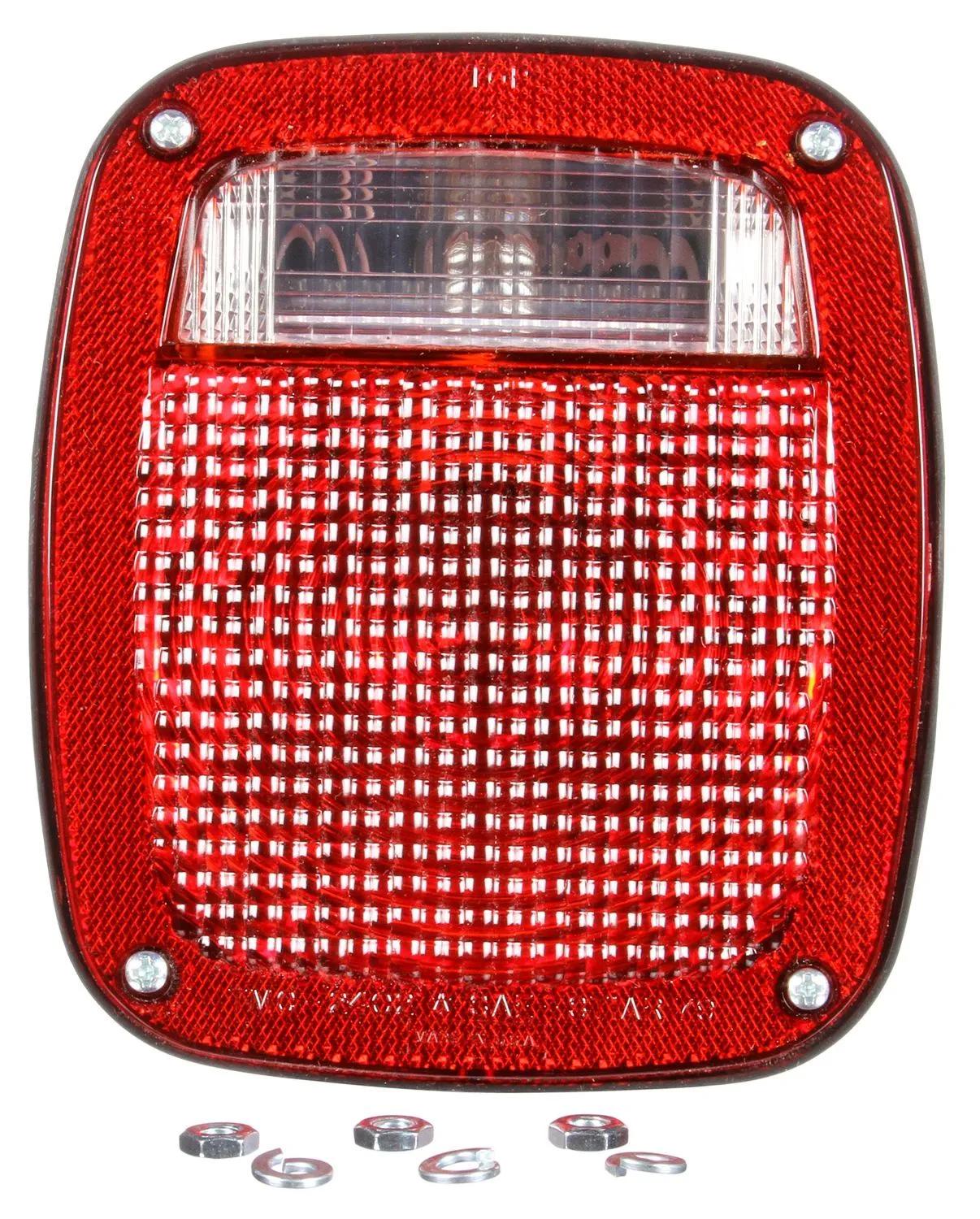

Combination Stop/Tail/Turn Light, Red & White
#TRL5315Y101
Product Overview
Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, Left Hand Side, Combo Box Light, 3 Stud , License Light, Packard , 12V
Features & Benefits
- Navistar #1661281C91
- Navistar #1661282C91
- RH lamp popular replacement for GM/IH OE #56139474, #15565732
- Combination stop, tail, turn, back-up and reflex reflector
- Dual optic acrylic lens
- Permastat body provides impact resistance
Specifications
| Ampères | 0.59 amp to 2.1 amp |
| Couleur | Red & White |
| Taille commune | 5 in (12.7 cm) |
| Contient | Lamp |
| Major actuel | 2.1 amp |
| Mineure actuelle | 0.59 amp |
| Profondeur | 2-3/4 in (6.99 cm) |
| Finition | Black |
| Convient au tirebouchon - Numéro(s) de pièce | 9470 |
| Fonction | A, I, L, R2, S, T |
| Height | 6-11/16 in (16.99 cm) |
| Kit (Y/N) | No |
| # Lamp Prongs | 5 |
| Lamp Type | Bulb Replaceable |
| Left, Right or Both Side | Both Sides |
| Length | 6-3/4 in (17.15 cm) |
| Lens Height | 6-11/16 in (16.99 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 5-3/4 in (14.61 cm) |
| Mount Type | Montage par goujon |
| Number Of Wires | 5 |
| Plug Side Two | No Plug |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Carré |
| Single or Dual | Seul |
| Standard | FMVSS 108, DOT, SAE |
| Style | Metri-Pack Remplacement Avec Double Connecteur |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 1.2 lb (0.54 kg) |
| Width | 5-3/4 in (14.61 cm) |
Interchanges & Equivalent parts:
| 15565732 |
| 1661281C91 |
| 1661282C91 |
| 56139474 |
| 46003806 |
| 5315Y101 |
| 84135315Y101 |
| SIG5315Y101 |
| TLD5315Y101 |
| TRL5315Y101 |
| 80383R |
| TRU5315Y101 |
| 5315Y101S1G |
| 81143 |
| 81196 |
| 8413-5315Y101 |
| LIT5315Y101 |
| TL 5315Y101 |
| TL 5315Y101 |
| TL5315Y101 |
| GRT53702 |
| GRT53762 |
| TKL5315Y101 |
| TG53762 |
| 53762 |
