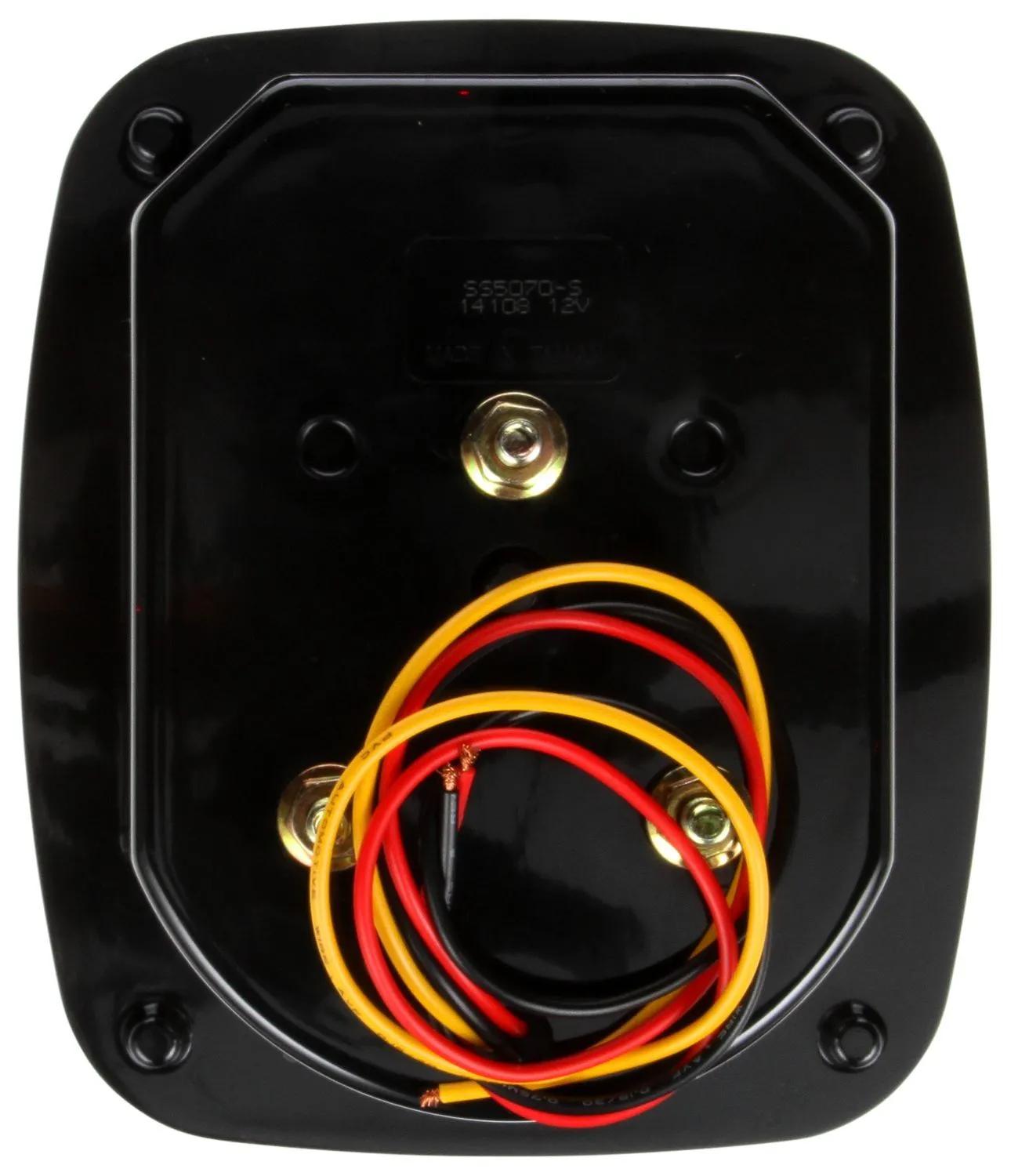

Combination Stop/Tail/Turn Light, Red & White
#TRL5070
Product Overview
Signal-Stat, LED, Red/Clear Acrylic Lens, LH, Combo Box Light, 3 Stud , License Light, Hardwired, Stripped End, 12V
Features & Benefits
- Upgrade your vehicle to LED technology, allowing significant return on your investment
- LEDs have no filament, therefore are not susceptible to shock and vibration
- Unique Led Array Displays Full Pattern Output. Epoxy Encapsulated. 16 Led S/T/T, 5 Led License, 36 Led Back-Up.
Specifications
| Amps | 0.06 amp to 10.4 amp |
| Color | Red & White |
| Common Size | 5 in (12.7 cm) |
| Contents | Multi-Function Lamp w/ License |
| Current Major | 0.14 amp |
| Current Minor | 0.06 amp |
| Depth | 2-29/32 in (7.39 cm) |
| Function | A,I,R2,S,T |
| Height | 6-47/64 in (17.09 cm) |
| Kit (Y/N) | No |
| Lamp Type | LED |
| LED | Yes |
| Left, Right or Both Side | Left |
| Length | 6-47/64 in (17.09 cm) |
| Lens Height | 6-47/64 in (17.09 cm) |
| Lens Material | Acrylic |
| Lens Width | 5-51/64 in (14.73 cm) |
| Mount Type | Stud Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 18 |
| Style | Hi Count LED Box Lamp, RH With Side Marker |
| Technology | LED |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 1.02 lb (0.46 kg) |
| Width | 5-51/64 in (14.73 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| 52602 |
| 5070 |
| G5092 |
| G5212 |
| TL6400 |
| LED800 |
| G5202 |
| HB9040R |
| TKL5070 |
| 222020R |
| 845L |
| M42220 |
| G50825 |
