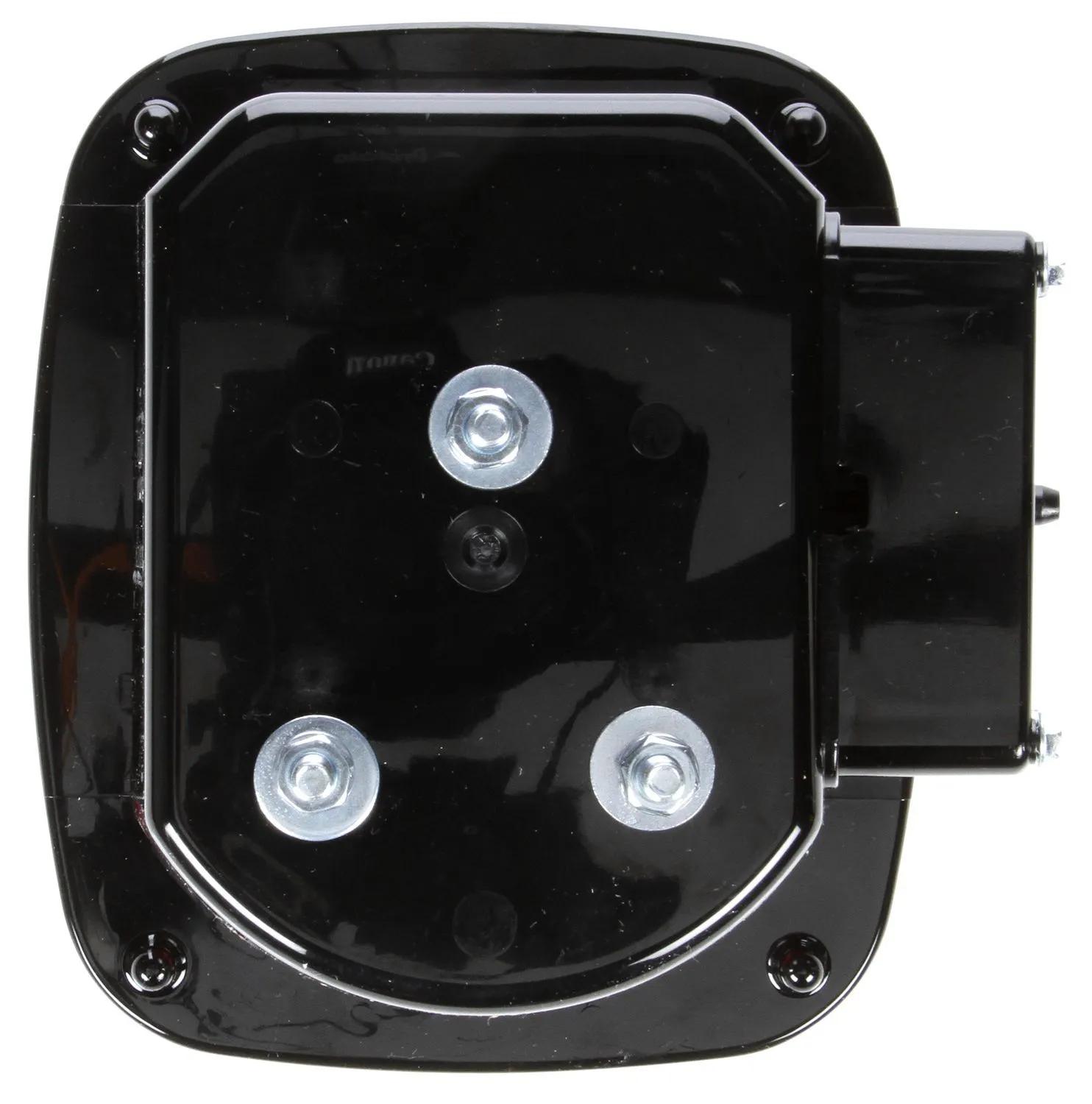

Combination Stop/Tail/Turn Light, Red & White
#TRL4018
Product Overview
Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, RH, Combo Box Light, 3 Stud , License Light, Screw Terminal, 12V
Features & Benefits
- Replaces all GM medium and heavy duty 1972 to 1985
- Integral housing with 3 bolt mount
- Includes junction box cover
- High quality construction
- Wide range of applications
- Wide variety of lighting products
Specifications
| Color | Red & White |
| Common Size | 5 in |
| Current Major | 2.1 amp |
| Current Minor | 0.59 amp |
| Depth | 2-21/32 in |
| Height | 6-3/4 in |
| Kit (Y/N) | No |
| # Lamp Prongs | 4 |
| Lamp Type | Bulb Replaceable |
| Left, Right or Both Side | Right |
| Length | 6-3/4 in |
| Lens Height | 6-3/4 in |
| Lens Material | Polycarbonate |
| Lens Width | 5-3/4 in |
| Mount Type | Stud Mount |
| Plug Side Two | No Plug |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Square |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 1.29 lb |
| Width | 5-3/4 in |
Interchanges & Equivalent parts:
| 3099696 |
| 442 |
| 2572655 |
| 84134018 |
| 4018 |
| 50902 |
| 50912 |
| 50942 |
| SIG4018 |
| TL4018 |
| TLD4018 |
| 80330R |
| 4018-TL |
| 80330R1 |
| 8413-4018 |
| 9228 4018 |
| LIT4018 |
| SIG 4018 |
| TL 4018 |
| TL-4018 |
| 4018S1G |
| 80330R3 |
| 812120 |
| 257-2655 |
