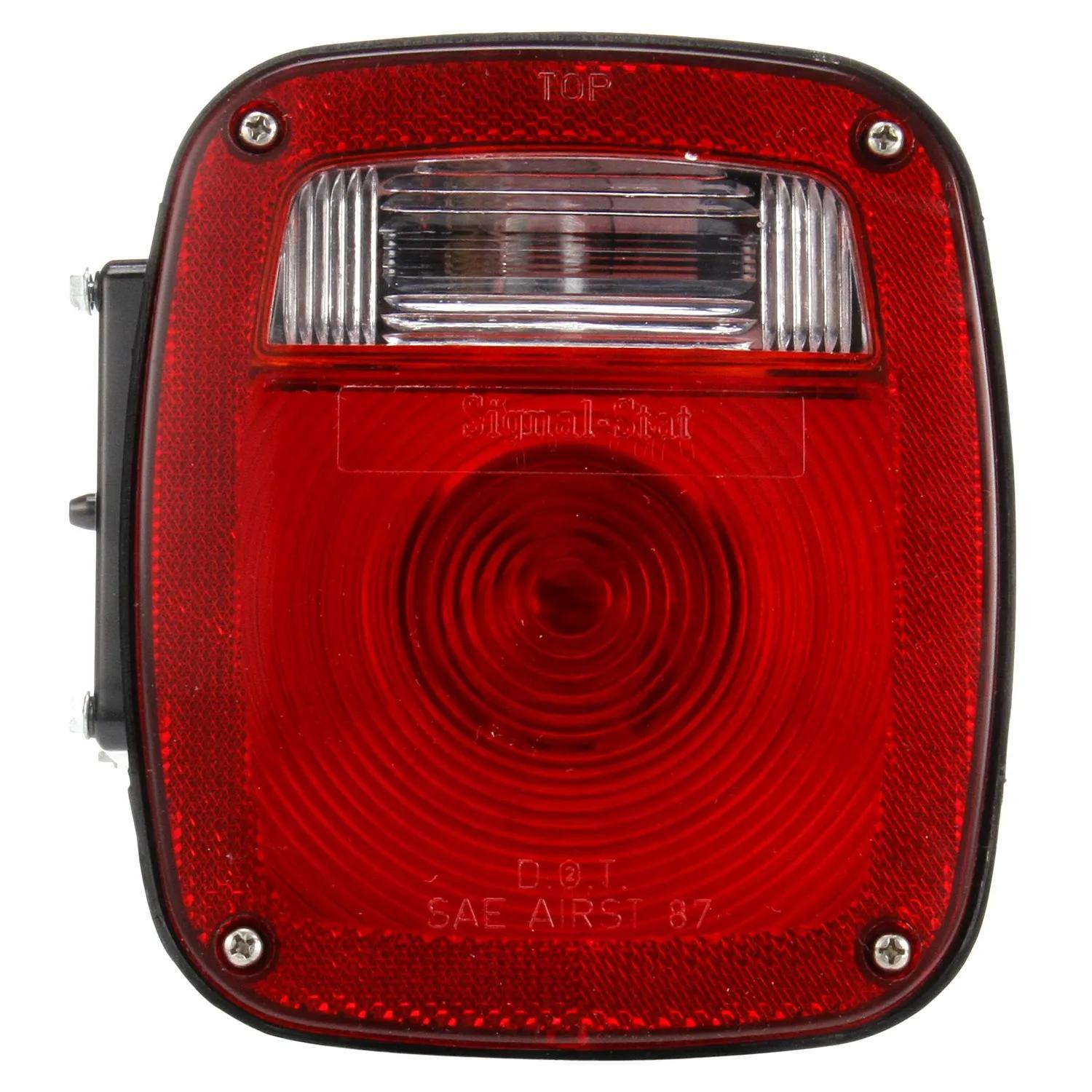

Combination Stop/Tail/Turn Light, Red & White
#TRL4023
Product Overview
Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, RH, Combo Box Light, 3 Stud , License Light, Stud Terminal, 12V
Specifications
| Color | Red & White |
| Common Size | 5 in (12.7 cm) |
| Current Major | 2.25 amp |
| Current Minor | 0.59 amp |
| Depth | 2-21/32 in (6.76 cm) |
| Height | 6-3/4 in (17.15 cm) |
| Kit (Y/N) | No |
| # Lamp Prongs | 4 |
| Lamp Type | Bulb Replaceable |
| Left, Right or Both Side | Right |
| Length | 6-3/4 in (17.15 cm) |
| Lens Height | 6-3/4 in (17.15 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 5-3/4 in (14.61 cm) |
| Mount Type | Stud Mount |
| Plug Side Two | No Plug |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Square |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 1.36 lb (0.62 kg) |
| Width | 5-3/4 in (14.61 cm) |
Interchanges & Equivalent parts:
| 84134023 |
| 4023 |
| D9HZ13405A |
| D9HZ13405B |
| SIG4023 |
| TL4023 |
| TLD4023 |
| 4023S1G |
| 52912GR0 |
| 8413-4023 |
| LIT4023 |
| TL 4023 |
| 52912 |
