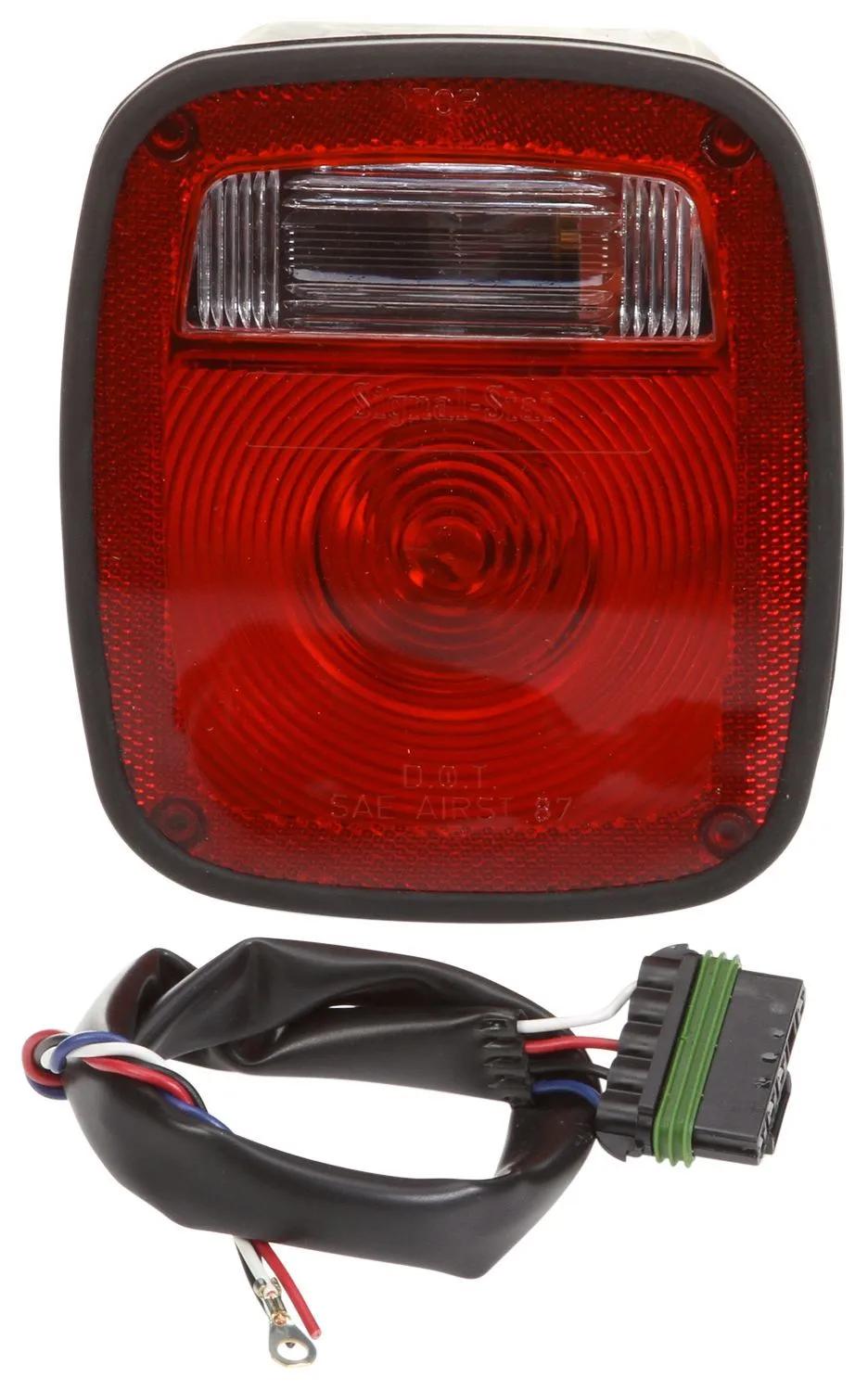

Combination Stop/Tail/Turn Light, Red & White
#TRL5016K
Product Overview
Signal-Stat, Incandescent, Red/Clear Acrylic Lens, RH, Combo Box Light, 2 Stud , Packard , Blunt Cut/Ring Terminal, 12V
Features & Benefits
- Mack #14M052M, 14MO52AM
- Used on tractors, trucks and 4 wheel drive vehicles
- Conforms to current DOT and SAE Standards
Specifications
| Color | Red & White |
| Common Size | 5 in (12.7 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.59 amp |
| Depth | 2-3/64 in (5.21 cm) |
| Fits Pigtail Part #(s) | 9470 |
| Height | 6-3/4 in (17.15 cm) |
| Kit (Y/N) | No |
| # Lamp Prongs | 5 |
| Lamp Type | Bulb Replaceable |
| Left, Right or Both Side | Right |
| Length | 6-3/4 in (17.15 cm) |
| Lens Height | 6-3/4 in (17.15 cm) |
| Lens Material | Acrylic |
| Lens Width | 5-3/4 in (14.61 cm) |
| Mount Type | Stud Mount |
| Number Of Wires | 3 |
| Plug Side One | Packard Connector |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Square |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-002-022 |
| Volt | 12V |
| Weight | 1.6 lb (0.73 kg) |
| Width | 5-3/4 in (14.61 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 53722 |
| 14M052AM |
| 14M052M |
| 5016K |
| 84135016K |
| SIG5016K |
| TL5016K |
| TLD5016K |
| 8413-5016K |
| LIT5016K |
| TL 5016K |
| 5016KS1G |
| 52602GR0 |
| 53722GR0 |
| GRT53722 |
| 52602 |
