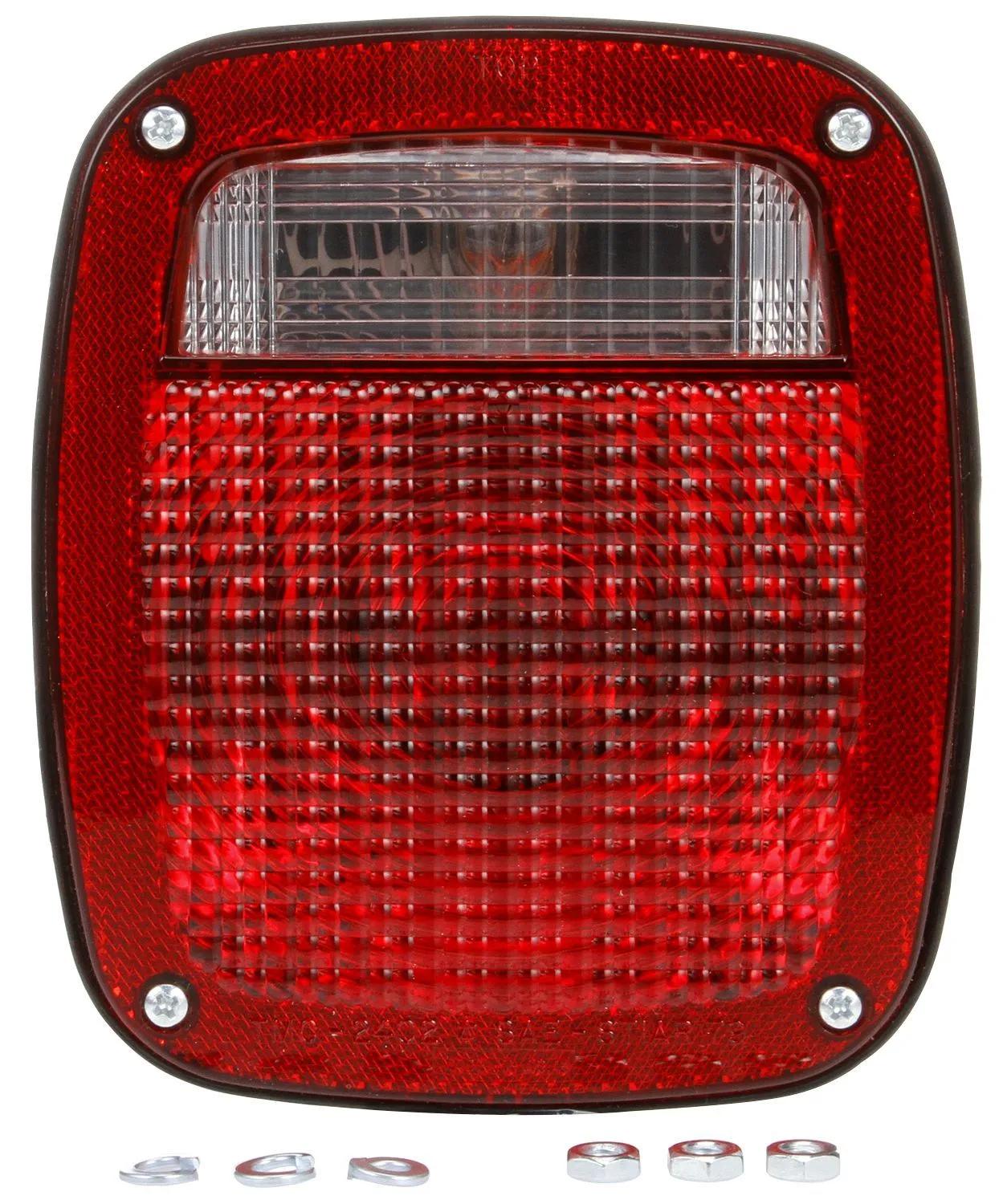

Combination Stop/Tail/Turn Light, Red & White
#TRL5316Y101
Product Overview
Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, RH, Combo Box Light, 3 Stud , License Light, Packard , 12V
Features & Benefits
- Navistar #1661281C91
- Navistar #1661282C91
- RH lamp popular replacement for GM/IH OE #56139474, #15565732
- Combination stop, tail, turn, back-up and reflex reflector
- Dual optic acrylic lens
- Permastat body provides impact resistance
Specifications
| Color | Blanc, Rouge |
| Common Size | 5 in (12.7 cm) |
| Contents | Lampe |
| Current Major | 2,1 amp |
| Current Minor | 0,59 amp |
| Depth | 2-3/4 in (6.99 cm) |
| Finish | Black |
| Fits Pigtail Part #(s) | 9469 |
| Height | 6-11/16 in (16.99 cm) |
| Kit (Y/N) | No |
| # Lamp Prongs | 5 |
| Lamp Type | Ampoule remplaçable |
| Left, Right or Both Side | Droit |
| Length | 6-3/4 in (17.15 cm) |
| Lens Height | 6-11/16 po (16,99 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 5-3/4 po (14,61 cm) |
| Mount Type | Stud Mount |
| Plug Side Two | No Plug |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Square |
| Single or Dual | Single |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 1 lb (0.45 kg) |
| Width | 5-3/4 in (14.61 cm) |
Interchanges & Equivalent parts:
| 15565732 |
| 1661281C91 |
| 1661282C91 |
| 56139474 |
| 46003807 |
| 53702 |
| 5316Y101 |
| 84135316Y101 |
| SIG5316Y101 |
| TLD5316Y101 |
| 80380R |
| TRU5316Y101 |
| 5316Y101S1G |
| 8413-5316Y101 |
| LIT5316Y101 |
| TL 5316Y101 |
| TL5316Y101 |
| GRT53702 |
| GRT53712 |
