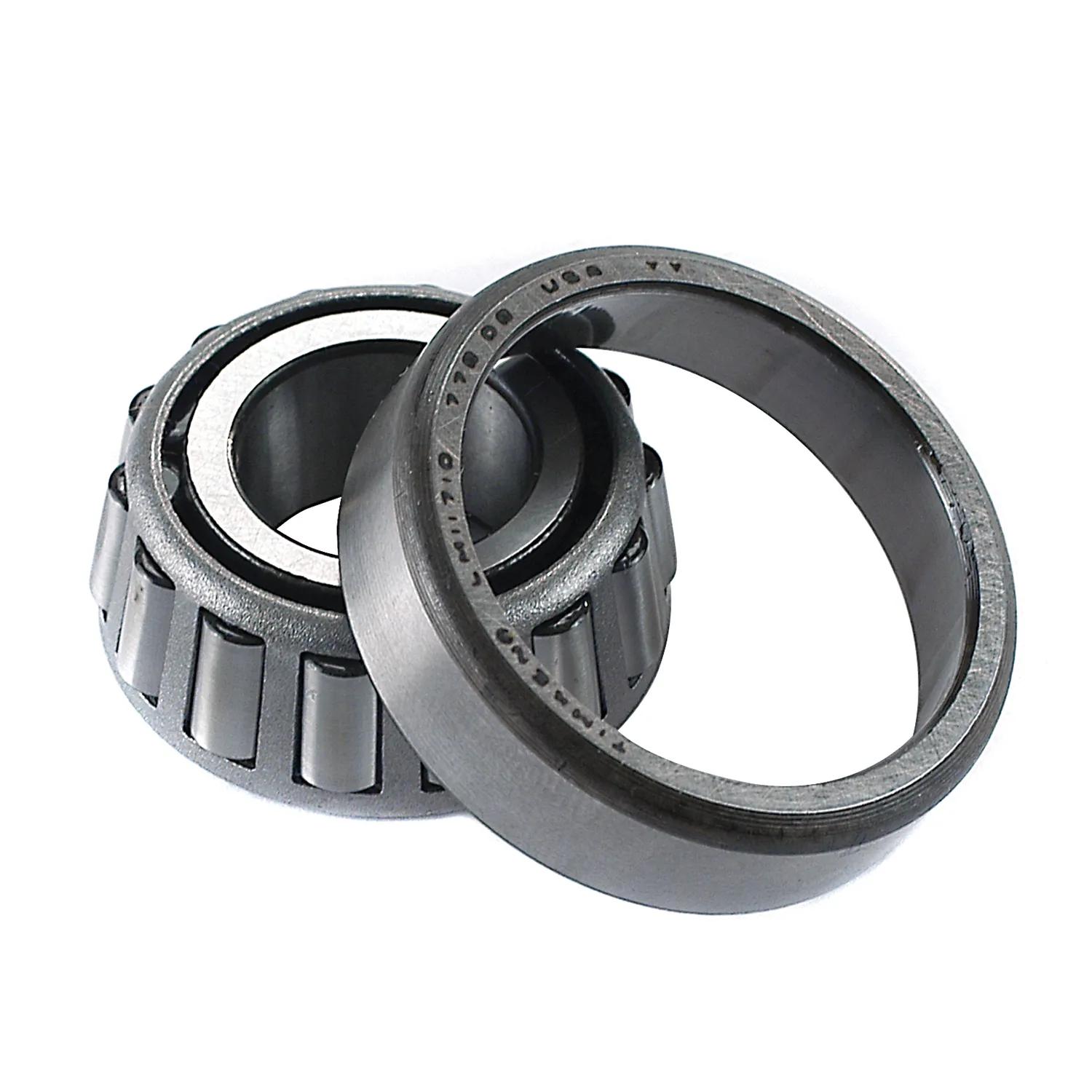

CONE
#TIMJM511945
Specifications
| Bearing Weight | 1.1 Kg (2.4 lb) |
| Bearing Width (T) | 28.000 mm (1.1024 in) |
| Bore (d) | 65.000 mm (2.5591 in) |
| Cage-Cone Frontface Clearance (Ab) | 0.8 mm (0.03 in) |
| Cage-Cone Backface Clearance (Aa) | 0.3 mm (0.01 in) |
| Cage Type | Stamped Steel |
| Cone Backface Backing Diameter (db) | 80.01 mm (3.15 in) |
| Cone Backface "To Clear" Radius (R) | 3.050 mm (0.12 in) |
| Cone Frontface Backing Diameter (da) | 73.91 mm (2.91 in) |
| Cone Width (B) | 30.000 mm (1.1811 in) |
| Cup Backface Backing Diameter (Db) | 99.06 mm (3.90 in) |
| Cup Backface ""To Clear"" Radius (r) | 2.54 mm (0.1 in) |
| Cup Frontface Backing Diameter (Da) | 105.40 mm (4.15 in) |
| Cup Outer Diameter (D) | 110.000 mm (4.3307 in) |
| Cup Part Number | JM511910 |
| Cup Width (C) | 22.500 mm (0.8858 in) |
| Design Units | Metric |
| Dynamic Radial Rating (1 million revolutions) (C1) | 167000 N (37600 lbf) |
| Dynamic Radial Rating (90 million revolutions) (C90) | 43300 N (9740 lbf) |
| Dynamic Thrust Rating (90 million revolutions) (Ca90) | 29800 N (6700 lbf) |
| Effective Center Location (a) | -3.3 mm (-0.13 in) |
| Factor (K) | 1.45 |
| Heat Generation Factor (Rib-Roller End) (G2) | 23.6 |
| Heat Generation Factor (Roller-Raceway) (G1 ) | 76.3 |
| Geometry Factor (Cg) | 0.11 |
| ISO Factor (e) | 0.4 |
| ISO Factor (Y) | 1.49 |
| Series | M511900 |
| Static Radial Rating (C0) | 195000 N (43900 lbf) |
