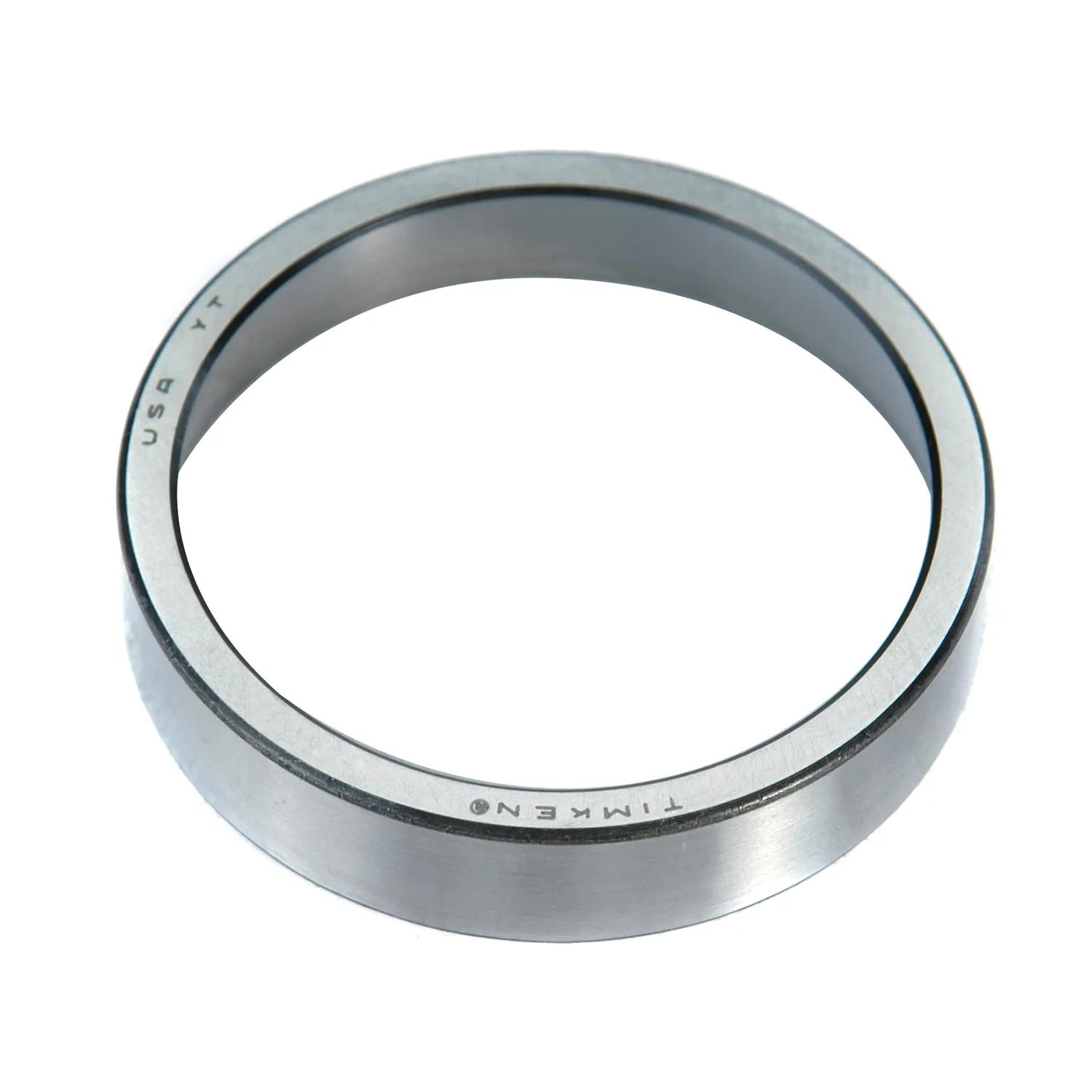

CUP
#TIM64700
Specifications
| Cup Backface Backing Diameter (Db) | 6.3 in (160.02 mm) |
| Cup Backface ""To Clear"" Radius (r) | 0.130 in (3.30 mm) |
| Cup Frontface Backing Diameter (Da) | 6.81 in (172 mm) |
| Cup Outer Diameter (D) | 7.0000 in (177.800 mm) |
| Cup Width (C) | 1.1875 in (30.163 mm) |
| Design Units | Imperial |
| Geometry Factor (Cg) | 28.000 mm (1.1024 in) |
| ISO Factor (Y) | 1.16 |
| ISO Factor (e) | 0.52 |
| Series | 64000 |
