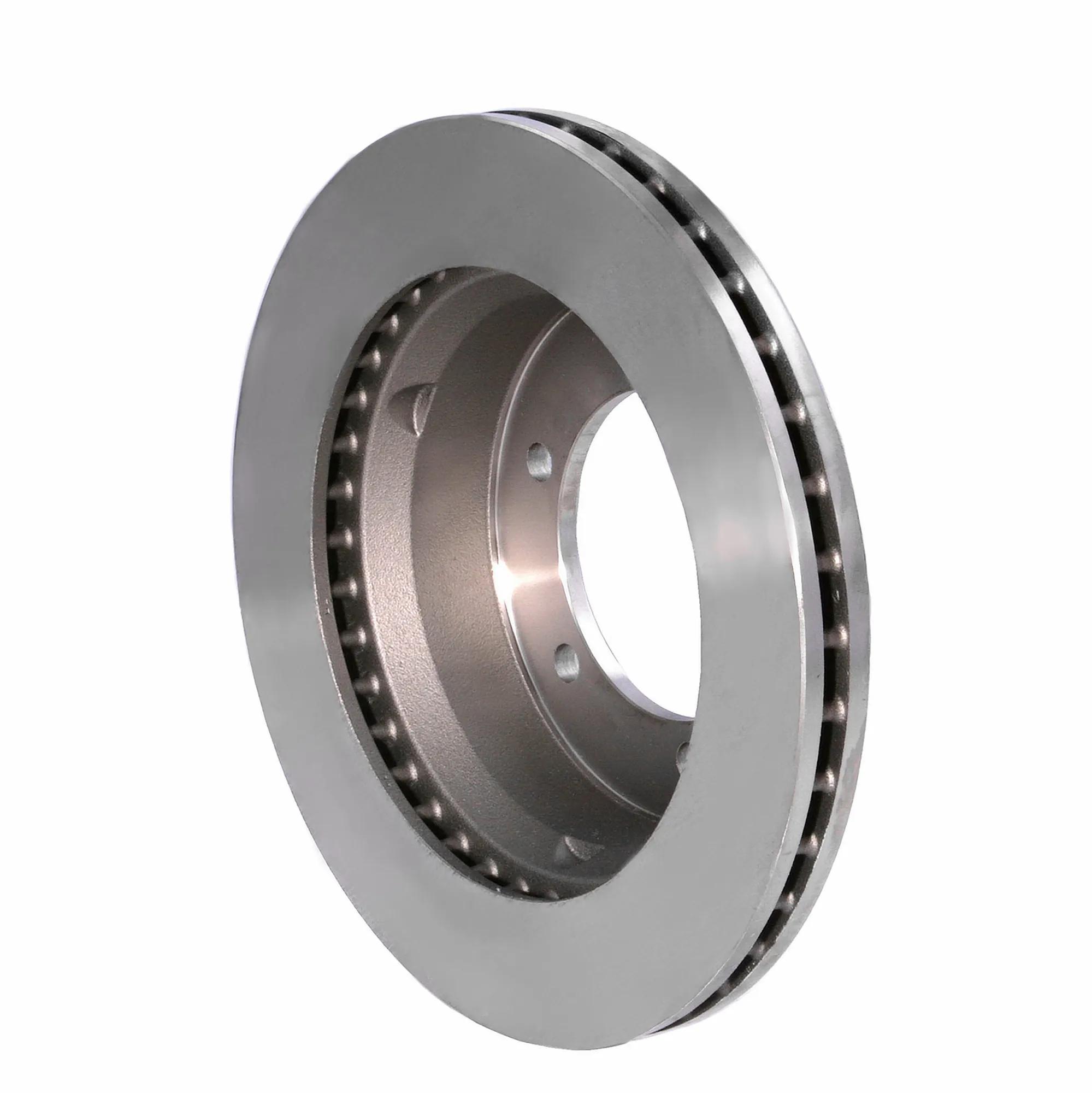

Brake Rotor, Dia: 14-3/4 in, Thi: 1-11/32 in, Hat Shaped
#WEB54104P
Product Overview
Webb Rotors Are Made From a High Grade of Cast iron for Long Service Life and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Bolt Circle Diameter | 6-3/4 in (17.15 cm) |
| Diameter | 14-3/4 in (37.47 cm) |
| Diameter Range | 14 to 14.99 in |
| Discard Thickness (in.) | 1-15/64 in (0.6 cm) |
| Hole Size | 21/32 in (1.67 cm) |
| New Disc Thickness | 1-11/32 in (3.4 cm) |
| Number of Bolt Holes | 6 |
| Overall Depth | 3-13/16 in (9.69 cm) |
| Pilot Diameter | 5-13/32 in (13.74 cm) |
| Type | Hat Shaped |
| Weight | 39 lb (17.69 kg) |
Interchanges & Equivalent parts:
| 12386682 |
| U19X60764 |
| X60764 |
| 23123486002 |
| E11310 |
| E9804 |
| 12080004 |
| 122688 |
| 141585 |
| 15515789 |
| 54104P |
| D6054A |
| 54104F |
| 23123486005 |
| E-9804 |
| E-11313 |
| 23122688002 |
| 23123495 |
| 23123486 |
| D5054 |
| 23123495002 |
| 23123495005 |
| 23122688022 |
| E-11310 |
| 54106P |
