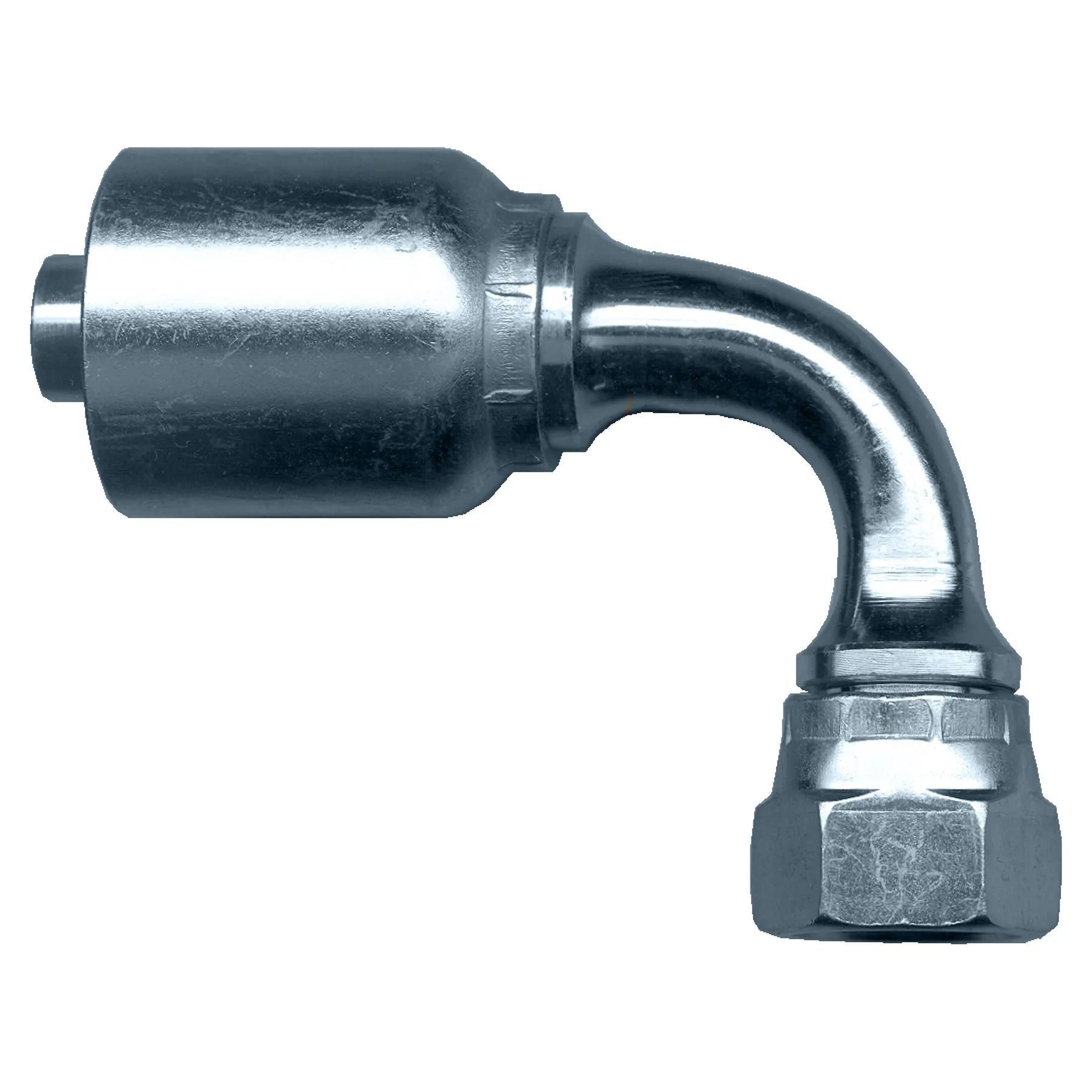

Fairview Elbow, 90 deg Angle, Female O-Ring Face Seal (Swivel) Connection, Steel, 1/4 in Nominal, 11/16-16 Thread, -40 to 250 °F
#FAISC959-46
Product Overview
Fairview's hydraulic bite-wire hose crimp ends are equivalent to the Parker 43 series (for use with SAE R1, R2, T1SN, T2SN, R17 and R16 hoses).Elbow, 90 deg Angle, Female O-Ring Face Seal (Swivel) Connection, Steel, 1/4 in Nominal, 11/16-16 Thread, -40 to 250 °F, For Use with S.A.E. 100R1-AT, 100R2-AT, T1SN, T2SN, 100R3, 100R4, 100R16 and 100R17 Hose
Specifications
| Angle | 90 deg |
| Application | Use with S.A.E. 100R1-AT, 100R2-AT, T1SN, T2SN, 100R3, 100R4, 100R16 and 100R17 Hose |
| Material | Steel |
| Connection Type | Female O-Ring Face Seal (Swivel) |
| Nominal Size | 1/4 in |
| Temperature Range | -40 to 250 °F |
| Manufacturer Part Number | SC959-46 |
| Product Category | Elbow |
