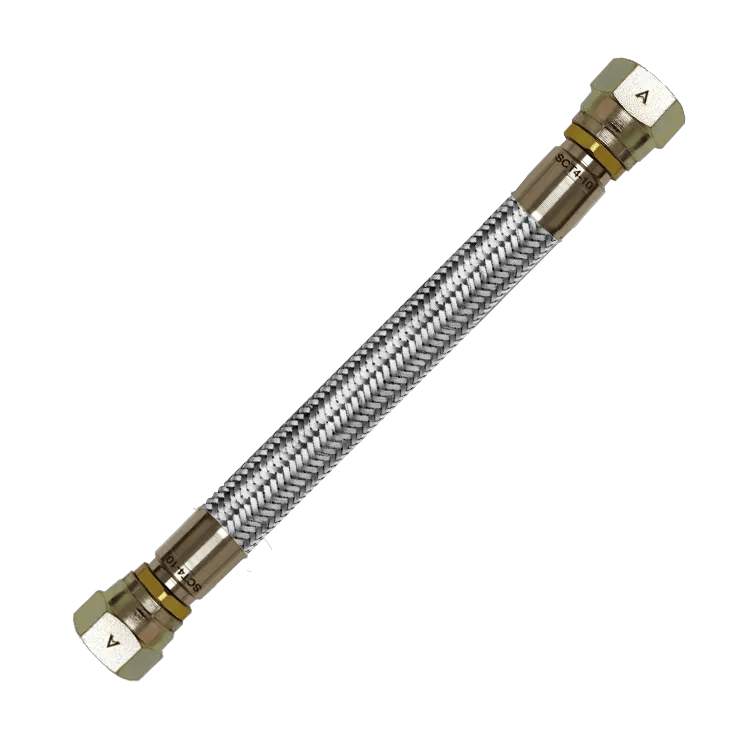

Fairview Hose Assembly, PTFE Tube, Braid, 304 SS Cover, 5/8 in ID, 5/8 in OD, 42 in Length, 1750 psi, -65 to 450 °F
#FAIHT10C42FS10FS10
Product Overview
Hose Assembly, Braid Reinforcement, 304 Stainless Steel Cover, PTFE Tube, 5 in Bend Radius, 7000 psi Burst Pressure, 5/8 in ID, 5/8 in OD, SAE 100R14, -65 to 450 °F, Working Pressure: 1750 psi, 42 in Length, For Use with Steam, Solvents, Fuels, Hydraulic Fluids, Most Chemicals and Acids
Specifications
| Application | Use with Steam, Solvents, Fuels, Hydraulic Fluids, Most Chemicals and Acids |
| Burst Pressure | 7000 psi |
| Cover Material | 304 Stainless Steel |
| Inside Diameter | 5/8 in |
| Length | 42 in |
| Outside Diameter | 5/8 in |
| Temperature Range | -65°F to 450°F (-53.9°C to 232.2°C) |
| Working Pressure | 1750 psi |
| Bend Radius | 5 in |
| Reinforcement Type | Braid |
| Standards | SAE 100R14 |
| Tube Material | PTFE |
| Manufacturer Part Number | HT10C42FS10FS10 |
| Product Category | Hose Assembly |
