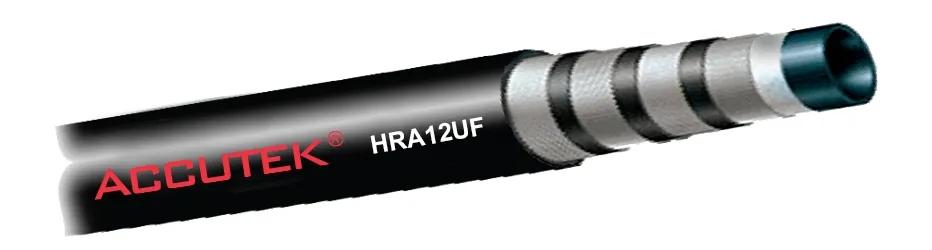

Fairview Hydraulic Hose, High Pressure, 4-Spiral, Wire Reinforcement, Black, Synthetic Rubber Cover, Synthetic Rubber Tube, 5.98 in Bend Radius
#FAIHRA12UF-16
Product Overview
Fairview’s 100R12 ultra flexible hose features four-spiral wire construction for constant high-pressure performance in tough environments.Hydraulic Hose, High Pressure, 4-Spiral, Wire Reinforcement, Black, Synthetic Rubber Cover, Synthetic Rubber Tube, 5.98 in Bend Radius, 16400 psi Burst Pressure, 1 in ID, 1.5 in OD, Standards: SAE 100R12/DIN EN856, -40 to 248 °F, Working Pressure: 4100 psi, 131 ft Length, For Hydraulic Systems With High Peak Pressures, Tight Bend Radii and Strenuous Operating Conditions
Features & Benefits
- For hydraulic systems with high peak pressures, tight bend radii and strenuous operating conditions
- Four spirals of high tensile steel wire
- Oil and heat-resistant synthetic rubber
- MSHA approved fire-resistant, abrasion, ozone, oil and weather resistant synthetic rubber
- SCT900MS bite-to-the-wire
- Ultra flexible constant pressure
- Four spiral wire
Specifications
| Application | Hydraulic Systems With High Peak Pressures, Tight Bend Radii and Strenuous Operating Conditions |
| Burst Pressure | 16400 psi |
| Color | Black |
| Cover Material | Synthetic Rubber |
| Inside Diameter | 1 in |
| Length | 131 ft |
| Outside Diameter | 1.5 in |
| Temperature Range | -40 to 248 °F |
| Type | High Pressure |
| Working Pressure | 4100 psi |
| Bend Radius | 5.98 in |
| Reinforcement Type | 4-Spiral, Wire |
| Standards | SAE 100R12/DIN EN856 |
| Tube Material | Synthetic Rubber |
| Manufacturer Part Number | HRA12UF-16 |
| Product Category | Hydraulic Hose |
