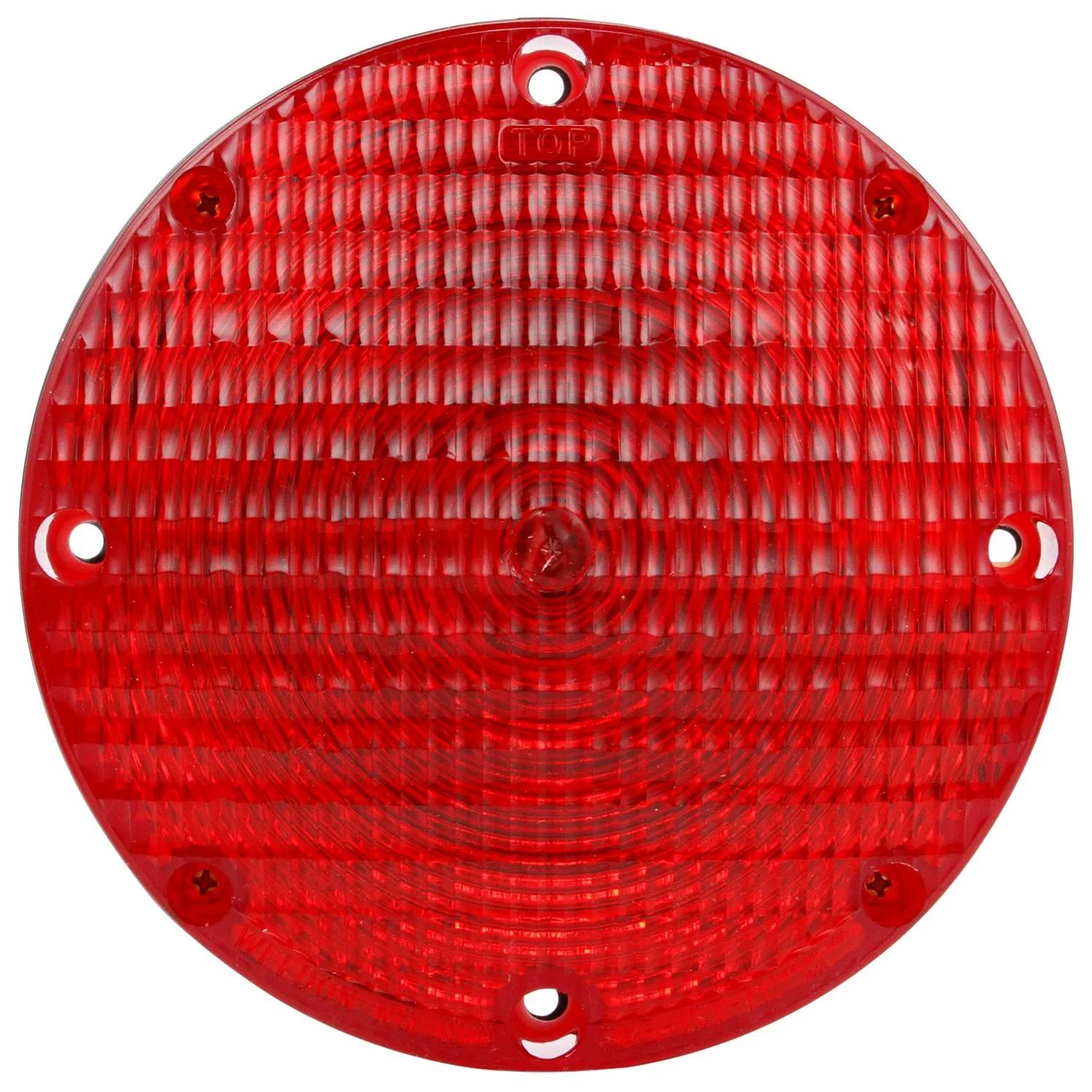

Stop/Tail/Turn Light, Red, Round
#TRL90327R
Product Overview
Bus, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Hardwired, Stripped end, 12V
Features & Benefits
- Popular lamp on buses and emergency vehicles
- Requires a 1"
- diameter hole, 1"
- deep
- Surface mounts with four bolts on a 625"
- bolt circle
Specifications
| Amps | 0.6 amp to 2.1 amp |
| Color | Red |
| Common Size | 7 in (17.78 cm) |
| Contents | Double Contact |
| Current Major | 2.1 amp |
| Current Minor | 0.59 amp |
| Depth | 2 in (5.08 cm) |
| Diamond Shell (Y/N) | Yes |
| Function | W, W2, I, S, T |
| Height | 7-1/8 in (18.11 cm) |
| Kit (Y/N) | No |
| Length | 6-1/4 in (15.88 cm) |
| Lens Material | Acrylic |
| Mount Type | Flush Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 90 Series |
| Shape | Round |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-006-000 |
| Volt | 12V |
| Width | 7-1/8 in (18.11 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 1010112010 |
| 424577 |
| 60008991 |
| 56072 |
| 841390327R |
| 7G7840 |
| 90327R |
| ST90RB |
| HT50603171 |
| TL90327R |
| TLD90327R |
| 6504 |
| TRU90327R |
| 1010 1120 10 |
| 644-2601 |
| 644-2655 |
| 65043 |
| 744 2668 |
| 8413-90327R |
| LIT90327R |
| ST-90RB |
| TL 90327R |
| TL 90327R |
| 50132 |
| 6442601 |
| 6442655 |
| 8232514000 |
| 7442668 |
| 1231159 |
| 744-2668 |
