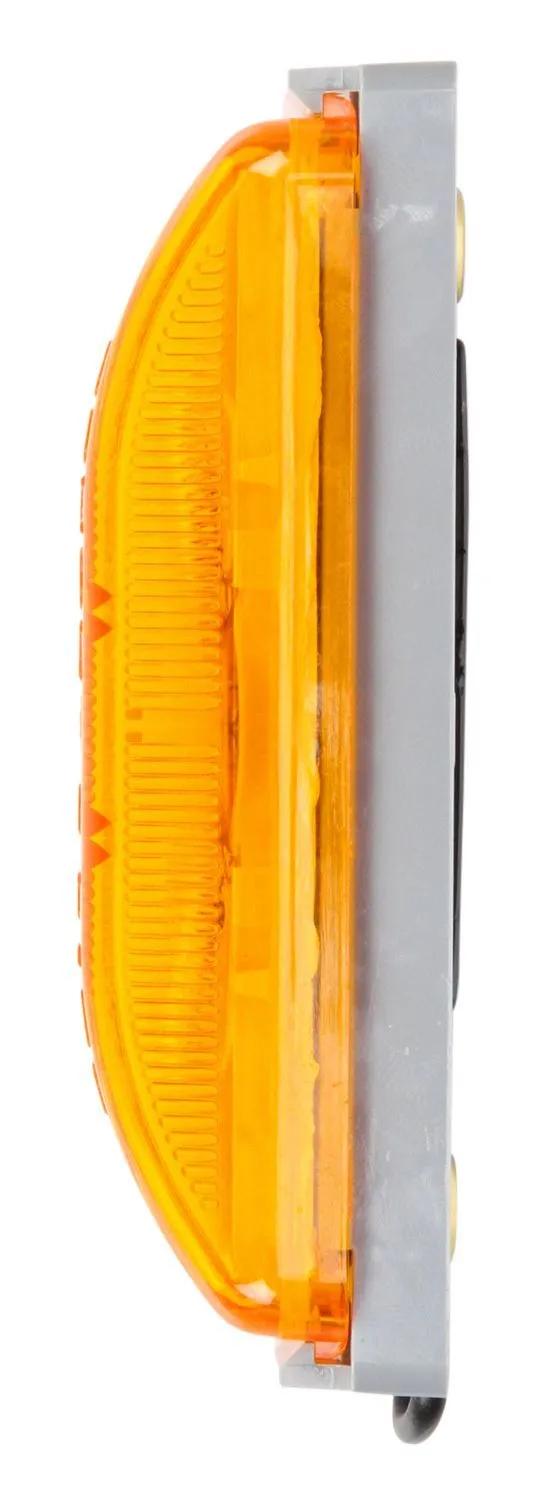

Feu de gabarit, ambre et jaune, rond
#TRL19002Y
Sommaire du produit
Série 19, montage sur socle, incandescent, jaune rectangulaire, 2 ampoules, feu de gabarit, PC, polycarbonate gris 2 vis, câblé, extrémité dénudée, 12 V, kit
Caractéristiques et avantages
- Features unique plug-in design for ease of installation
- Low-profile, extra-strength base
Spécifications
| Amps | 0.66 amp |
| Color | Amber |
| Common Size | 1 in (2.54 cm) |
| Contents | Gray Mount, Lamp, Plug |
| Current Major | 0.33 amp |
| Depth | 51/64 in (2.03 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2, P3, PC, PC2 |
| Height | 1-3/32 in (2.77 cm) |
| Housing Color | Gray |
| Kit (Y/N) | Yes |
| Length | 3-25/32 in (9.6 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Fiche #1 | PL-2 (Stripped End) |
| Fiche #2 | PL-2 (Stripped End) |
| Réfléchissant (O/N) | No |
| Séries | 19 Series |
| Forme | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technologie | Incandescent |
| Type | Marker Clearance Light |
| Code VMRS | 034-004-024 |
| Volt | 12V |
| Largeur | 4-3/32 in (10.39 cm) |
| Calibre de(s) fil(s) | 16 ga |
Interchanges et pièces équivalentes:
| 19002Y |
| 19002Y3 |
| TL19002Y |
| TL19002Y3 |
| TLD19002Y3 |
| TRL19200Y3 |
| TRU19002Y |
| 19001Y |
| 19002Y1 |
| 253-454 |
| 253454 |
| MNC253-454 |
| TRL19001Y |
| 19002Y-TL |
| 3946821 |
| 55620106 |
| 576-0175 |
| 800-250352A |
| 8413-19002Y |
| LIT19002Y |
| MC-67AB |
| TL 19002Y |
| TL 19002Y |
| TLD19002Y |
| 150KA |
| 154KA |
| 1812420864 |
| 1900A |
| 45093GR0 |
| 9560-3 |
| GRT46743 |
| KT2140A |
| LT19KY |
| TKL19002Y |
| 45093 |
| PA10022 |
| 450933 |
| 5760175 |
| 45093-3 |
