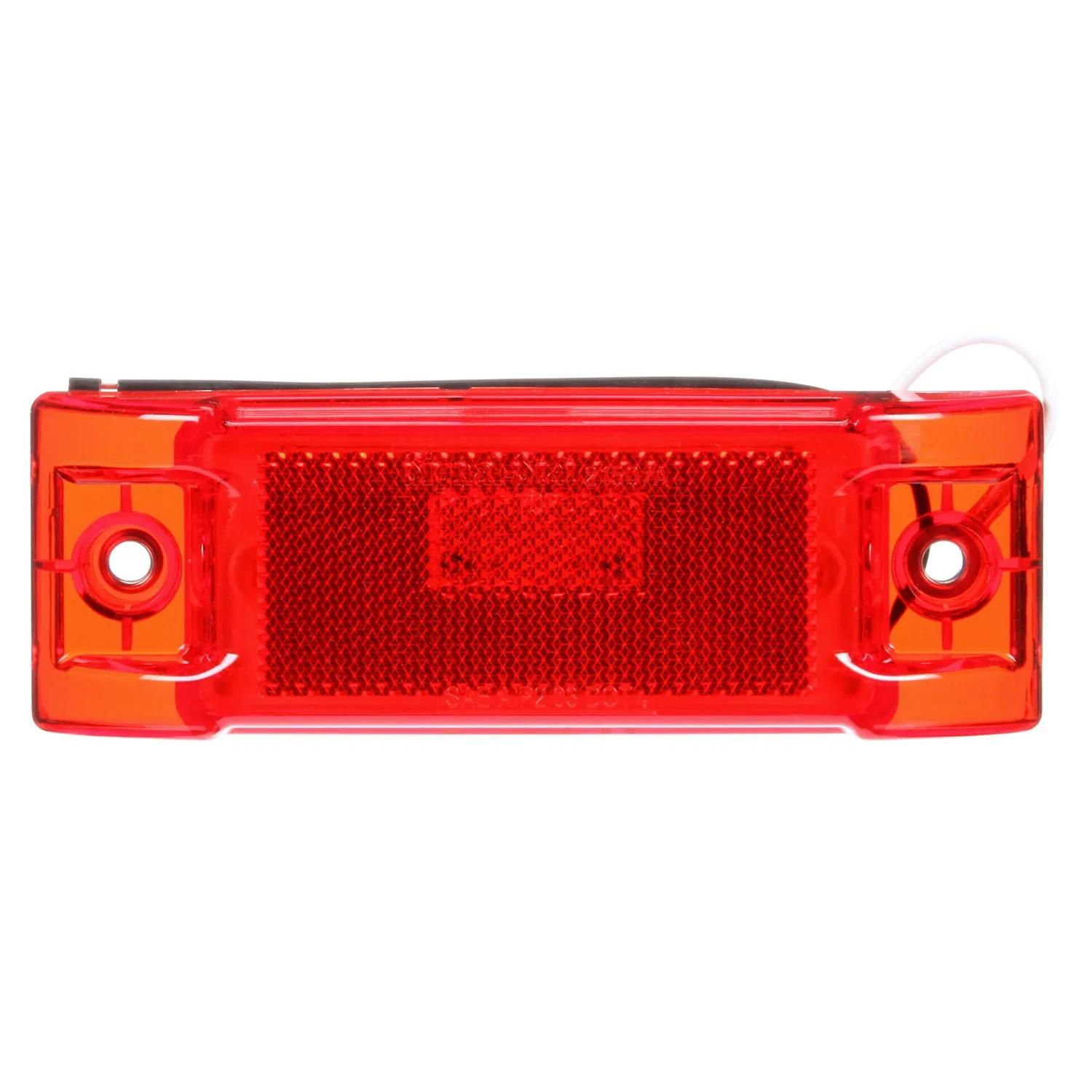

Marker Clearance Light, Red, Rectangular
#TRL2150
Product Overview
Signal-Stat, LED, Red Rectangular, 8 Diode, Marker Clearance Light, P2, 2 Screw, Reflectorized, Hardwired, Stripped End, 12V
Features & Benefits
- Reflectorized lens on colored lens versions
- Optional mounting and sealing gaskets available to improve seal between lamps
- Less susceptible to shock and vibration
Specifications
| Amps | 0.06 amp |
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.12 amp |
| Depth | 2-1/32 in (5.16 cm) |
| Diamond Shell (Y/N) | No |
| Function | A, P2, PC, |
| Height | 2 in (5.08 cm) |
| Housing Color | Red |
| Kit (Y/N) | No |
| Length | 6 in (15.24 cm) |
| Lens Material | Acrylic |
| Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | Yes |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 6 in (15.24 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 54012 |
| 62100R |
| 187R |
| 188R |
| D2150 |
| G2102 |
| M20330R |
| M20390R |
| M20395R |
| 20501 |
| 2150 |
| TL 2150 |
| 1842R |
| VSM2101 |
| VSM2105 |
| VSM2311 |
| TLD2150 |
| M188R |
| 21251R |
| HB9007R |
| TRU2150 |
| 2150S1G |
| 8413-2150 |
| LIT2150 |
| TL2150 |
| GRTG2102 |
| G21025 |
| PTS187R |
| PTSM188R |
| TKL2150 |
| TRL2150 |
| 571LD21R3 |
| G21023 |
| G2102-3 |
