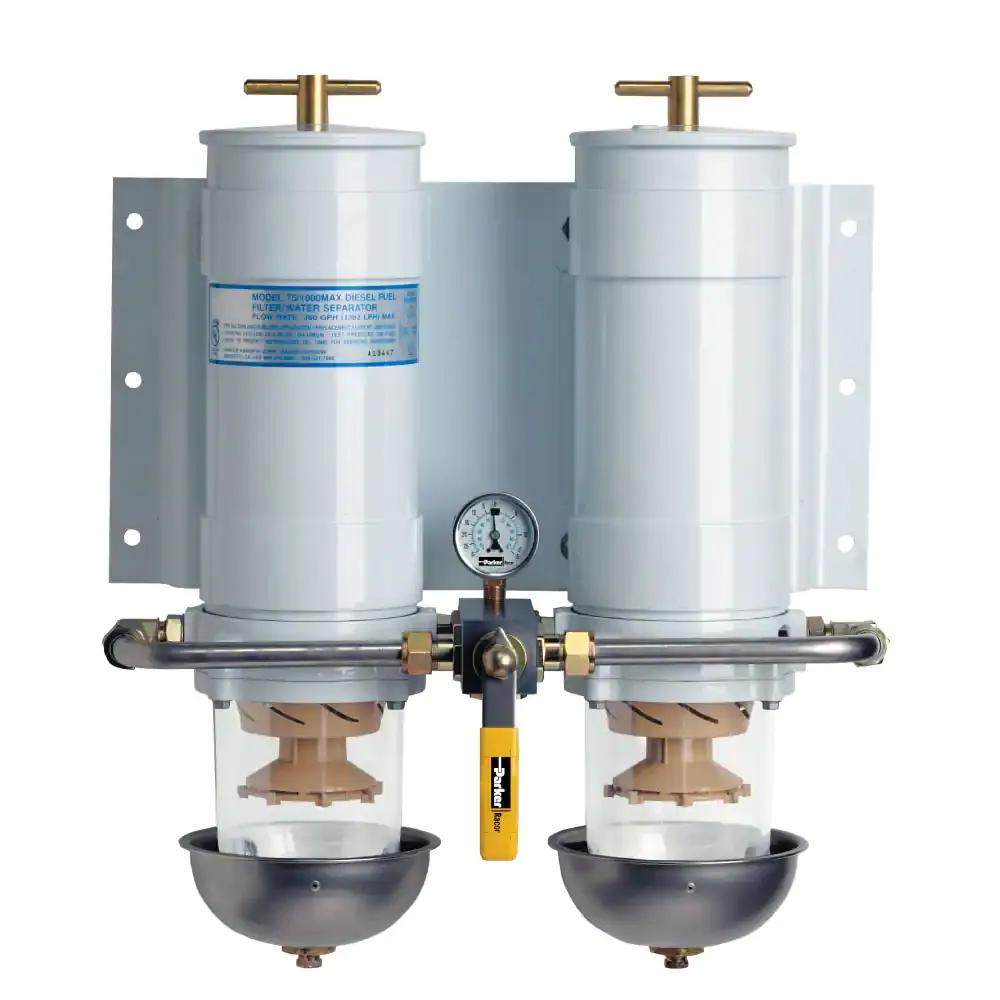

FGX-DUAL FF/WS ROTARY VALVE

#RAC751000MAX10

See More
See Less

Specifications


Bowl Type Standard
Depth 4.8 in
Efficiency Beta 200 (Micron) 11.5 micron
Efficiency Beta 20 (Micron) 7.2 micron
Efficiency Beta 75 (Micron) 9.5 micron
Media Brand Aquabloc
Micron Rating 10 micron
Mounting Bracket Included
Number Of Ports 2
Pump Type Electric Primer Pump Option: RKP1912/RKP1924
Rated Flow High Range 0.81 cfm (0.03 m³/min)
Service Clearance (in.) 10 in
Style Cartridge
Type Diesel Fuel / B20
End 1 Inside Diameter (in.) 1-1/32 in
End 2 Inside Diameter (in.) 2-27/64 in
Min. Burst Pressure 206.85 kPa
Opening Pressure 196.13 kPa
Rated Flow Mid Range 7 L/m
