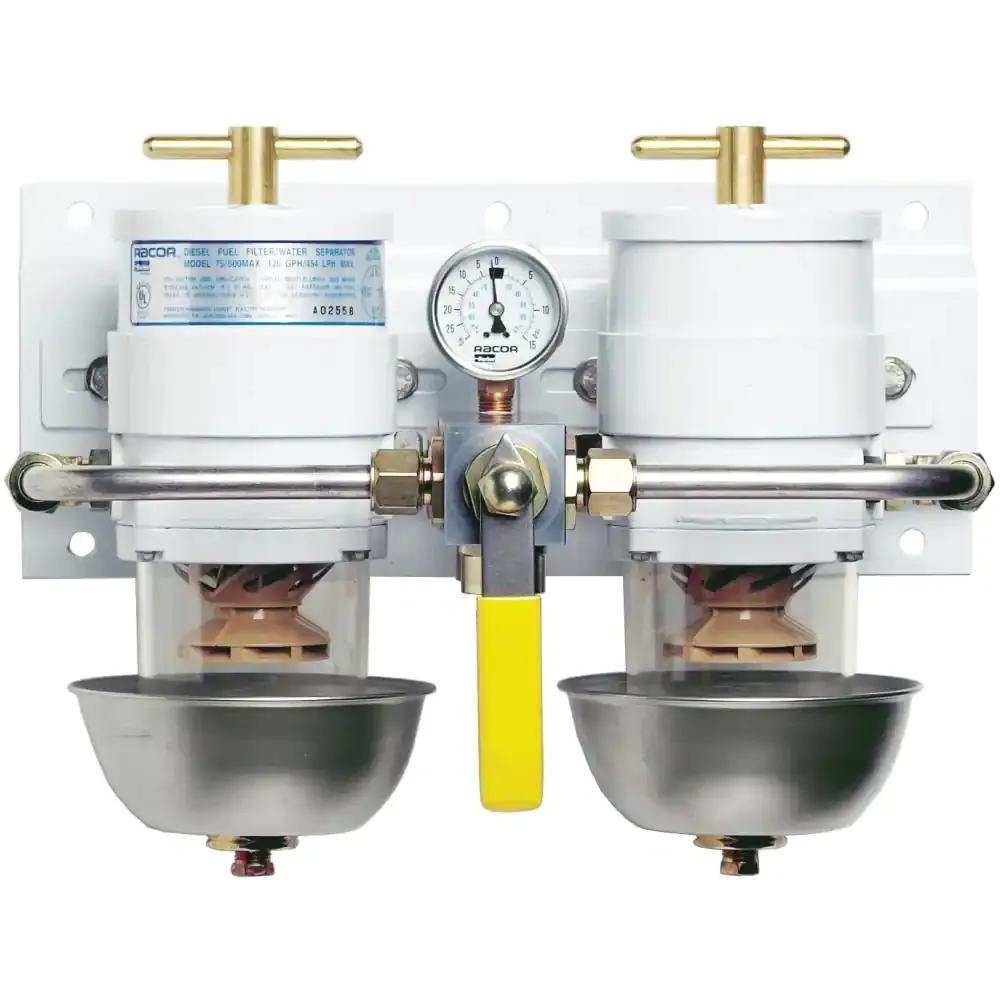

FGX-DUAL FF/WS ROTARY VALVE
#RAC75500MAX2
Specifications
| Bowl Type | Standard |
| Depth | 4.8 in |
| Efficiency Beta 200 (Micron) | 12 micron |
| Efficiency Beta 20 (Micron) | 7.5 micron |
| Efficiency Beta 75 (Micron) | 9.5 micron |
| Element Type | 30 Micron Aquabloc Spin-on |
| Maximum Operating Pressure | 30 psi / 207 kPa |
| Media Brand | Aquabloc |
| Micron Rating | 2 micron |
| Mounting | Bracket Included |
| Number Of Ports | 2 |
| Rated Flow High Range | 0.27 cfm (0.01 m³/min) |
| Replacement Element # | R90S = "2" Micron. R90T = 10 Micron. R90P = 30 Micron |
| Service Clearance (in.) | 4 in |
| Style | Cartridge |
| Temperature Range | -40 to 250°F / -40 to 121°C |
| Type | Diesel Fuel / B20 |
| UPC | 706672003591 |
| Opening Pressure | 100 kPa |
