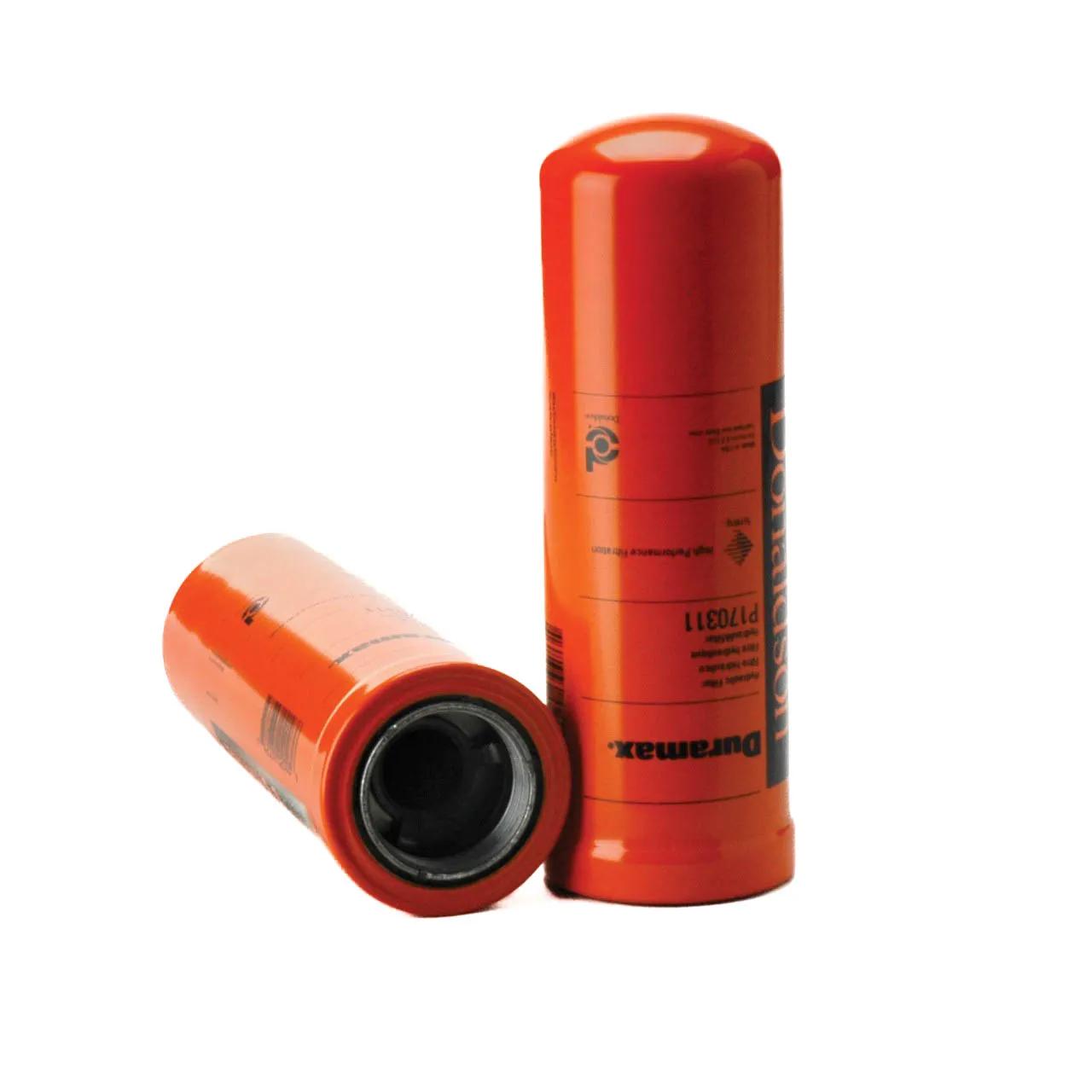

Donaldson Hydraulic Filter, Spin-On, Synthetic Media, 9.52 in Length, 3.13 in Outer Diameter, Thread 2-12 UN

#DONP170311

Product Overview

Hydraulic Filter, Synthetic Media, Filter Rating: 11 micron, 1.85 in Gasket I.D., 3.13 in Gasket O.D., 3.13 in OD, Spin-On, 2-12 UN Thread, 9.52 in L

Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.

Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.

Products and technology designed to consistently meet required specifications - and your expectations.

Duramax filters are the highest rated medium pressure spin-on filters available in the market.

A variety of mix and match system of heads, housings and media choices to meet your exact requirements.

Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits.

Improved performance including higher burst, greater fatigue strength and longer filter life.

Application	Hydrostatic charge side filtration, pilot circuits, power shift transmissions, kidney loop circuits
Diameter Range	3 to 3.99 in
Gasket ID	1.85 in (47 mm)
Gasket OD	3.13 in (79.6 mm)
Length	9-33/64 in
Outer Diameter	3.13 in
Series	HMK03
Length Range	9 to 9.99 in
Style	Spin-On
Thread Size	2-12 UN
Filter Rating	11 micron
Filter Type	Hydraulic
Thread Size	2-12 UN
Media Type	Synthetic
Product Category	Hydraulic Filter
