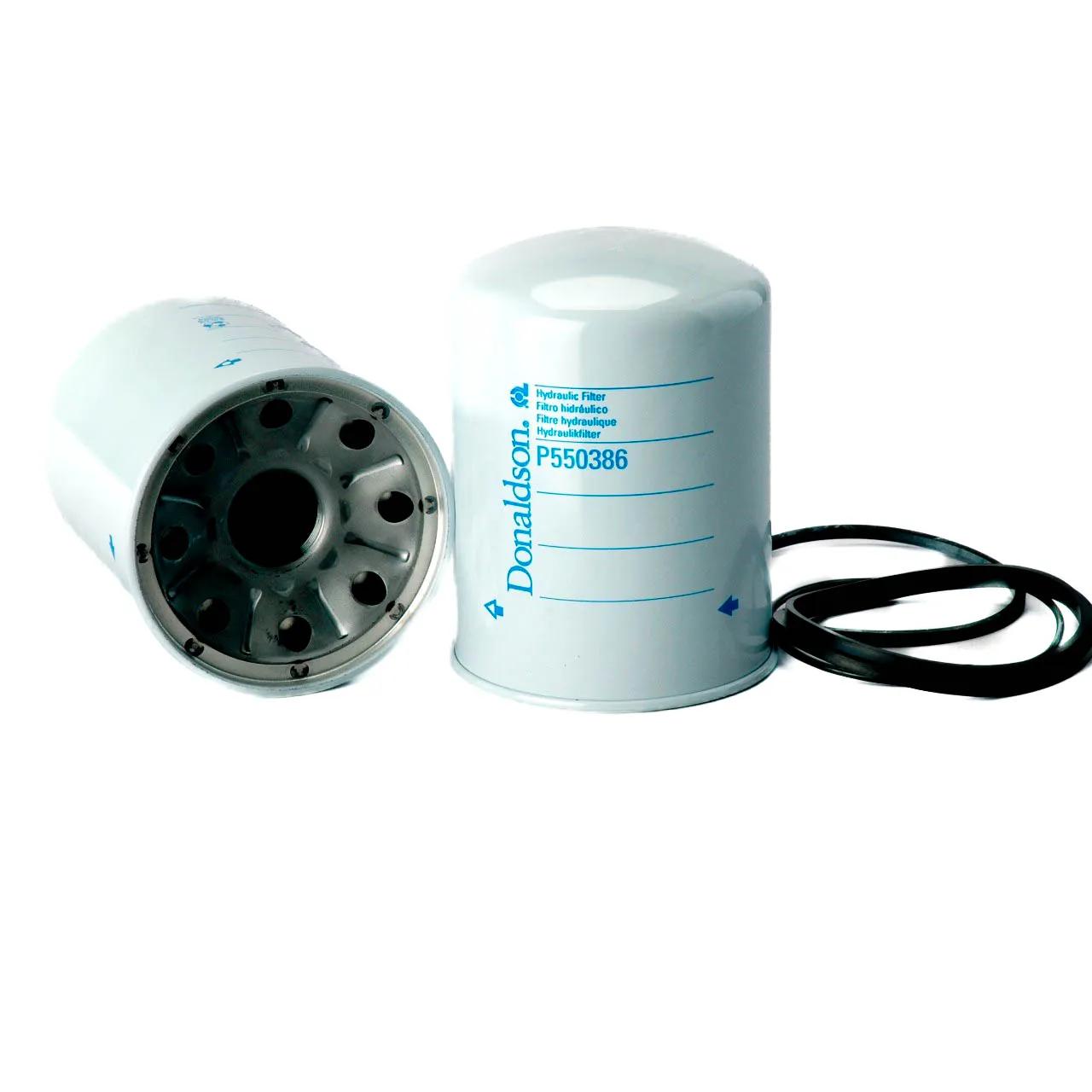

Donaldson Hydraulic Spin-On Filter, 6.67 in Length, 5 in Outer Diameter, 1 1/2-16 UN Thread, Cellulose Media
#DONP550386
Product Overview
Hydraulic Filter, Cellulose Media, Filter Rating: 5 micron, 4.76 in Gasket I.D., 5.04 in Gasket O.D., 5 in OD, Spin-On, 1-1/2-16 UN Thread, 7.19 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance hydraulic spin-on filters utilize Donaldson media technology which undergoes stringent design and testing setting the standard in filtration performance.
- Donaldson media formulations provide superior hydraulic system protection.
- Donaldson offers the largest selection of replacement hydraulic spin-on filters for greater contamination control.
- A variety of filters which meet and/or exceed OEM specifications.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 24 Micron |
| Efficiency Beta 2 | 5 Micron |
| Gasket ID | 4.76 in (121 mm) |
| Gasket OD | 5.04 in (128.1 mm) |
| Length | 6-43/64 in |
| Outer Diameter | 5 in |
| Series | W023. SP50/60. SP80/90S. P100/120 |
| Length Range | 6 to 6.99 in |
| Style | Spin-On |
| Thread Size | 1 1/2-16 UN |
| Filter Rating | 5 Micron |
| Thread Size | 1 1/2-16 UN |
| Media Type | Cellulose |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| BT2873 |
| RSE503F |
| RSE503N |
| RSE603F |
| 85746 |
| 85756 |
| 70157 |
| A150C03 |
| A750C03 |

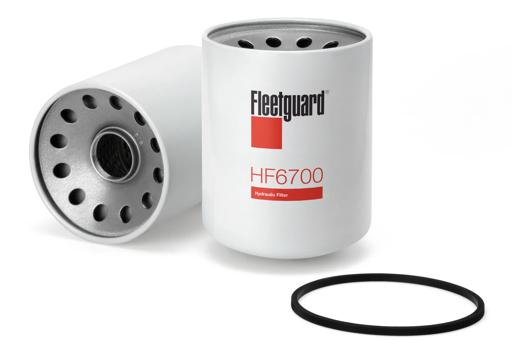

| HF6700 |
| HF6700CEL |
| HF6734 |
| HFR86700 |
| SH56750 |
| 0160NU010P |
| 248055 |
| 0160MA003P |
| MFE160032 |
| 2058114 |
| HEK4430155ASFG010 |
| LFH506803 |
| LFH8399 |
| MF0411119 |
| MF0131872 |
| CSG100P05A |
| HFIA04A10C8 |
| 1746 |
| 1756 |
| HC7500FKK4H |
| 92654103C |
| 926541 |
| 926971 |
| 941190Q |
| MBF10MP20 |
| M3 |
| 7M3 |
| SPH9724 |
| 15220403C |
| 575994 |
| 575994CEL |
| 737724CEL |
| 737724 |
| 737817 |
| OFRS60X3M |
| A04A10C8 |
| 51746 |
| 51756 |
| SE03 |
| SE3 |
| K23020 |
| 71329308 |
| 123085G2 |
| 3I1669 |
| 735000 |
| FEE5103 |
| FPE5003N |
| FPE503 |
| FPE503N |
| 750585 |
| BE75L43CB |
| 73540362 |
| GG17032672 |
| 160164 |
| 26838098 |
| 591567 |
| 503 |
| HC7500SDK4H |
| HC7500SDK4HCEL |
| HC7500SKK4H |
| HC7500SKK4HCEL |
| HC7500SUK4H |
| HC7500SUK4HCEL |
| HC7500FDK4H |
| HC7500SCK4H |
| F4E050BCB |
| F4E051BCB |
| HF550386 |
| 00248055 |
| HC7500SRK4HCEL |
| HC7500FCK4H |
| 2191-P550386 |
| 58905 |
| HP75L43CB |
| HC7500SCK4HCEL |
| HC7500FHK4H |
| HC7500SHK4HCEL |
| CSG100P05AP01 |
| DN P550386 |
| DN P550386 |
| 7500-4-3UM |
| 75 |
