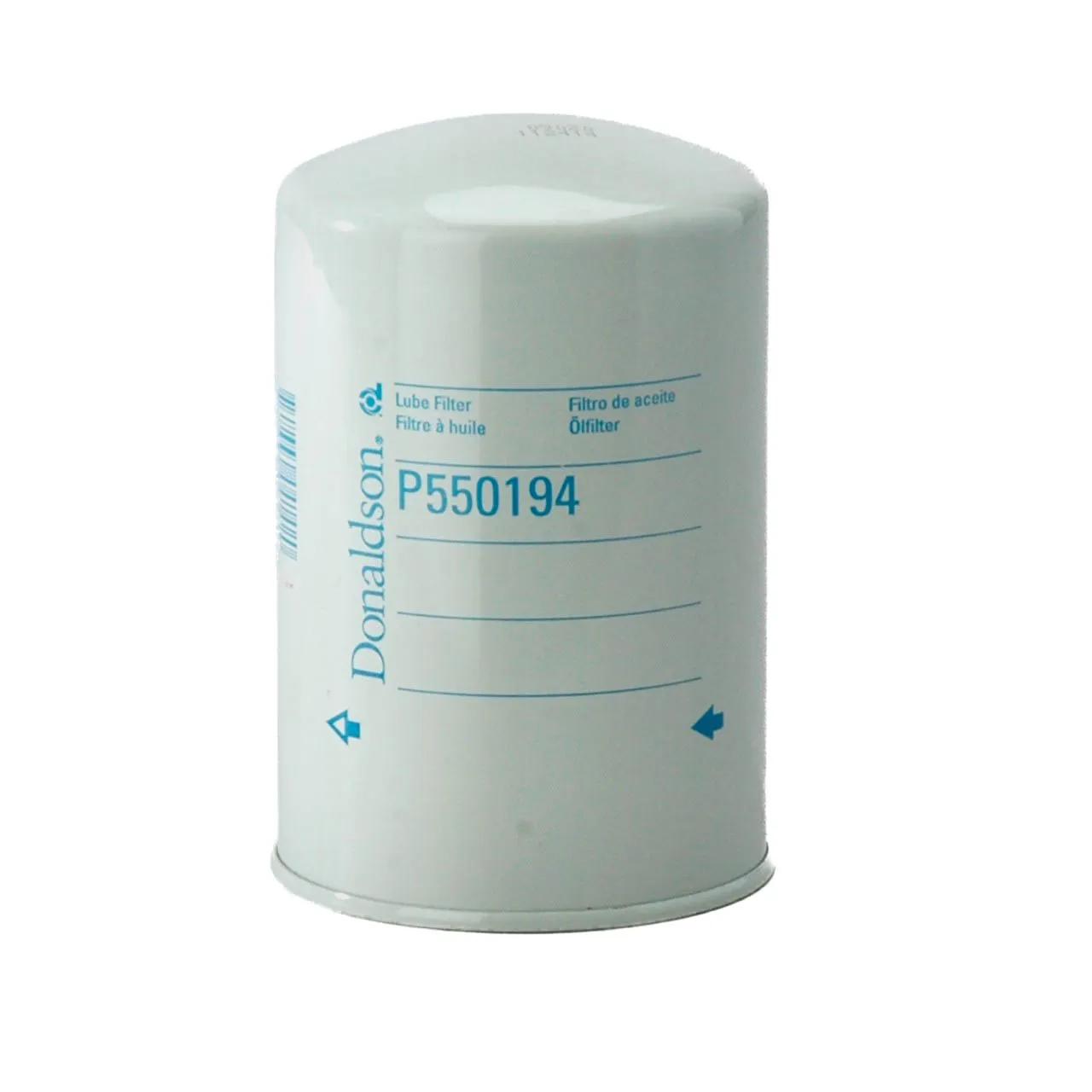

Engine Oil Filter, Spin-On L: 5,67 in, Thread : 5/8-18 UN , OD: 3,82 in
#DONP550194
Product Overview
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1 bar |
| Bypass Valve Setting LR | 0.8 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency 50% | 25 Micron |
| Efficiency 99% | 40 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 5.67 in (144.1 mm) |
| Outer Diameter | 3.82 in (97.03 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 5/8-18 UN |
| Type | Full-Flow |
| Vehicle Make | Wisconsin |
Interchanges & Equivalent parts:
| P550194 |
| 1110 |
| 51110 |
| CW110MP |
| BT248 |
| 85110 |
| FP38 |
| PH38 |
| LF727 |
| LFR8727 |
| PH21 |
| GH21 |
| GP19 |
| 425 |
| LF425 |
| SO1727 |
| L41 |
| LFP2252 |
| LFP2262 |
| LFP38 |
| FL6 |
| A248E |
| 6665985 |
| L30019 |
| PM228 |
| R19 |
| Z45 |
| SP4491 |
| PF15 |
| 727 |
| 92110 |
| 3I1620 |
| RV38 |
| RV38S3 |
| PLRV38 |
| PM330 |
| LSF5099 |
| 83 |
| WD83 |
| 155929 |
| 9576P550194 |
| P330 |
| 9074S |
| Z93 |
| 156071471A |
| 1132400890 |
| 11324008900 |
| 1132400891 |
| 1132400892 |
| 132400891 |
| 29065408200 |
| RV38S |
| 7014504 |
| L45 |
| 29137152 |
| 75127 |
| BC1066 |
| PL83 |
| SRPPF15 |
| SRPRV38 |
| P4 |
| 119190001 |
| 6162001 |
| LF550194 |
| WGL727 |
| 2191-P550194 |
| 3I-1620 |
| 6435736 |
| B7124 |
| DONP550194 |
| FIL1110 |
| H44739 |
| LF727FLG |
| RV38-S |
| RV38-S3 |
| WIX51110 |
| DN P550194 |
| DN P550194 |
| H370625M8 |
| P11636 |
