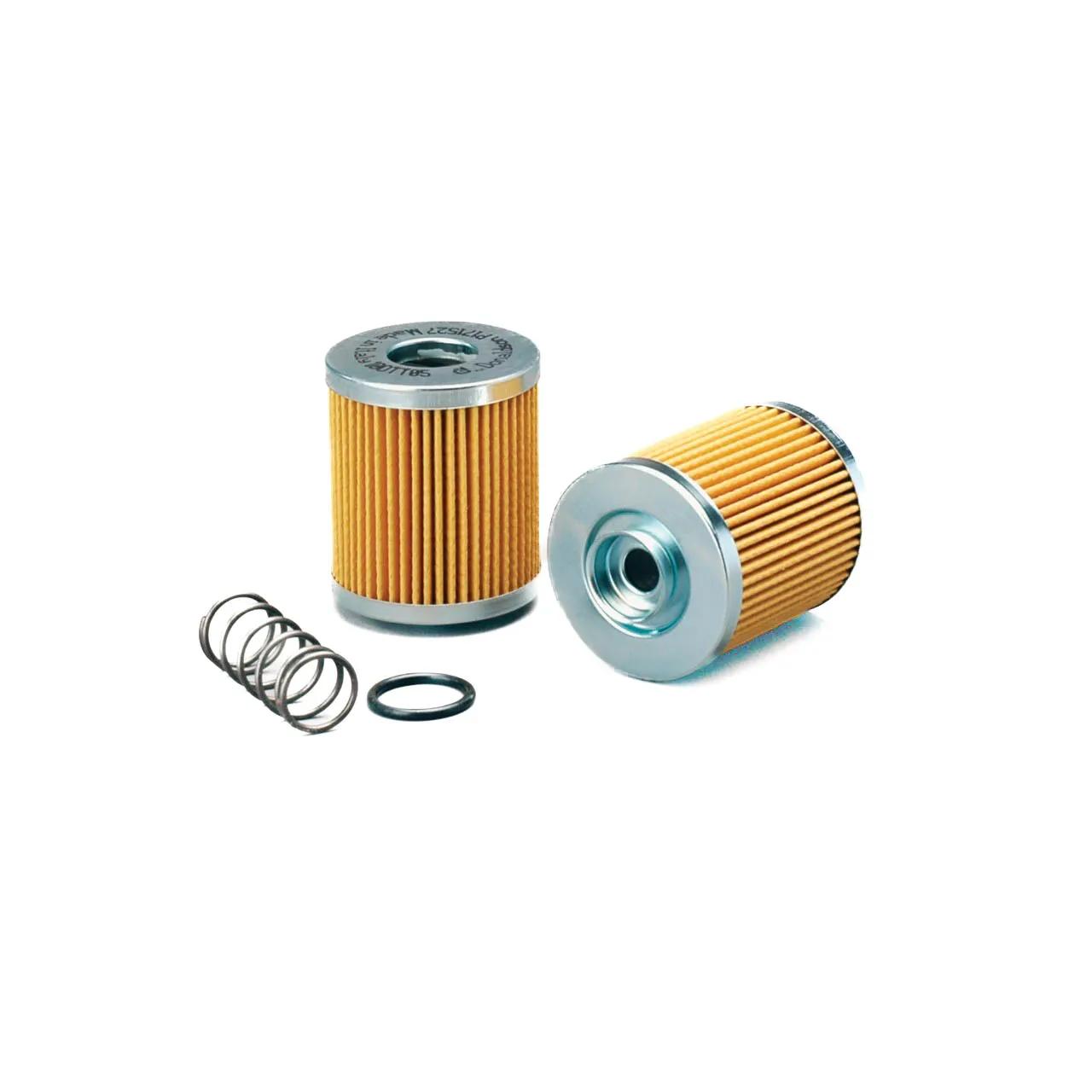

Hydraulic, Cartridge L: 3,21 in, OD: 2,76 in, ID: 1,14 in
#DONP171527
Product Overview
HYDRAULIC FILTER, CARTRIDGE
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1,5 bar |
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 36 Micron |
| Efficiency Beta 2 | 7 Micron |
| Inner Diameter | 1.14 in (29 mm) |
| Length | 3-13/64 in (8.13 cm) |
| Outer Diameter | 2-49/64 in (7.04 cm) |
| Series | FIK |
| Length Range | 3 to 3.99 in |
| Style | Cartridge |
| Vehicle Make | F.B.O. |
Interchanges & Equivalent parts:
| P171527 |
| HP15L310MB |
| K040515 |
| K040545 |
| K040563 |
| K040767 |
| K040870 |
| K040898 |
| K041014 |
| K041340 |
| CR601 |
| R120C10B |
| TIE12P101 |
| TIE16101 |
| TIE16P101 |
| F6P10A |
| 3TB10 |
| HY18214 |
| HID18237 |
| 8FL200293 |
| 1457431601 |
| D10060AN |
| DRE2A |
| DTE2A |
| Y05773805 |
| FPE0710N |
| 52627 |
| HHC03554 |
| HHC04069 |
| IF6013 |
| IF6026 |
| 7041319 |
| 140058 |
| RE15CD1 |
| CR111C10R |
| 1511014 |
| BWPT9180 |
| HF171527 |
| DN P171527 |
| DN P171527 |
| 2191-P171527 |
| CR60/1 |
| DONP171527 |
| HF35201 |
| PT9180 |
| R17C10CB |
| LH11010V |
