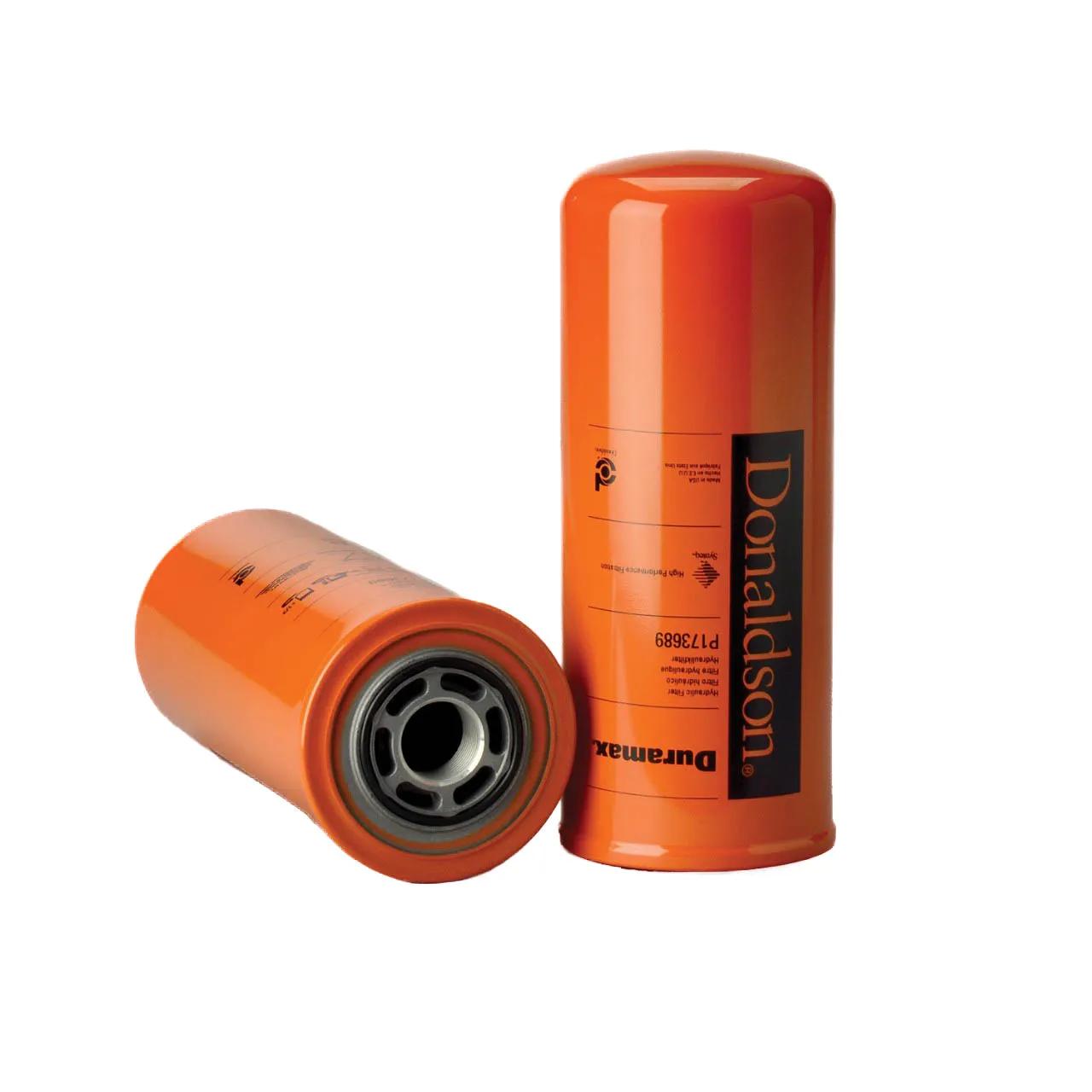

Hydraulic Filter, Spin-On L: 11,63 in, Thread : 1 3/8-12 UN , OD: 4,77 in
#DONP173689
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 11-5/8 in (29.54 cm) |
| Outer Diameter | 4-49/64 in (12.12 cm) |
| Length Range | 11 to 11.99 in |
| Style | Spin-On |
| Thread Size | 1 3/8-12 UN |
| Vehicle Make | Case/Case IH |
Interchanges & Equivalent parts:
| BT8320 |
| 85863 |
| P8464 |
| SH66689 |
| LFH8294 |
| 1863 |
| SPH12531 |
| 51863 |
| 863 |
| 86029161 |
| 85825356 |
| 86989733 |
| D149921 |
| 254343A1 |
| AT129775 |
| YZ502378 |
| MDH9543 |
| 84226272 |
| L86989733 |
| DN P173689 |
| DN P173689 |
| 1261818 |
| 2191-P173689 |
| DONP173689 |
| FIL1863 |
| HF35305 |
| HF35305FLG |
| NA |
