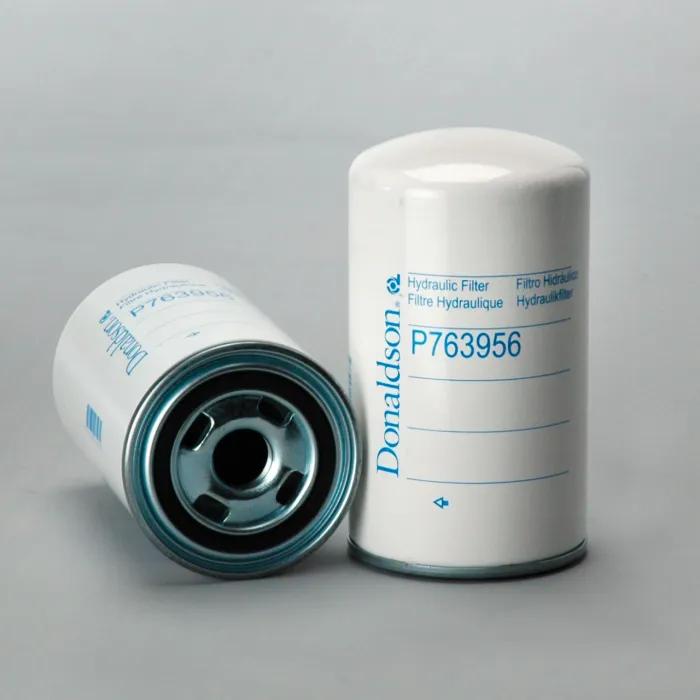

Hydraulic Filters, Spin-on L: 6,7 in, OD: 3,78 in
#DONP763956
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Oui |
| Bypass Valve Setting LR | 36,26 psi (2,5 bar) |
| Diameter Range | 3 à 3.99 po |
| Efficiency Beta 2 | 10 Micron |
| Gasket ID | 2,46 po (62,5 mm) |
| Gasket OD | 2,83 po (71,9 mm) |
| Length | 6-45/64 po (17,02 cm) |
| Media Brand | DT High-Performance |
| Outer Diameter | 3-25/32 po (9,6 cm) |
| Length Range | 6 à 6.99 po |
| Style | Visé |
| Thread Size | 1-12 |
Interchanges & Equivalent parts:
| P763956 |
| 7339 |
| 57339 |
| BT8512 |
| 84339 |
| 1211122522600 |
| 1211122522601 |
| 1211122522602 |
| 121112000000000000 |
| CSP06034P10A |

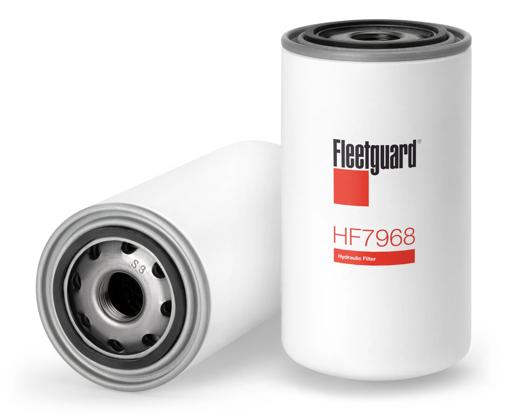

| HF7968 |
| H19WD01 |
| H19WD02 |
| SH62191 |
| WD950 |
| WD9502 |
| 5821213 |
| 402219303 |
| 1314200 |
| 1314201 |
| 6339940 |
| 5161310 |
| 7002281 |
| D45161300 |
| 9830617 |
| 282316 |
| 5612546 |
| 7004209 |
| 7211220 |
| 9830615 |
| 2754362M |
| 2754362M1 |
| 9624171001 |
| 22788506 |
| 0402219303 |
| 5773274 |
| SPH21005 |
| 721 12 20 |
| 0009830615 |
| 05773274 |
| LFH8596 |
