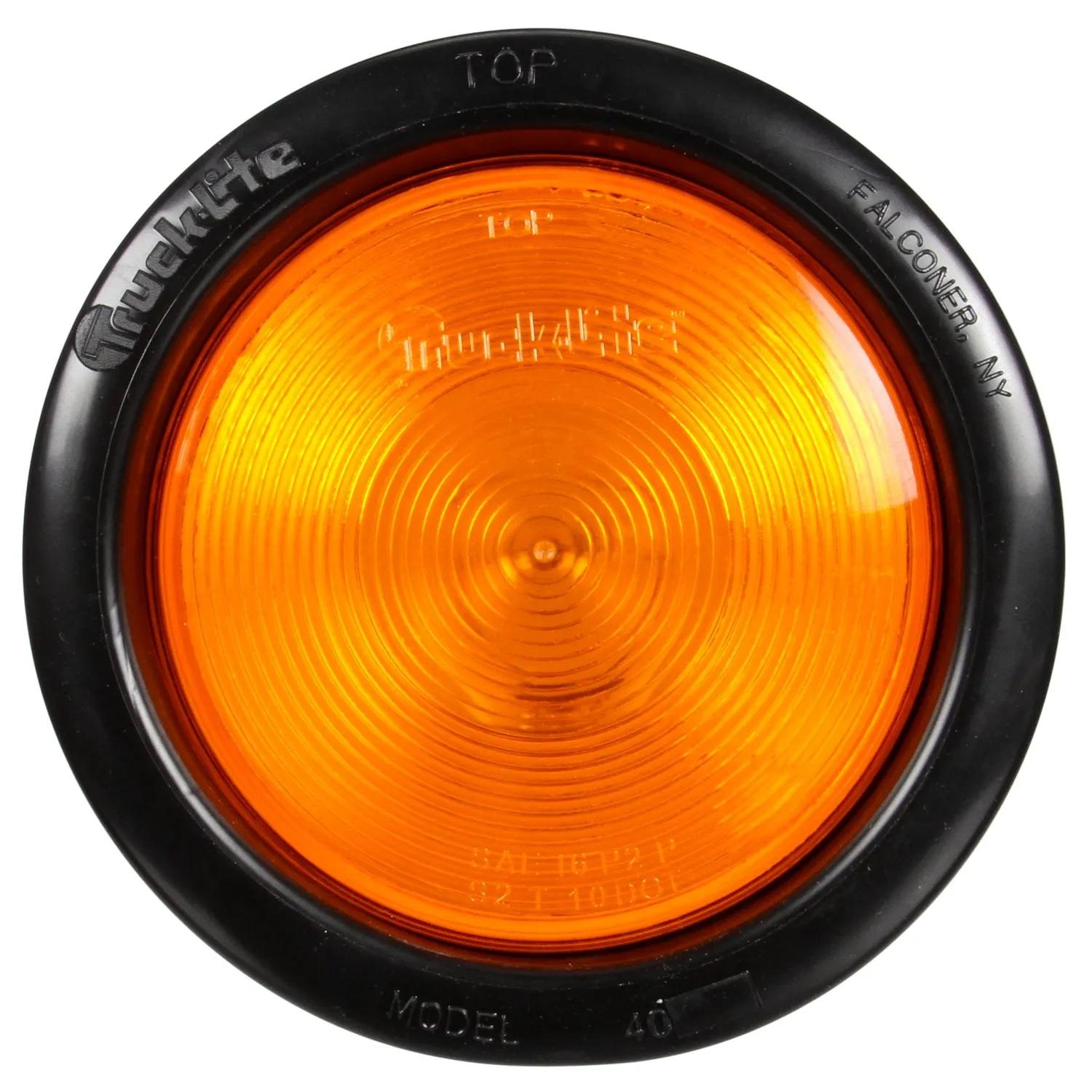

Front/Park/Turn, Amber & Yellow, Round
#TRL40302Y
Product Overview
40 Series, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, Black PVC, Grommet Mount, 12V, Socket Assembly, Stripped End/Ring Terminal, Kit
Features & Benefits
- Grommet kit includes lens, housing, socket assembly with bulb, grommet and ground screws
- Grommet features flush mounting in a 4-1/2" hole
- Upgrade to LED Lighting Systems using Truck-Lite 44 Series Product Line
Specifications
| Color | Amber |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.5 amp |
| Depth | 2-19/32 in (6.58 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-1/2 in (13.97 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 5-1/2 in (13.97 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | Socket Assembly |
| Plug Side Two | PL-2 (Stripped End) |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Front/Park/Turn Light |
| VMRS Code | 034-003-057 |
| Volt | 12V |
| Width | 5-1/2 in (13.97 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5119251002 |
| 2FW599 |
| 6328722 |
| 106835 |
| 1223865 |
| 88963 |
| 841340302Y |
| 705099 |
| 70509999 |
| 75089398 |
| 40302Y |
| 7583 |
| N14663 |
| HT50602487 |
| TL40302Y |
| TLD40302Y |
| JE1503011 |
| 40302Y3 |
| LIT40302Y |
| TL 40302Y |
| 4040A |
| 8233851000 |
| 83201 |
