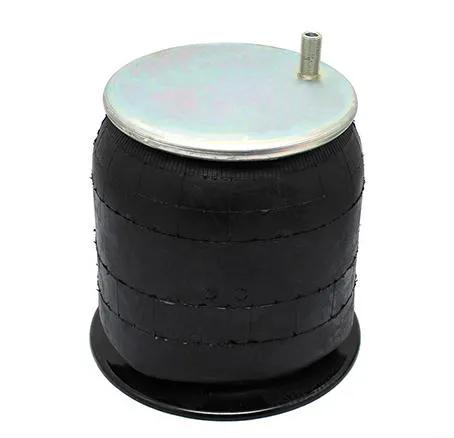

GOODYEAR AIR SPRING
#ARB1R12-366
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-8944, Firestone 9015, Firestone 9299, ContiTech 9 10-17.5 P 436, International C-20217
Specifications
| Air Spring Type | Rolling Lobe |
| Bellows | Automann 1DK23P, Firestone 1T15M-7.5, Goodwill 566243097, Contitech 9 10-17.5, Triangle 6364/69/91/6414 |
| Bottom Plate Diameter | 9-1/2 in (24.13 cm) |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Hole/Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 7-19/64 in (18.54 cm) |
| Contitech Bellow # | 9 10-17.5 |
| Extended Length | 21-13/64 in (53.85 cm) |
| Firestone Bellows Number | 1T15M-7.5 |
| Height | 14 in (35.56 cm) |
| Length | 10 in (25.4 cm) |
| Plate Type | Steel |
| Top Plate Diameter | 9 in (22.86 cm) |
| Top Plate Hole/Stud Qty | 1 |
| Triangle Bellows Number | 6364/69/91/6414 |
| Type | Rolling Lobe Air Springs |
| Weight | 22.5 lb (10.2 kg) |
| Width | 10 in (25.4 cm) |
Interchanges & Equivalent parts:
| 1R12-366 |
| 8944 |
| AB8944 |
| S20217 |
| W013588944 |
| 9299 |
| S20716 |
| W013589299 |
| CON77301 |
