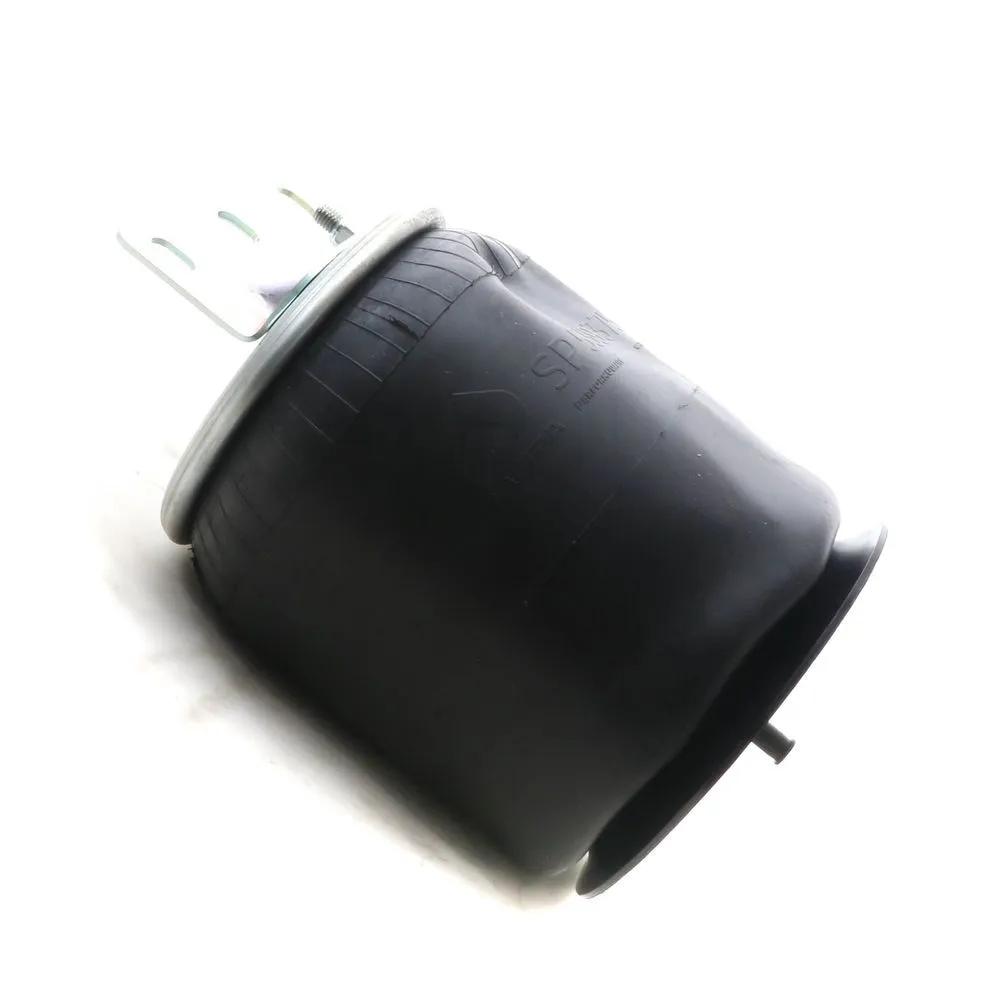

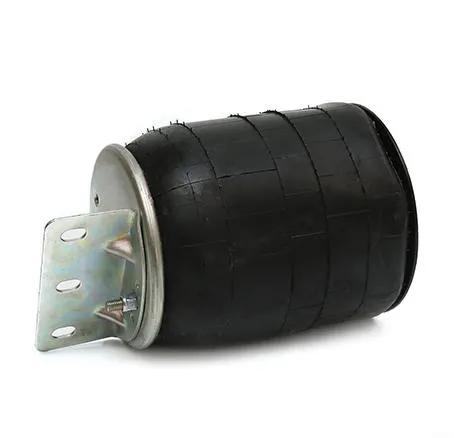

GOODYEAR AIR SPRING
#ARB1R12-404
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-9375, ContiTech 9 10-18.5 P 451, Fleetride 1R12-1063, International 50899-1, International 50899-2, Mack 57QL414M, Mack 364SQ27
Specifications
| Air Spring Type | Rolling Lobe |
| Bellows | Automann 1DK23M, Firestone 1T15M-8, Goodwill 566241012, Contitech 9 10-18.5, Triangle 6363/91 |
| Bottom Plate Diameter | 10 in (25.4 cm) |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Hole/Stud Qty | 1 |
| Bracket | Yes |
| Bumper | Yes |
| Compressed Length | 8-3/32 in (20.55 cm) |
| Contitech Bellow # | 9 10-18.5 |
| Extended Length | 22-1/2 in (57.15 cm) |
| Firestone Bellows Number | 1T15M-8 |
| Height | 12 in (30.48 cm) |
| Length | 16 in (40.64 cm) |
| Plate Type | Composite |
| Top Plate Diameter | 9 in (22.86 cm) |
| Top Plate Hole/Stud Qty | 2 |
| Triangle Bellows Number | 6363/91 |
| Type | Rolling Lobe Air Springs |
| Weight | 18.5 lb (8.39 kg) |
| Width | 13 in (33.02 cm) |
Interchanges & Equivalent parts:
| 1R12-404 |
| 50899002 |
| 9375 |
| AB9375 |
| W013589375 |
| 1R12404 |
