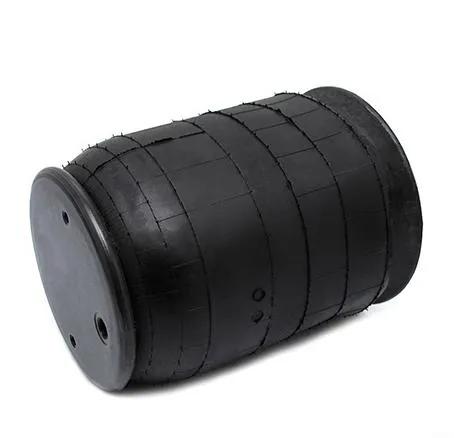

Goodyear Air Spring
#ARB1R12-568
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-8852, ContiTech 9 10-19 P 472, Fleetride 1r12-1058, Peterbilt 03-07887
Specifications
| Air Spring Type | Rolling Lobe |
| Bellows | Automann 1DK23L, Firestone 1T15M-9, Goodwill 566243066, Contitech 9 10-19, Triangle 6364/87 |
| Bottom Plate Diameter | 9-51/64 in (24.89 cm) |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Hole/Stud Qty | 1 |
| Bumper | No |
| Compressed Length | 6-45/64 in (17.02 cm) |
| Contitech Bellow # | 9 10-19 |
| Extended Length | 24-45/64 in (62.74 cm) |
| Firestone Bellows Number | 1T15M-9 |
| Height | 18 in (45.72 cm) |
| Length | 11 in (27.94 cm) |
| Plate Type | Composite |
| Top Plate Diameter | 9 in (22.86 cm) |
| Top Plate Hole/Stud Qty | 3 |
| Triangle Bellows Number | 6364/87 |
| Type | Rolling Lobe Air Springs |
| Weight | 16 lb (7.26 kg) |
| Width | 11 in (27.94 cm) |
Interchanges & Equivalent parts:
| 1R12-568 |
| 1R12568 |
| 8852 |
| W013588852 |
| CON79124 |
