Goodyear
GOODYEAR AIR SPRING
#ARB1R12-631
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Reyco 360258, Reyco 63-0125
Specifications

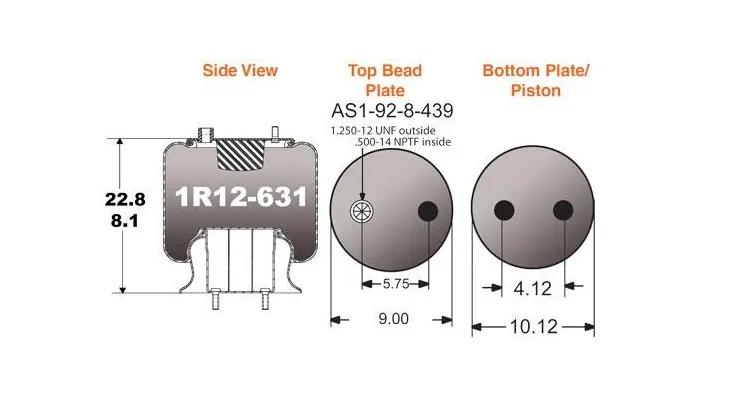

| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 5-3/4 in (14.61 cm) |
| Bellows | Goodwill 566243079 |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10-13/64 in (25.91 cm) |
| Bottom Plate Hole Stud Qty | 1 |
| Bumper | No |
| Compressed Length | 8-3/32 in (20.55 cm) |
| Goodyear Bellow # | 566243079 |
| Height | 16 in (40.64 cm) |
| Length | 12 in (30.48 cm) |
| Maximum Height | 22-51/64 in (57.91 cm) |
| Plate Type | Steel |
| Quantity | 1 |
| Top Plate Diameter | 9 in (22.86 cm) |
| Top Plate Hole Count | 2 |
| Type | Rolling Lobe Air Springs |
| Weight | 20.3 lb (9.21 kg) |
| Width | 12 in (30.48 cm) |
